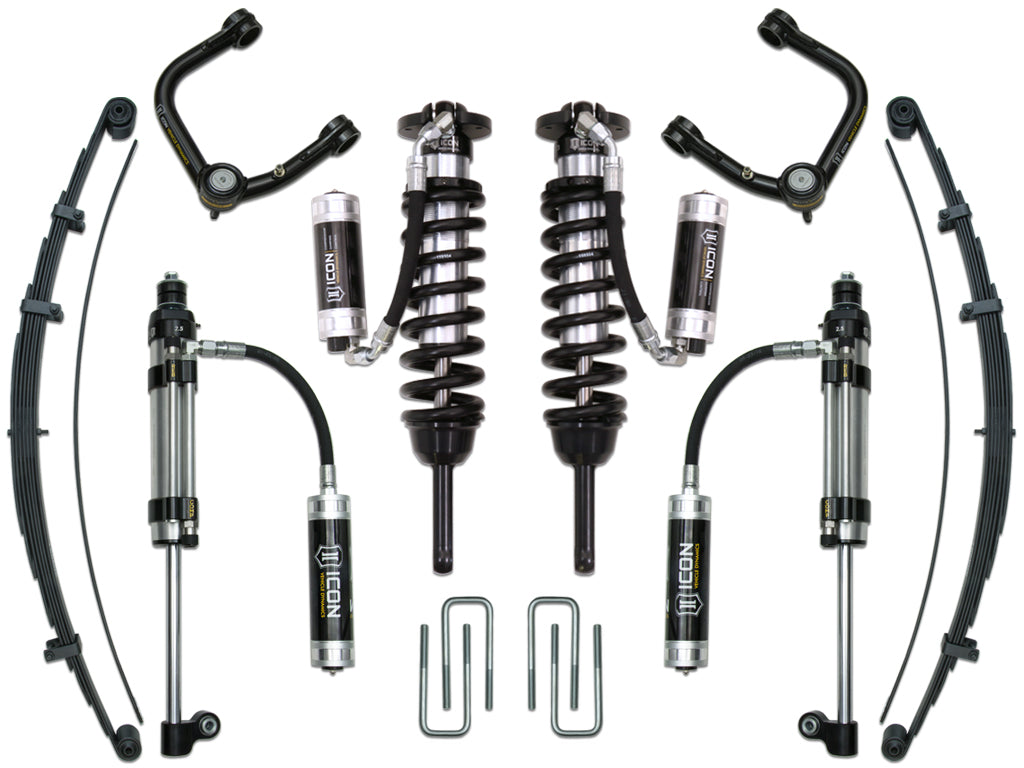

05-15 TACOMA 0-3.5"/ 16-UP 0-2.75" STAGE 10 SUSPENSION SYSTEM W TUBULAR UCA
Regular price
$6,218.84
Couldn't load pickup availability
This system features tubular steel upper control arms with ICON's patented Delta Joint. The Delta Joint is a heavy duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application - exposure to the elements. The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint. Metal on metal construction and a greasable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation. What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint.
- Increased wheel travel and ride quality over stock
- Omega Series two-tube bypass allows for 24 settings of compression and rebound damping adjustment
- FK Rod End bearings for extended longevity and minimal deflection
- Shocks are fully rebuildable and revalveable
- Bolt-on system means no cutting or welding necessary for install
- “ICON 1K” tested under rigorous off-road conditions to validate tune, performance, strength, and durability
- Vehicle-specific tuned front and rear shocks for superior shock damping and control
- Adjustable coilovers with CDCV provide up to 3.5" of front lift height on 2005 to 2015 models and up to 2.75" on 2016-up models
- Extended Travel coilovers matched with ICON UCA provides increased front droop travel
- 6061 aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
- 2.5 Aluminum Series RXT rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
- Multi-Rate Leaf Spring with 3 user-adjustable spring rates for unique vehicle configurations
- ICON RXT Omega Rear Shock with unique side-mounted lower eyelet allows for increased travel (up to 20%) while utilizing factory mounting location
Attributes:
- GTIN: 00840103416540
- Brand Name: ICON Vehicle Dynamics
- 1078: 650
- 2064: Steel
- 2371: Yes
- 30: Yes
- 3096: Black
- 3097: Yes
- 3390: Performance
- 5520: 3.5
- 6111: 8
- 7325: 2
- Add-On Part: 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
- Recommended Aftermarket Wheels: ICON Alloys - 17x8.5 with 4.75” Backspace / 0mm Offset
Extended Information:
- Country of Origin: US
- Emissions : Emissions Compliance Exempt
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1.0
- Package UOM: EA
- Dimension: 55.0000 x 40.0000 x 9.0000 inches
- Weight: 270.0000 lb
