20-UP JEEP GLADIATOR 2.5" STAGE 7 SUSPENSION SYSTEM (BILLET)

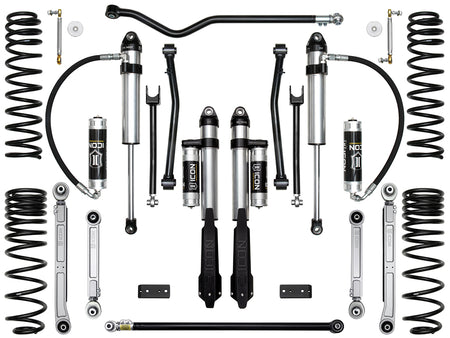

The Stage 7 ICON 2.5” Suspension System for the Jeep Gladiator is the ideal setup for drastically improving off-road performance and overall ride quality for the application that will see frequent heavy off-road use. This complete suspension system features ICON’s proven 2.5 Aluminum Series shocks, 2.5” lift dual-rate front coil springs, tubular steel fixed lower and adjustable upper front links, billet front sway bar links, a triple-rate rear coil spring kit, billet aluminum adjustable upper and lower rear links, a rear sway bar relocation kit, front and rear adjustable track bars, and all necessary hardware for install. This system provides an increase of over 30% front and 20% rear wheel travel and was designed around the use of a 35” tire. For those looking to run a 37” tire this can be achieved with the ICON Jeep JT Bump Stop Spacer Kit (Part #22071).

• 2.5" lift height
• Front and rear track bars ensure proper alignment and improved articulation
• Adjustable, billet aluminum front sway bar links
• 100% bolt-on system makes for an easy install
• “ICON 1K” tested under rigorous off-road conditions to validate tune, performance, strength, and durability
• Fits 35" tires (37" with extended bump stop spacer kit)
• 33% front, 23% rear increase in wheel travel
• Improves on and off-road ride quality over stock
• Front upper and lower links included for caster angle correction and improved front end articulation
• Rear billet upper and lower links improve rear end articulation and allow for on-vehicle pinion angle adjustment
• Dual rate front coil springs with lifetime guarantee against sagging/breakage
• Triple rate rear coil springs with ICON-engineered droop, ride, and overload rates
• 2.5 Aluminum Series shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish

Attributes:

• GTIN: 00840103415925
• Brand Name: ICON Vehicle Dynamics
• 2064: Steel
• 2371: Yes
• 30: Yes
• 3096: Black
• 3097: Yes
• 3390: Performance
• 5520: 2.5
• 5782: Open
• 5783: Open
• 7325: 2
• 7326: 2
• Add-On Part: 191014 - .25" COLLAR SPANNER PIN WRENCH
• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Tires: 35" x 12.50" (37" x 12.50" with optional bump stop spacer kit part # 22071)
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5 w/ 4.5" Backspace / -6mm Offset

Extended Information:

• Country of Origin: US
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 31.0000 x 13.0000 x 7.0000 inches
• Weight: 208.0000 lb
