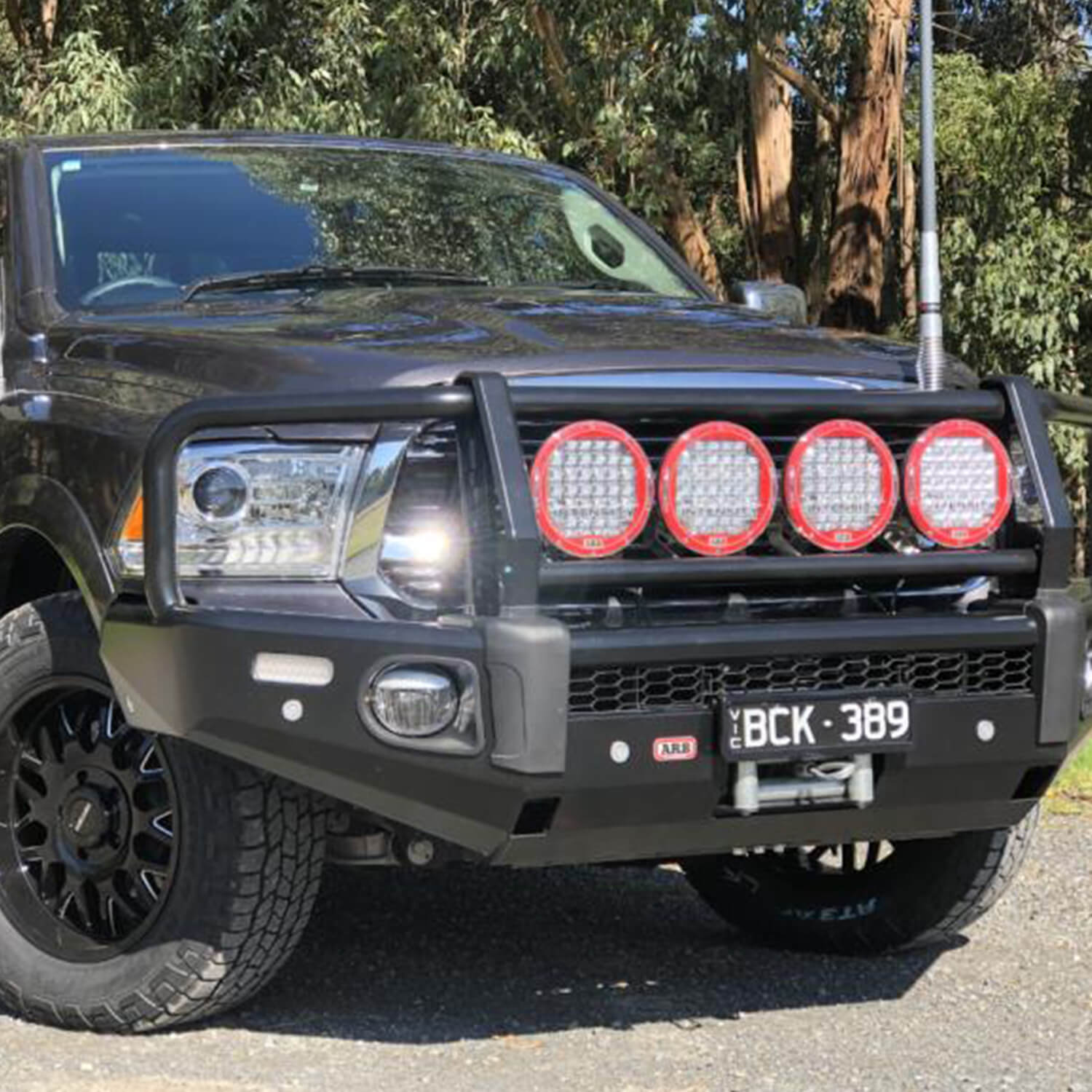

ARB 3452040 Summit Front Bumper with Bull Bar for Dodge Ram 1500 2009-2019

With the growing popularity of the Australian converted Dodge Ram 1500, ARB's engineers have designed and developed a Summit Winch Bumper to suit. Due to the size of the vehicle and its ability to tow up to 4.5 Tons (subject to vehicle specification) the Ram Summit Bumper has been designed to suit 12,000lb winches. To accommodate the larger winch sizes the lower pan of the Ram 1500 bar is a different profile to other Summit Bumpers and features additional bracing to achieve the higher winch loads. Testing has been conducted via FEA simulations, testing with ARB's 30T press and fitted bar, and winch testing with ARB's load cell to ensure that the bar assembly, chassis mounts and chassis perform as expected under winch load conditions.

• Registered Design Of Styling And Design Components
• Provision For OE Parking Sensors
• Finished In Matt Black Powder Coat
• Provision For Optional ARB Fog Lights
• Provision To Accommodate Arb Intensity Leds
• 30 mm. Radius On Wings And Center Section
• 3-Piece Grill and 2-Piece Buffers
• Press-Formed Cover Straps
• Durable Steel Construction For Maximum Protection
• Engineered Air Bag Compatible Mounting System
• Twin ARB Jack Or Hi-Lift Jack Points Located Beneath Each Buffer

Attributes:

• GTIN: 09332018069153
• Brand Name: ARB
• Add-On: N/A

Extended Information:

• Country of Origin: AU
• Emissions : CARB Eligible
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 30 x 80 x 36 inches
• Weight: 233 lb
