ICON 17-22 Ford F250/F350 2.5-3" Lift Stage 5 Coilover System W/ Leaf Springs

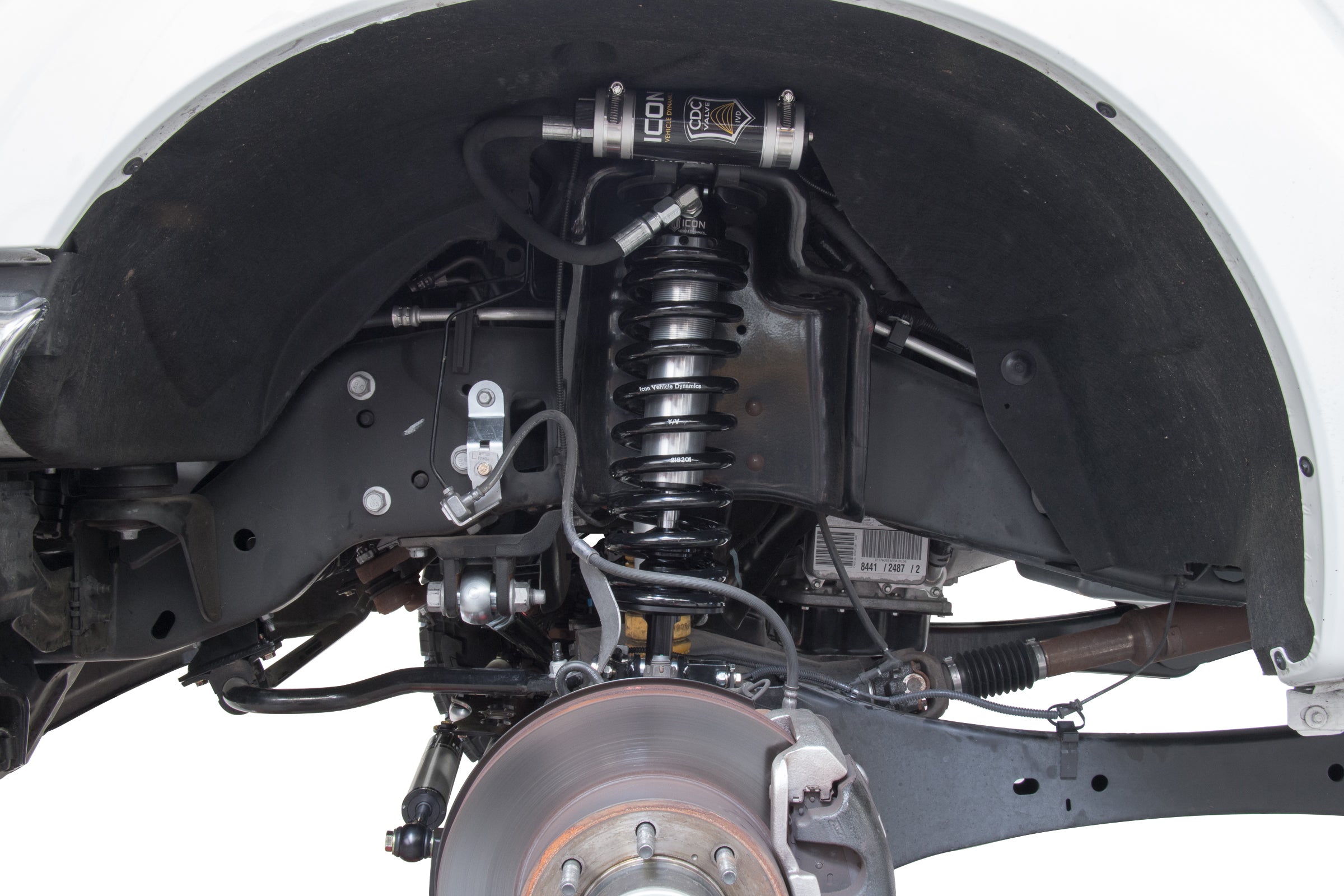

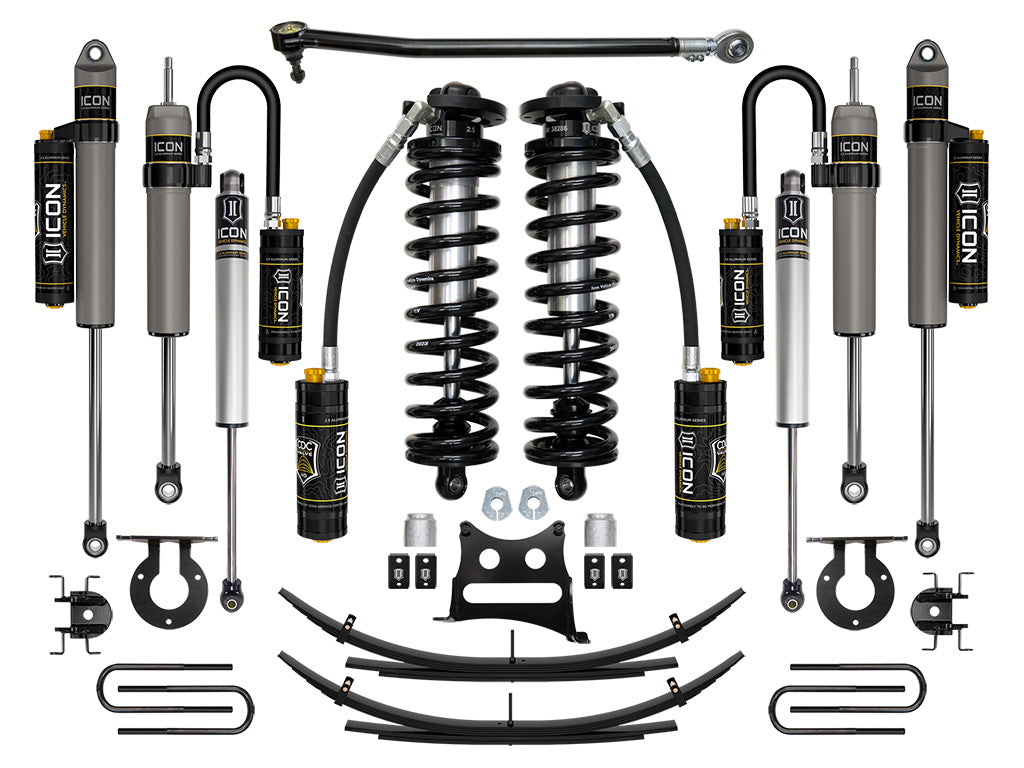

The ICON 2.5-3” coilover conversion suspension system is a great way to lift your 4WD 2017-2022 Ford F-250/F-350 Super Duty while improving ride quality and performance. This upgraded Stage 5 system is great for towing, rough construction site terrains, and country dirt roads all while keeping a smooth highway feel. Also included in this stage is ICON's CDC Valve front and rear shocks, for those desiring an easy way to tune the ride externally with 10 settings, from soft to hard. ICON's Stage 5 System is comprised of 2.5 Series CDCV remote reservoir coilovers that are adjustable from 2.5-3” or 3.25-3.75 of front lift over stock (depending on year model and option package), CDCV 2.5 Aluminum Series remote reservoir front secondary shocks for maximum front damping ability, adjustable front track bar with massive FK rod end, dual steering stabilizer kit with ICON 2.0 Aluminum Series stabilizers, alignment cams for adding caster, rear leaf spring expansion packs with blocks and U-bolts for a more compliant ride and reduced axle wrap, and ICON 2.5 Aluminum Series CDCV piggyback reservoir rear shocks. ICON 2.5 Series remote and piggyback reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. With the endless hours ICON has spent testing and tuning our suspension components and shocks as a complete package, you can rest assured you have the best suspension solution on the market.

• Ride height adjustable 2.5 Series remote reservoir coilovers provide 2.5-3" or 3.25-3.75" of front lift over stock
• Less body-roll than stock
• Lifetime guarantee that springs won’t sag or break
• No drive shaft modifications required
• Vehicle specific tuned remote reservoir 2.5 Aluminum Series secondary shocks for added shock damping
• Vehicle specific tuned piggyback reservoir 2.5 Aluminum Series rear shocks
• Front and rear shocks equipped with CDC Valves for 10 settings of compression damping adjustment, from soft to hard
• On-vehicle adjustable track bar for optimum front axle centering and minimal deflection
• Dual steering stabilizer kit for smooth wheel control while driving
• Application specific alignment Cams ensure proper caster alignment
• Leaf spring expansion packs and blocks for more compliant ride quality and reduced axle wrap
• Improved ride quality and performance compared to stock with no change in towing capacity

Attributes:

• GTIN: 00840103423449
• Brand Name: ICON Vehicle Dynamics
• 2064: Steel
• 2371: Yes
• 30: Yes
• 3096: Black
• 3097: Yes
• 3390: Performance
• 6111: 7
• 7325: 2
• Add-On Part: 191014 - .25" COLLAR SPANNER PIN WRENCH
• Front Spring Rate Type: Linear
• Maximum Lift Front: 3.75
• Maximum Lift Rear: 2
• Minimum Lift Front: 2.5
• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Tires: 35" x 12.50" (37" x 12.50" tires may fit but fender trimming and modifications will be required.)
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset

Extended Information:

• Country of Origin: United States
• Emissions : Announced
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 54.0000 x 48.0000 x 19.0000 inches
• Weight: 356.0000 lb
