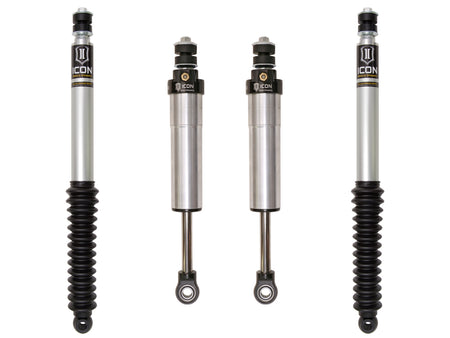

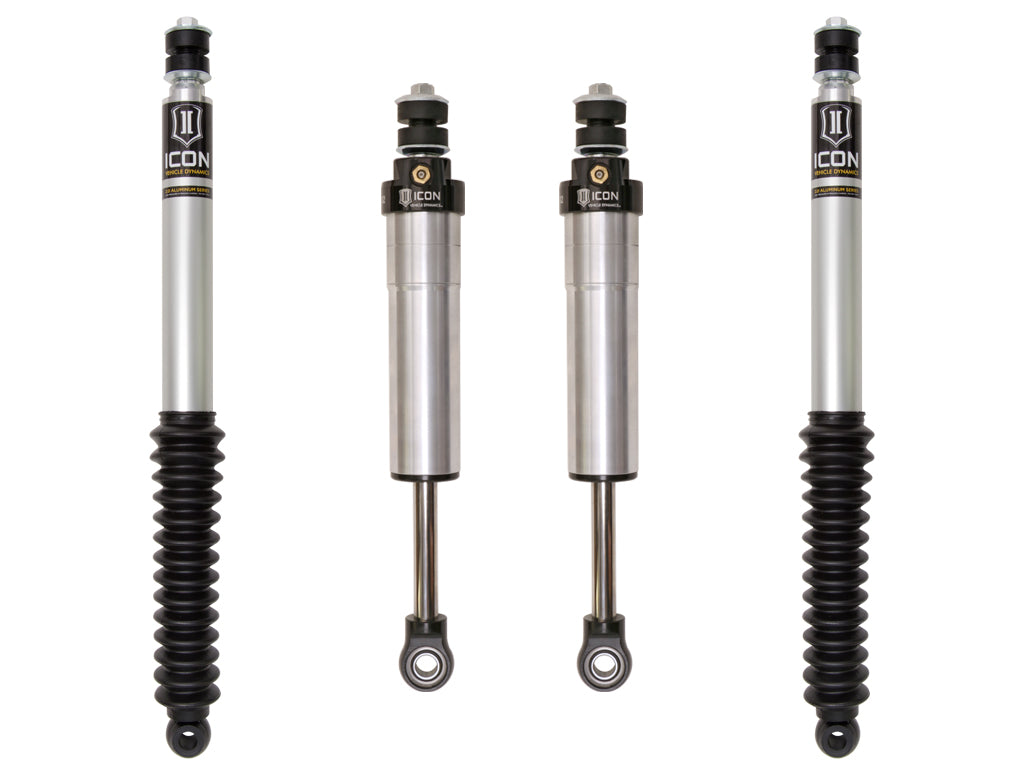

ICON 1998-2007 Toyota Land Cruiser/Lexus LX470 0-2" Lift Stage 1 Suspension System

The 1998 - 2007 Toyota Land Cruiser 100 Series has a compact torsion bar IFS front suspension, and requires a lot of work to be done in a small space. When lift is added via torsion bar adjustment there is even more spring energy that must be absorbed to adequately control the vehicle. Understanding this, ICON engineers have developed a unique 2.5 Aluminum Series front shock that can handle these demands. With a lower spherical rod end bearing and heavy-duty upper stem bushings, deflection is kept to a minimum for precise control of the suspension even under high loads. 2.0 Aluminum Series rear shocks are included in this stage to offer balanced damping front to rear.

• Vehicle specific tuned front and rear shocks for superior shock damping and control
• 6061 Aircraft grade aluminum CNC machined components
• 2.5 Aluminum Series front shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
• FK rod end bearings for extended longevity and minimal deflection
• 2.0 aluminum body rear IFP shock with 5/8" shaft
• 100% Bolt-on - no drilling, cutting or welding necessary for install

Attributes:

• GTIN: 00840103417158
• Brand Name: ICON Vehicle Dynamics
• 222: Chrome
• 2328: Oil
• 3390: Performance
• 48: Eyelet
• 5126: Silver
• Add-On Part: 252008 - 2.5 X 13 SHOCK BOOT BLACK (PAIR)
• Adjustable: No
• Gas Charged: Yes
• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
• Recommended Aftermarket Wheels: 17x8.5" w/ 4.75” Backspace / 0mm Offset

Extended Information:

• Country of Origin: US
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 27.0000 x 12.0000 x 6.0000 inches
• Weight: 24.0000 lb
