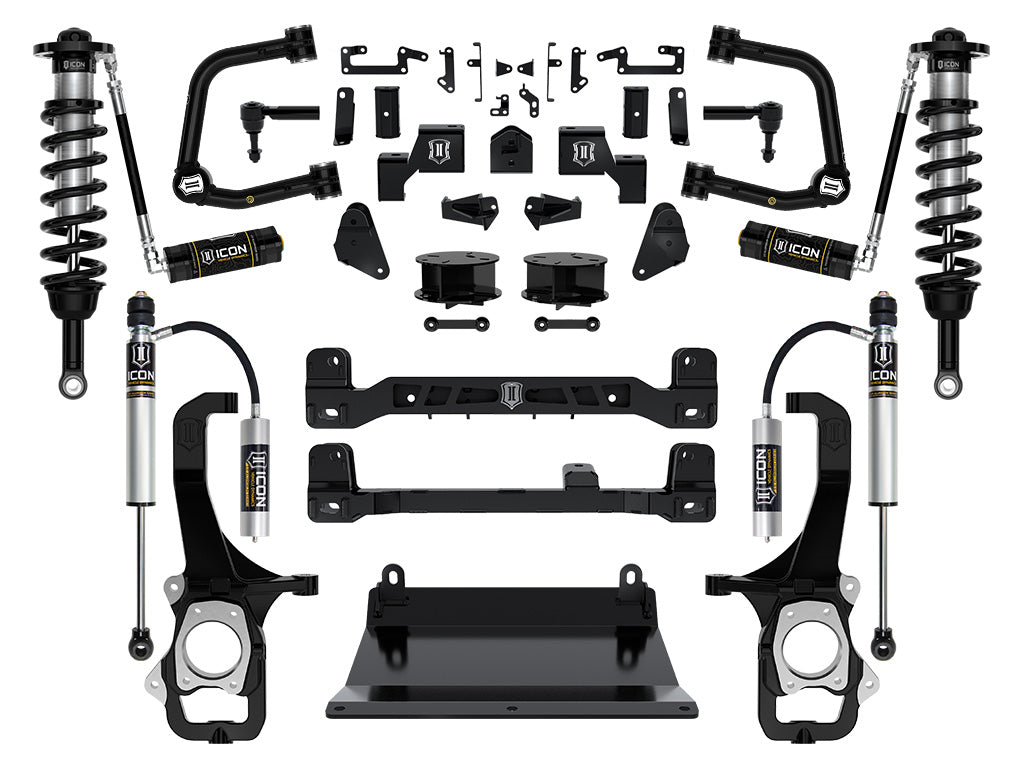

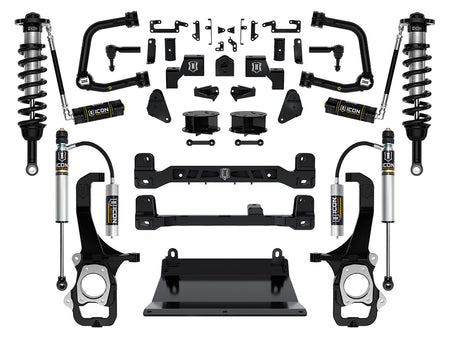

ICON 2022-2023 Toyota Tundra 6" Lift Stage 3 Suspension System With Tubular Upper Control Arms
Regular price
$6,585.10
Couldn't load pickup availability
- 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
- Hight clearance front crossmembers and front skid plate, CNC Laser Cut and brake-formed from 1/4-inch steel plate
- Included sway bar drop brackets reduce bind in OE sway bar links
- Front and rear heavy-duty bump stop brackets
- High angle outer tie-roads feature durable, metal on metal greaseable tie rod ends
- 2.0 Aluminum Series rear shocks with remote reservoirs provide balanced tune with the front coilovers and increased fluid volume for better heat dissipation
- Rear coil spring spacer kit to provide lift while retaining factory rear coil springs
- Improved rear sway bar links and mounts, and rear track bar bracket to reduce bind in the rear suspension
- System allows for up to 40% increase in front wheel travel over stock without overstressing OE components
- Optimized design to fit 37" tires with full articulation (larger tires may fit but fender trimming and modifications will be required)
- Maintains factory track width
- Optimized suspension geometry nearly eliminates the bump steer found in stock Tundras
- Adjustable front ride heights from 5-6” of front lift over stock (up to 6" of lift with only 4" of crossmember drop)
- Tubular UCAs with Delta Joint Pro for added strength, durability, and caster correction for improved drivability
- Patented Delta Joint Pro (U.S. Pat. 10,731,700) provides improved durability and serviceability with 90 degrees of total articulation
- Single piece high-strength ductile iron steering knuckles with built-in 4" drop
Attributes:
- GTIN: 00840103425351
- Brand Name: ICON Vehicle Dynamics
- 2064: Steel
- 2371: No
- 30: Yes
- 3096: Black
- 3097: Yes
- 3390: Performance
- 7325: 2
- 9900: No
- Add-On Part: 191013 - NIPPLE GREASING ADAPTER KIT
- Adjustable Damping: No
- Front Spring Rate Type: Linear
- Maximum Lift Front: 6
- Maximum Lift Rear: 3
- Minimum Lift Front: 5
- OEM Wheels & Tires Fitment: No
- Recommended Aftermarket Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
- Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.625” Backspace / 16mm Offset
Extended Information:
- Country of Origin: US
- Emissions : Emissions Compliance Exempt
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1.0
- Package UOM: EA
- Dimension: 25.0000 x 24.0000 x 9.0000 inches
- Weight: 318.0000 lb
