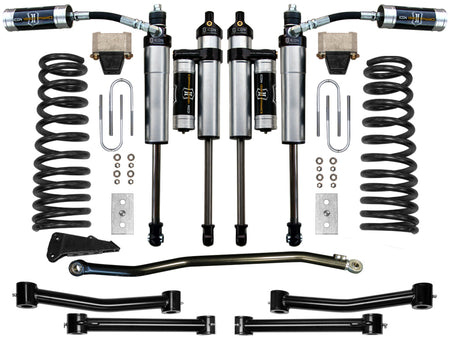

03-08 RAM 2500/3500 4WD 4.5" STAGE 4 SUSPENSION SYSTEM

2003-2008 Ram 2500/3500 4.5 Inch Stage 4 Suspension System utilizes the same technology as the 2.5 Inch systems while adding lift height and ground clearance. Additional engineered front-end components are added to ensure proper steering geometry with improved function throughout the entire travel range whether on or off road. ICON 2.5 Inch Series shocks extend the performance of the kit by increasing the duration of consistent damping regardless of situation. These shocks include FK bearings, billet top cap and rod ends, and 7/8" shafts for strength. The adjustable track bar with bearings not only improves rigidity over flexible factory joints, but offers adjustability to center the front axle under the truck. ICON steel upper and lower links increase performance, strength, and range of alignment. These link arms decrease the bind found in the factory link bushings. The multi leaf expansion pack improves compliance with a more progressive rate. This ultimate performance system with link arms offers extraordinary diversity across any terrain, all while keeping a smooth highway feel. Installing this kit allows proper clearance for 35" tall tires with no modifications, and some 37" tires with minor fender well trimming for clearance. With the endless hours ICON has spent testing and tuning our suspension components and shocks together, you can rest assured you have the best suspension solution on the market.

• ICON engineered dual rate coil springs with match tuned 2.5 Aliminum Series reservoir shocks
• Adjustable track bar with PTFE lined FK bearings
• Heavy-duty steel upper and lower link bars
• Increased wheel travel and ride quality over stock with no change in towing capacity
• Correctly positioned steering and track bar components
• Level stance front to rear
• Less body roll than stock
• No drive shaft modifications needed

Attributes:

• GTIN: 00840103415550
• Brand Name: ICON Vehicle Dynamics
• 2064: Steel
• 2371: Yes
• 30: Yes
• 3096: Black
• 3097: Yes
• 3390: Performance
• 5520: 4.5
• 5782: Open
• 5783: Open
• 7325: 2
• Add-On Part: 191014 - .25" COLLAR SPANNER PIN WRENCH
• Dual Rate Coil Springs: Yes
• Front Spring Rate 2: 600
• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required)
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.25” BS / 13mm Offset

Extended Information:

• Country of Origin: US
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 26.0000 x 19.0000 x 10.0000 inches
• Weight: 271.0000 lb
