03-12 RAM 2500/3500 4WD 2.5" STAGE 3 SUSPENSION SYSTEM

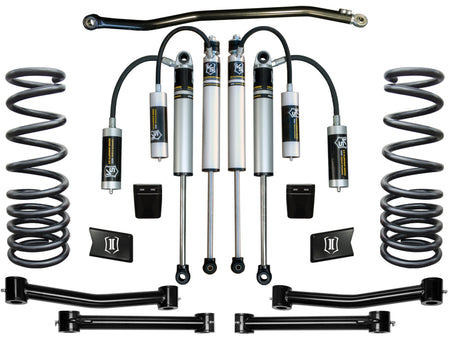

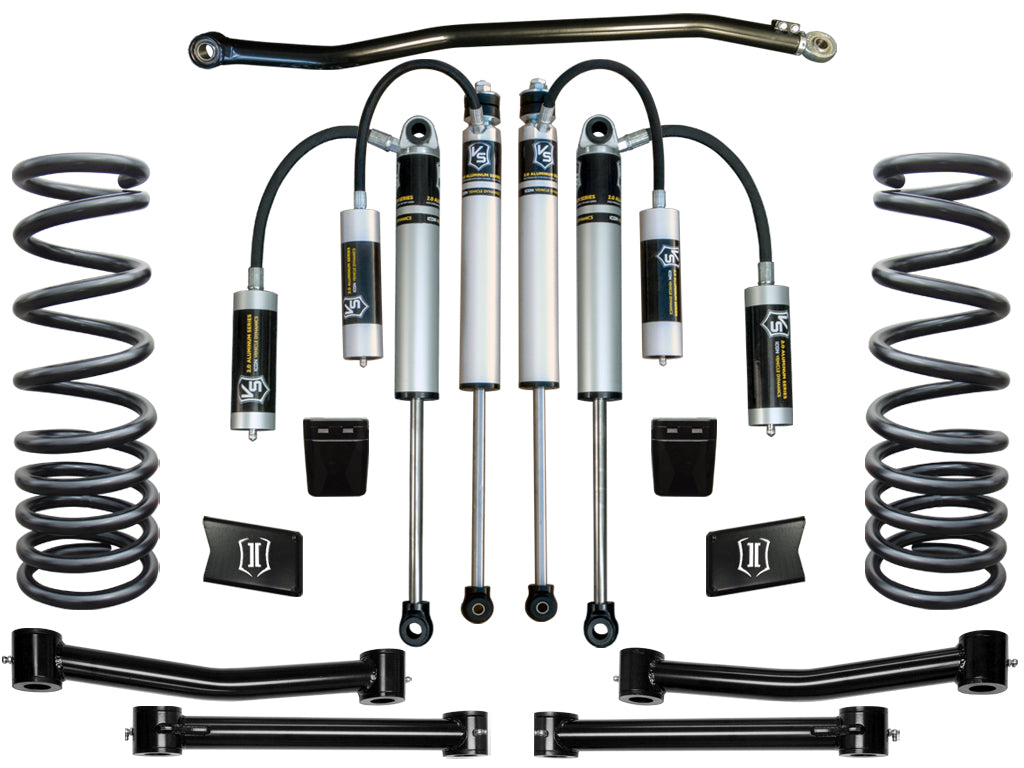

2003-2012 Ram 2500/3500 2.5 Inch Stage 3 Suspension System is our mid-level performance system for the active off road or overlanding enthusiast. This system not only levels out the stance, it increases ride quality and performance both on and off road. The Stage 3 system is comprised of dual rate coil springs, polyurethane bumpstops, sway bar drop brackets, 2.0 Aluminum Series remote reservoir shocks, bearing style adjustable track bar, and front steel upper and lower links. Remote reservoir shocks will extend performance of the kit by increasing the duration of consistent damping regardless of situation. The adjustable track bar with FK bearings not only improves rigidity over flexible factory joints, but offers adjustability to center the front axle under the truck. ICON steel upper and lower links included increase performance, strength, and range of alignment. These link arms decrease the bind found in the factory link bushings. ICON has spent endless hours testing and tuning our suspension components and shocks together, so you can rest assured you have the best suspension solution on the market.

• ICON engineered dual rate coil springs with match tuned 2.0 Aluminum Series remote reservoir shocks
• Adjustable track bar with PTFE lined FK bearings
• Heavy-duty steel upper and lower link bars
• Increased wheel travel and ride quality over stock with no change in towing capacity
• Level stance front to rear
• Less body roll than stock
• No drive shaft modifications needed

Attributes:

• GTIN: 00840103415208
• Brand Name: ICON Vehicle Dynamics
• 2064: Steel
• 2371: Yes
• 30: Yes
• 3096: Black
• 3097: Yes
• 3390: Performance
• 5520: 2.5
• 5782: Open
• 5783: Open
• 7325: 2
• Add-On Part: 191014 - .25" COLLAR SPANNER PIN WRENCH
• Dual Rate Coil Springs: Yes
• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required)
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.25” BS / 13mm Offset

Extended Information:

• Country of Origin: United States
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 26.0000 x 19.0000 x 10.0000 inches
• Weight: 174.0000 lb
