05-15 TACOMA 0-3.5"/ 16-UP 0-2.75" STAGE 1 SUSPENSION SYSTEM

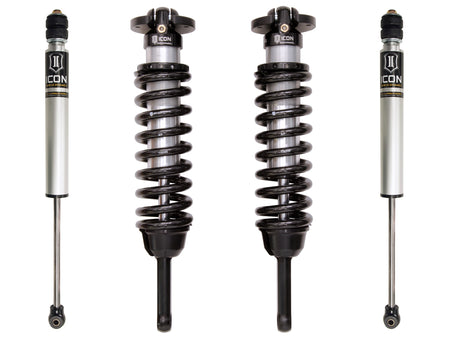

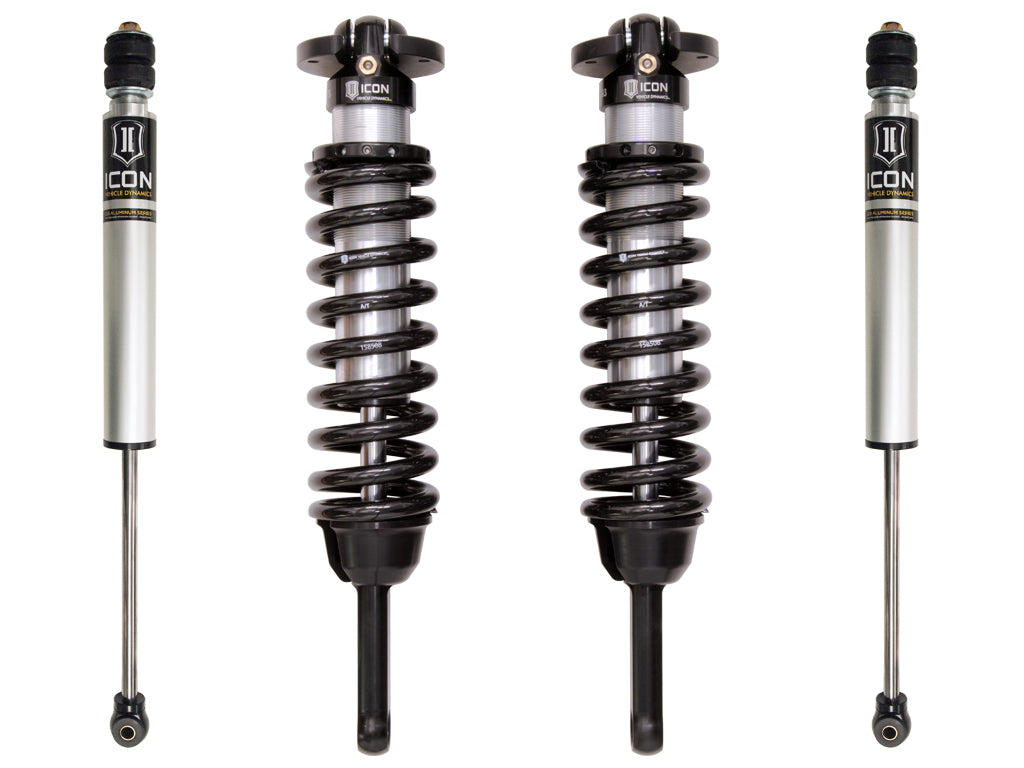

ICON Vehicle Dynamics Toyota Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. The Stage 1 system includes vehicle-specific tuned 2.5” coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered Eibach coil springs for superior vehicle “feel” through the range of travel. These coilovers are height adjustable from 0-3.5” of lift on 2005-2015 or 0-2.75” on 2016-UP models allowing the use of larger, more aggressive wheel and tire combinations. ICON 2.0 Aluminum Series monotube rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2005-UP Toyota Tacoma 4WD/PreRunner Stage 1 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.

• Increased wheel travel and ride quality over stock
• Vehicle specific tuned front and rear shocks for superior shock damping and control
• Adjustable coilovers with CDCV provide up to 3.5" of front lift height on 2005 to 2015 models and up to 2.75" on 2016-up models
• 6061 aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated coilover shock body with 7/8" shaft
• FK Rod End bearings for extended longevity and minimal deflection
• 2.0 Aluminum Series rear IFP shock with 5/8" shaft
• Bolt-on system means no cutting or welding necessary for install

Attributes:

• GTIN: 00840103416373
• Brand Name: ICON Vehicle Dynamics
• 1078: 650
• 2064: Steel
• 2371: Yes
• 30: Yes
• 3096: Black
• 3097: Yes
• 3390: Performance
• 5520: 3.5
• 7325: 2
• Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5 with 4.75” Backspace / 0mm Offset

Extended Information:

• Country of Origin: United States
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 26.0000 x 13.0000 x 7.0000 inches
• Weight: 53.0000 lb
