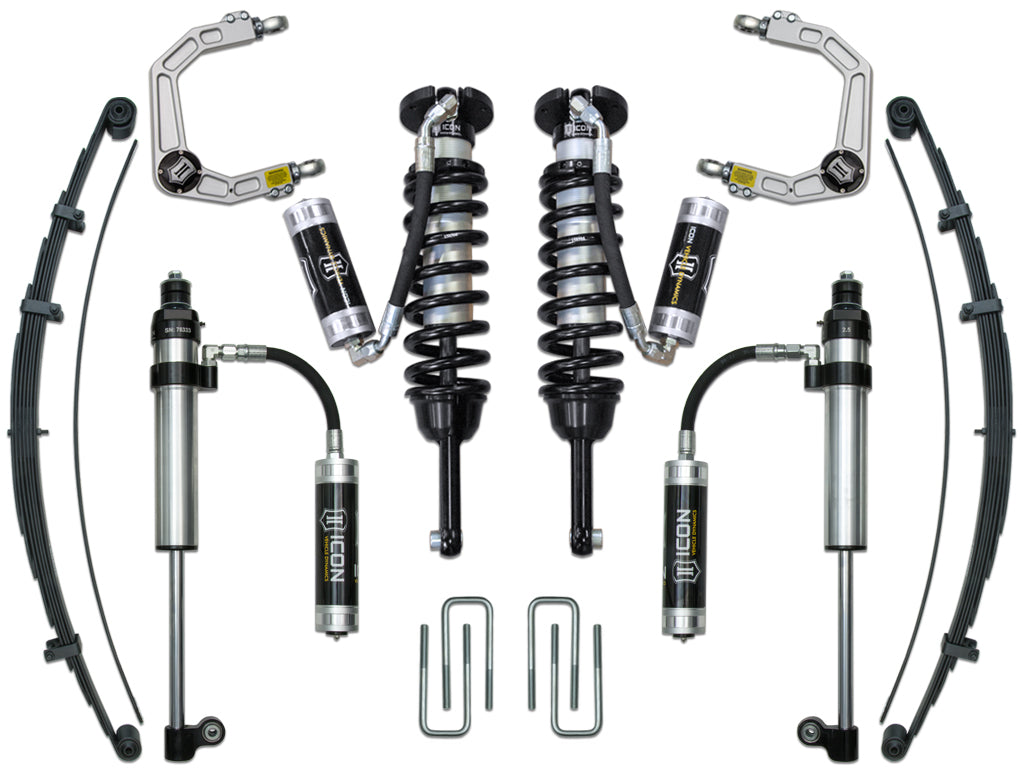

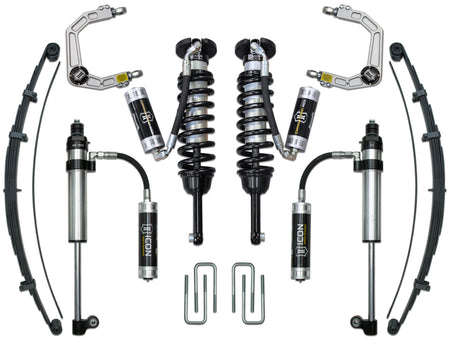

05-15 TACOMA 0-3.5"/ 16-UP 0-2.75" STAGE 8 SUSPENSION SYSTEM W BILLET UCA

This system features billet aluminum upper control arms with ICON's patented Delta Joint. The Delta Joint is a heavy duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application - exposure to the elements. The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint. Metal on metal construction and a greasable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation. What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint.

• Increased wheel travel and ride quality over stock
• Corrosion resistant CAD plated coilover shock body with 7/8" shaft
• 2.5 Aluminum Series remote reservoir RXT rear shocks feature corrosion resistant anodized aluminum shock bodies with 7/8" shafts
• Multi-Rate Leaf Spring with 3 user-adjustable spring rates for unique vehicle configurations
• ICON RXT Rear Shock with unique side-mounted lower eyelet allows for increased travel (up to 20%) while utilizing factory mounting location
• FK Rod End bearings for extended longevity and minimal deflection
• Shocks are fully rebuildable and revalveable
• Bolt-on system means no cutting or welding necessary for install
• “ICON 1K” tested under rigorous off-road conditions to validate tune, performance, strength, and durability
• Vehicle-specific tuned front and rear shocks for superior shock damping and control
• · Adjustable coilovers with CDCV provide up to 3.5" of front lift height on 2005 to 2015 models and up to 2.75" on 2016-up models
• Extended Travel coilovers matched with ICON UCA provides increased front droop travel
• 6061 aircraft grade aluminum CNC machined components

Attributes:

• GTIN: 00840103416496
• Brand Name: ICON Vehicle Dynamics
• 1078: 650
• 2064: Steel
• 2371: Yes
• 30: Yes
• 3096: Black
• 3097: Yes
• 3390: Performance
• 5520: 3.5
• 6111: 8
• 7325: 2
• Add-On Part: 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)
• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5 with 4.75” Backspace / 0mm Offset

Extended Information:

• Country of Origin: US
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 55.0000 x 40.0000 x 9.0000 inches
• Weight: 287.0000 lb
