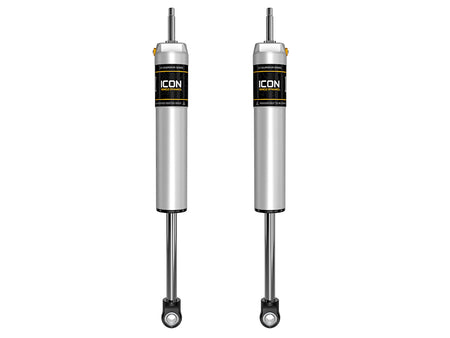

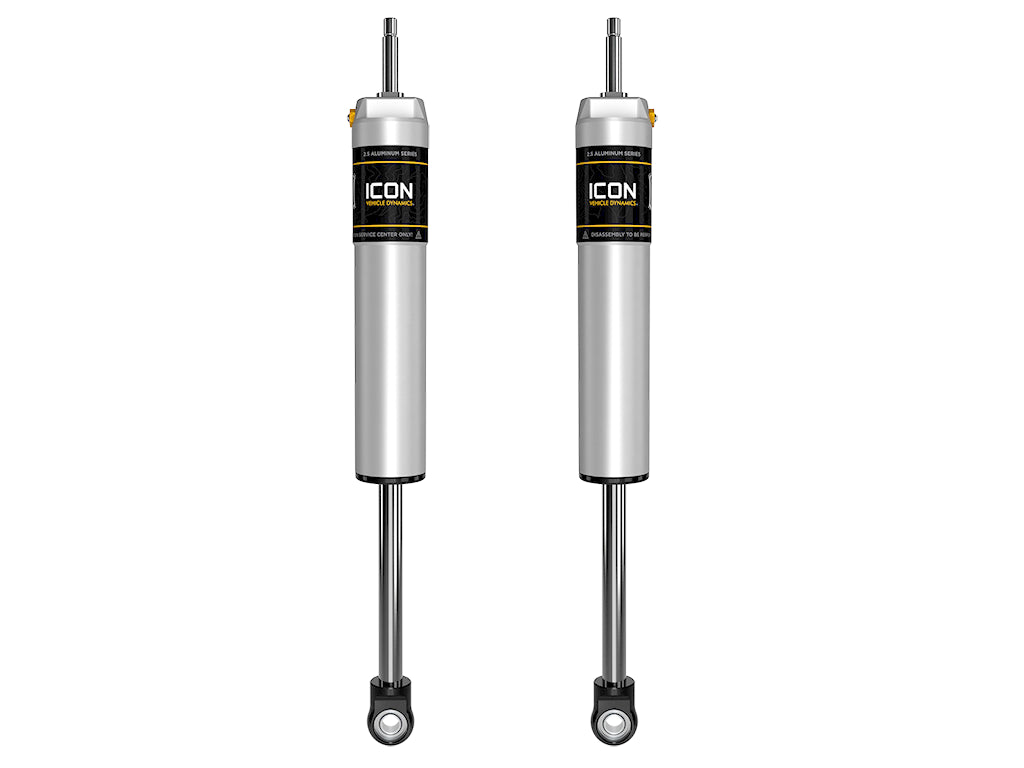

05-UP FSD 4WD 4.5" FRONT 2.5 VS IR PAIR

ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. The larger diameter and oil volume of ICON 2.5 IR Series shocks provide better ride quality and heat dissipation properties than the standard 2.0 Aluminum Series IR Shocks. If you are looking for a more user defined tune, consider looking into the Compression Damping Control Valve (CDC Valve) shocks.

• Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
• 100% Rebuildable
• 100% Revalveable
• Nitrogen charged monotube design with internal reservoir
• One-piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
• 7/8” diameter induction hardened, chrome plated shock shaft
• Polyurethane bushings and forged steel mounting stems for OE factory type fitment
• PTFE lined spherical bearings and application specific mounting hardware
• 6061 aircraft grade aluminum CNC machined components
• One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
• Increase in strength and heat dissipation when compared to ICON V.S. 2.0 Series shocks

Attributes:

• GTIN: 00840103405841
• Brand Name: ICON Vehicle Dynamics
• 30: Yes
• 359: 2.5
• 40: NO
• 408: Center of Eylet
• 409: Shoulder of Stem
• 48: EYELET
• 49: Stem
• 50: NO
• 51: Yes
• 905: 2.25
• Add-On Part: 252008 - 2.5 X 13 SHOCK BOOT BLACK (PAIR)
• Cylinder Color: Silver
• Cylinder Material: Aluminum
• Damping Type: Oil
• External Reservoir: NO
• Grade Type: Performance
• Service Parts: 252001 - 2.5 FIXED SPANNER WRENCH
• Shaft Diameter: 0.875
• Shaft Material: Chrome

Extended Information:

• Country of Origin: US
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 39.0000 x 10.0000 x 9.0000 inches
• Weight: 17.0000 lb
