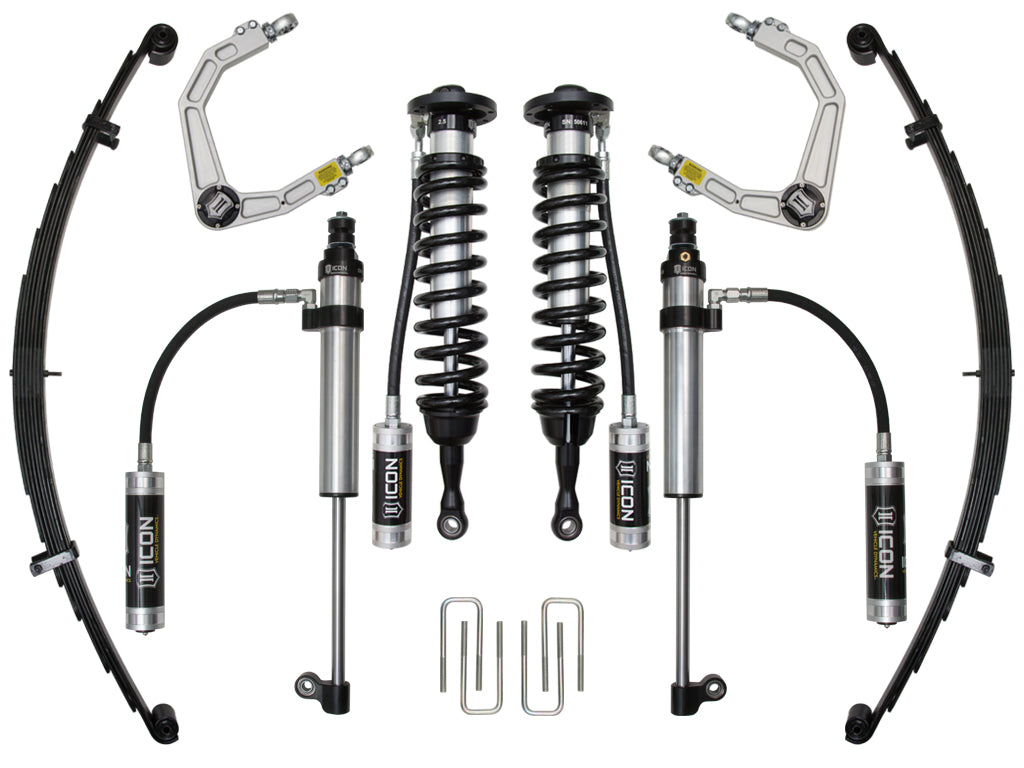

07-21 TUNDRA 1-3" STAGE 8 SUSPENSION SYSTEM W BILLET UCA

This system features billet aluminum upper control arms with ICON's patented Delta Joint. The Delta Joint is a heavy-duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application - exposure to the elements. The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint. Metal on metal construction and a greaseable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation. What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint.

• Increased wheel travel and ride quality over stock
• Adjustable coilovers provide 1-3" of front lift height
• 6061 aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• 2.5 Aluminum Series RXT rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
• FK Rod End bearings for extended longevity and minimal deflection
• Shocks are fully rebuildable and revalveable
• Bolt-on system means no cutting or welding necessary for install
• 3 user-adjustable rear leaf spring rates for unique vehicle configurations
• Military wrap front leaf spring eyelets for increased durability
• Galvanized leaf separators reduce friction and aid in corrosion resistance
• Leaf spring tip inserts reduce noise and increase ride comfort
• Increased wheel travel when used with RXT shock without sacrificing up-travel
• Unique side-mounted lower eyelet allows for increased rear shock travel while utilizing factory mounting location
• 10” aluminum reservoirs in RXT shocks provide generous oil and nitrogen volume for consistent damping as shock temperature increases
• Vehicle-specific tuned front and rear shocks for superior shock damping and control

Attributes:

• GTIN: 00840103416700
• Brand Name: ICON Vehicle Dynamics
• 2064: Steel
• 2371: Yes
• 30: Yes
• 3096: Black
• 3097: Yes
• 3390: Performance
• 5520: 3.5
• 6111: 8
• 7325: 2
• Add-On Part: 191009 - ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5)
• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.75” Backspace / 25mm Offset

Extended Information:

• Country of Origin: US
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 48.0000 x 48.0000 x 20.0000 inches
• Weight: 291.0000 lb
