07-21 TUNDRA RXT STAGE 2 SYSTEM

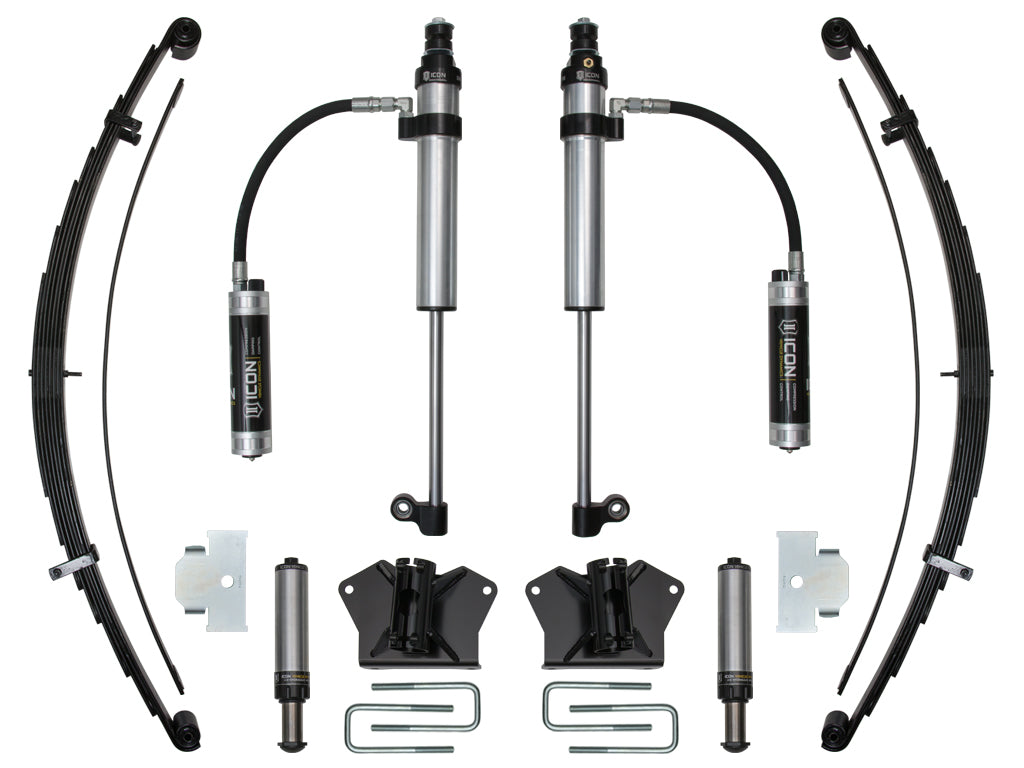

Through an accelerated testing process dubbed the “ICON1K” R&D program, ICON has spent over a year pushing the Tundra to off-road extremes to identify limiting factors in OE components and further extrapolate performance out of this vehicle. In a push to provide unparalleled ride quality and vehicle dynamics for everything from high-speed desert running to off the grid expedition, the RXT Rear Suspension System was born. The RXT Rear Suspension System is a combination of an all new ICON multi-rate leaf spring, a hydraulic rear bump stop kit, and three RXT-specific 2.5 Aluminum Series rear shock options. Installation of this system replaces the aforementioned “limiting factors” and completely redefines the potential of the 2007-2021 Toyota Tundra with a 20% increase in wheel travel and the ability to adjust the leaf spring rate to compensate for varying vehicle setups.

• ICON RXT Multi-Rate Leaf Spring: 3 user-adjustable spring rates for unique vehicle configurations
• ICON Hydraulic Rear Bump Stop Kit: Direct bolt-in to OEM bump stop location makes for an easy and straightforward install
• ICON Hydraulic Rear Bump Stop Kit: Heavy duty 1.25” CNC machined nitro steel shaft
• ICON RXT Multi-Rate Leaf Spring: Military wrap front eyelet for increased durability
• ICON Hydraulic Rear Bump Stop Kit: CAD plated body for maximum corrosion resistance
• ICON Hydraulic Rear Bump Stop Kit: Double sealed high pressure Schrader valve
• ICON Hydraulic Rear Bump Stop Kit: Operating range of 50-250 PSI
• ICON Hydraulic Rear Bump Stop Kit: Replaceable noise-reducing striker pad
• ICON Hydraulic Rear Bump Stop Kit: Fully serviceable
• ICON Hydraulic Rear Bump Stop Kit: “ICON 1K” tested under rigorous off-road conditions to validate tune, performance, strength, and durability
• ICON RXT Multi-Rate Leaf Spring: Galvanized leaf separators reduce friction and aid in corrosion resistance
• ICON RXT Rear Shock: CDC Valve technology allows for 10 settings of quick and easy compression damping adjustment
• ICON RXT Multi-Rate Leaf Spring: Leaf tip inserts reduce noise and increase ride comfort
• ICON RXT Multi-Rate Leaf Spring: Potential for increased wheel travel when used with RXT shock without sacrificing up-travel (up to 20% over stock)
• ICON RXT Multi-Rate Leaf Spring: “ICON 1K” tested under rigorous off-road conditions to validate tune, performance, strength, and durability
• ICON RXT Multi-Rate Leaf Spring: Direct bolt-in to OEM spring location makes for an easy install
• ICON RXT Rear Shock: Unique side-mounted lower eyelet allows for increased travel while utilizing factory mounting location
• ICON RXT Rear Shock: Corrosion resistant, one-piece impact extruded aluminum shock bodies with 7/8" shafts
• ICON RXT Rear Shock: Vehicle-specific tuned shocks provide increased damping and oil volume
• ICON RXT Rear Shock: 10” aluminum reservoirs provide generous oil and nitrogen volume for consistent damping as shock temperature increases
• ICON RXT Rear Shock: Shocks are fully rebuildable and revalveable
• ICON RXT Rear Shock: Simple and straightforward installation
• ICON RXT Rear Shock: “ICON 1K” tested under rigorous off-road conditions to validate tune, performance, strength, and durability
• ICON Hydraulic Rear Bump Stop Kit: 2.5” travel bump stop reduces rear end ‘kick’ and improves overall performance
• ICON Hydraulic Rear Bump Stop Kit: Position sensitive technology exponentially increases bottom-out resistance
• ICON Hydraulic Rear Bump Stop Kit: Vehicle specific bump stop tune to provide smooth engagement and best ride quality

Attributes:

• GTIN: 00840103417578
• Brand Name: ICON Vehicle Dynamics
• 2064: Steel
• 2371: Yes
• 30: Yes
• 3096: Black
• 3097: Yes
• 3390: Performance
• 5520: 4
• 6111: 8
• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.75” Backspace / 25mm Offset

Extended Information:

• Country of Origin: United States
• Emissions : 4
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 55.0000 x 40.0000 x 19.0000 inches
• Weight: 264.0000 lb
