08-10 FORD F250/F350 7" STAGE 5 SUSPENSION SYSTEM W RADIUS ARM

SKU: FRDK-K67204R Barcode: 00840103419022
Regular price $7,698.13

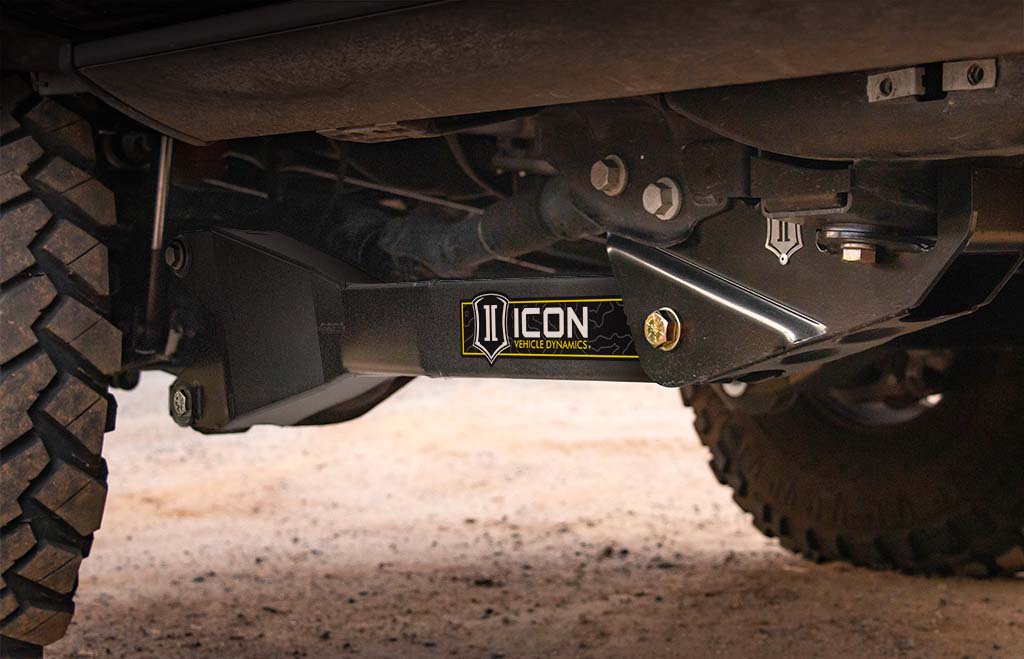

This Stage 4 system sees the inclusion of the ICON Vehicle Dynamics Ford Super Duty Radius Arm System that feature a sealed pivot bushing that minimizes road feedback and ensures a long life and quiet operation. Additionally, their fabricated, fully boxed design ensures strength and utilizes a profile optimized for tire clearance at full steering lock, making a 37” tall tire clear without coming in contact with the radius arm.
  • Increased wheel travel and ride quality over stock with no change in towing capacity
  • Decreased body roll
  • ICON engineered dual rate coil springs with match tuned 2.5 Series reservoir shocks w/ CDCV
  • Shock absorbers feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
  • Fabricated radius arms with drop brackets offer on vehicle caster adjustment, increased strength, and improved tire clearance at steering lock
  • Correctly positioned steering and track bar components
  • Rear progressive design leaf pack for smooth compliant ride
  • No drive shaft modifications needed

Attributes:

  • GTIN: 00840103419022
  • Brand Name: ICON Vehicle Dynamics
  • 2064: Steel
  • 2371: Yes
  • 30: Yes
  • 3096: Black
  • 3097: Yes
  • 3390: Performance
  • 5520: 7
  • 6111: 7
  • 7325: 2
  • Dual Rate Coil Springs: Yes
  • OEM Wheels & Tires Fitment: Yes
  • Recommended Aftermarket Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
  • Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset

Extended Information:

  • Country of Origin: US
  • Emissions : Emissions Compliance Exempt
  • Life Cycle Status: Available To Order

Packing Information:

  • Quantity of Each: 1.0
  • Package UOM: EA
  • Dimension: 48.0000 x 48.0000 x 10.0000 inches
  • Weight: 551.0000 lb
