09-18 RAM 1500 4WD .75-2.5" STAGE 3 SUSPENSION SYSTEM

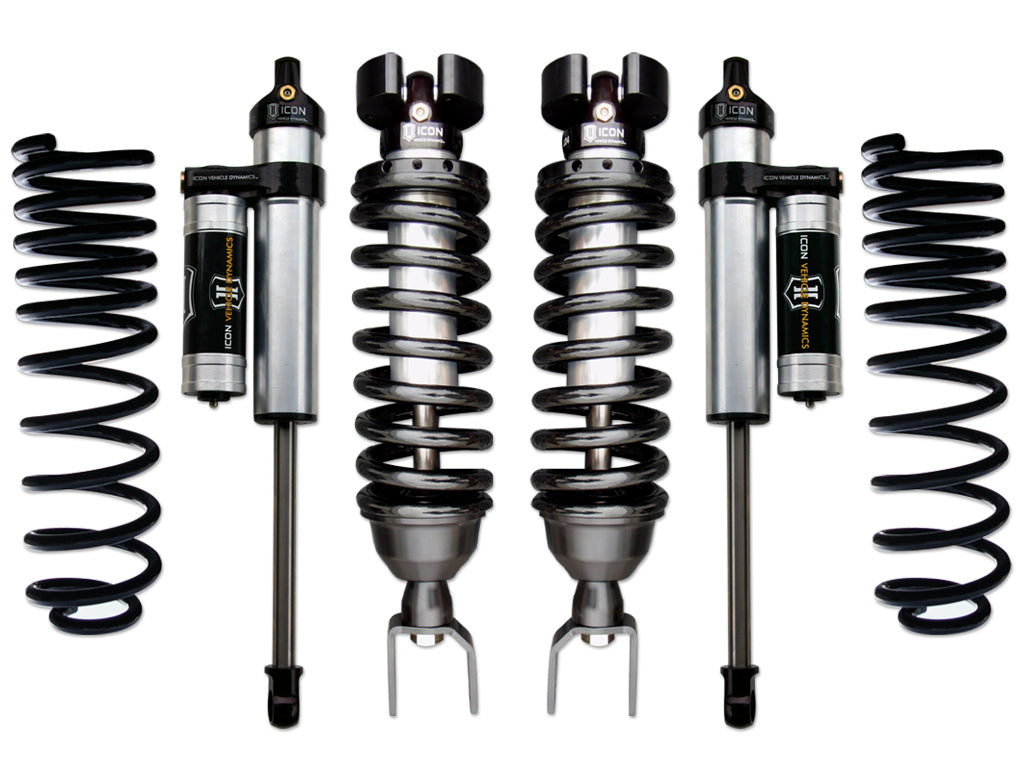

ICON Vehicle Dynamics Dodge Ram 1500 4WD suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. The Stage 3 system includes vehicle-specific tuned 2.5” coilover shocks featuring internal reservoirs for exceptional cooling properties and ICON-engineered Eibach coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable from .75-2.5” of lift over stock, allowing the use of larger, more aggressive wheel and tire combinations. ICON 2.5 Aluminum Series piggyback reservoir rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2009-2018 Dodge Ram 1500 4WD Stage 3 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.

• Increased wheel travel and ride quality over stock with no change in towing capacity
• Vehicle specific tuned front and rear shocks for superior shock damping and control
• Adjustable coilovers from .75-2.5" of lift height
• 6061 Aircraft grade aluminum CNC machined components
• FK rod end bearings for extended longevity and minimal deflection
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• 2.5 Aluminum Series rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
• 100% Bolt-on system - no drilling, cutting, or welding necessary for install

Attributes:

• GTIN: 00840103415369
• Brand Name: ICON Vehicle Dynamics
• 2064: Steel
• 2371: Yes
• 30: Yes
• 3096: Black
• 3097: Yes
• 3390: Performance
• 5520: 2.5
• 5782: Open
• 5783: Open
• 7325: 2
• 7326: 2
• Add-On Part: 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)
• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required)
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.75” BS / 0mm Offset

Extended Information:

• Country of Origin: United States
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 27.0000 x 12.0000 x 6.0000 inches
• Weight: 105.0000 lb
