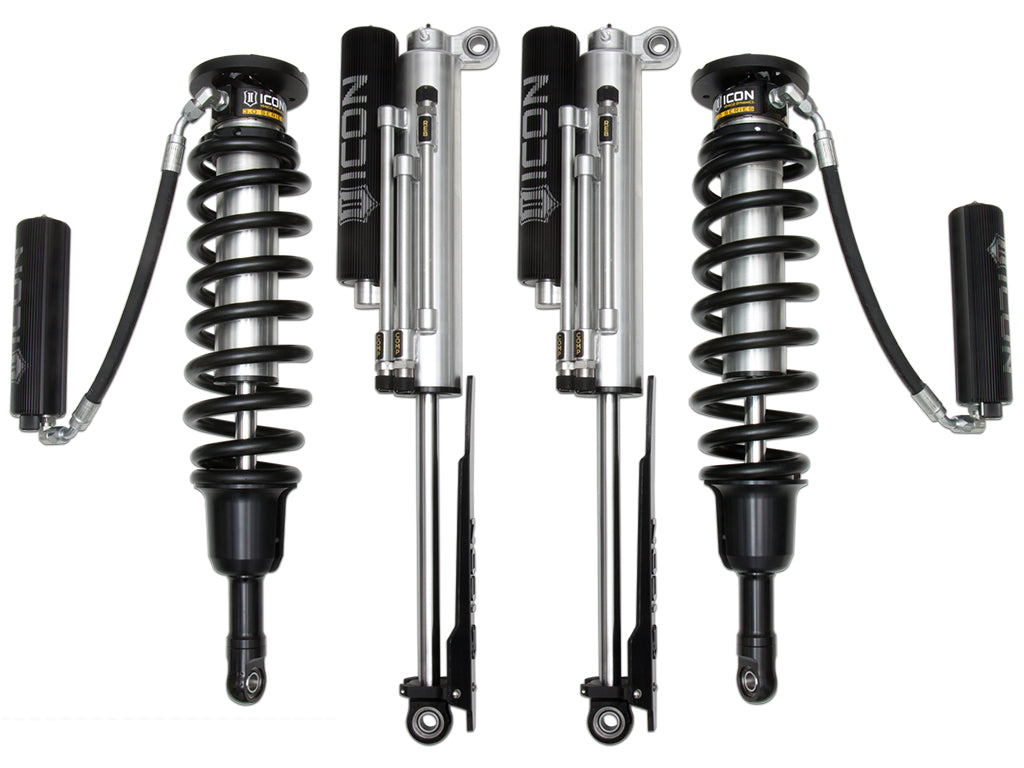

17-20 FORD RAPTOR STAGE 1 SUSPENSION SYSTEM

SKU: FRDK-K93151 Barcode: 00840103420400
Regular price $7,786.85
ICON Vehicle Dynamics products are proudly designed, manufactured, and assembled in Riverside, California by a team of passionate off-road enthusiasts. With a reputation for quality, performance, and service it's clear that ICON Vehicle Dynamics is the top choice for performance suspension systems and shock absorbers for the 2017-2020 Ford F150 Raptor.
  • 3.0 SERIES COILOVER SHOCK KIT
  • High quality ICON-engineered coil springs are guaranteed for life against sagging or breakage
  • Heavy duty CNC machined 1” shock shafts
  • CAD plated shock body with hard anodized piston and top cap
  • 3.0 SERIES 3-TUBE BYPASS SHOCK KIT
  • 3-tube bypass design and "Bump Zone" technology provides multiple unique zones of damping and rebound control
  • 12" finned aluminum reservoirs provide generous oil volume and increased surface area for enhanced cooling properties and consistent damping
  • Adjustable coilovers yield 1-3” of front lift height
  • Offset upper eyelet with patented ICON Anti-Wobble link for optimized shock mounting and packaging
  • Easy-to-adjust detented knobs offer quick adjustability without the use of tools
  • Specially engineered damped valve stops for quiet and precise operation without the loud “clicking” noise common with other brands
  • FK Rod End COM12 spherical bearings ensure maximum strength and durability
  • Urethane shin guards help to protect the shock shaft & rod end from premature wearCAD plated shock body with hard anodized piston and top cap
  • Fully serviceable design allows for revalves, rebuilds, and an immeasurable service life
  • Bolt-in design makes for an easy install into OEM shock location
  • Increased wheel travel and vehicle specific valving provides unrivaled ride quality across a wide range of on and off-road use
  • 50% increase in damping ability over OE shocks for excellent performance in extreme off-road conditions
  • Superior low speed control reduces body roll and increases on-road stability
  • Easy-to-adjust CDC Valve (Compression Damping Control) has 10 compression damping settings to suit all types of driving styles across varying terrain and vehicle cargo setups
  • ICON’s multi-stage hydraulic “Bump Zone” exponentially increases bottom-out resistance in the last 40% of compression travel
  • 10" finned aluminum reservoirs provide generous oil volume and increased surface area for enhanced cooling properties and consistent damping
  • Barreled coil spring design maximizes travel and provides more efficient packaging

Attributes:

  • GTIN: 00840103420400
  • Brand Name: ICON Vehicle Dynamics
  • 2064: Steel
  • 2371: NO
  • 30: Yes
  • 3096: Black
  • 3097: Yes
  • 3390: Performance
  • 5520: 3
  • 7325: 2
  • Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
  • OEM Wheels & Tires Fitment: Yes
  • Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
  • Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset

Extended Information:

  • Country of Origin: US
  • Emissions : Emissions Compliance Exempt
  • Life Cycle Status: Available To Order

Packing Information:

  • Quantity of Each: 1.0
  • Package UOM: EA
  • Dimension: 33.0000 x 15.0000 x 10.0000 inches
  • Weight: 148.0000 lb
