ICON Vehicle Dynamics

19-UP RAM 1500 2/4WD 09-18 RAM 1500 4WD 2.5 VS IR COILOVER KIT

SKU: FRDK-211000 Barcode: 00840103400495
For purchase and installation, please contact our store.
Description

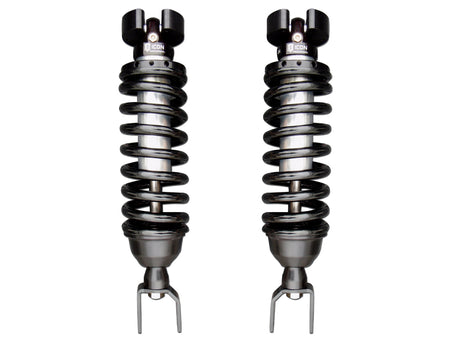

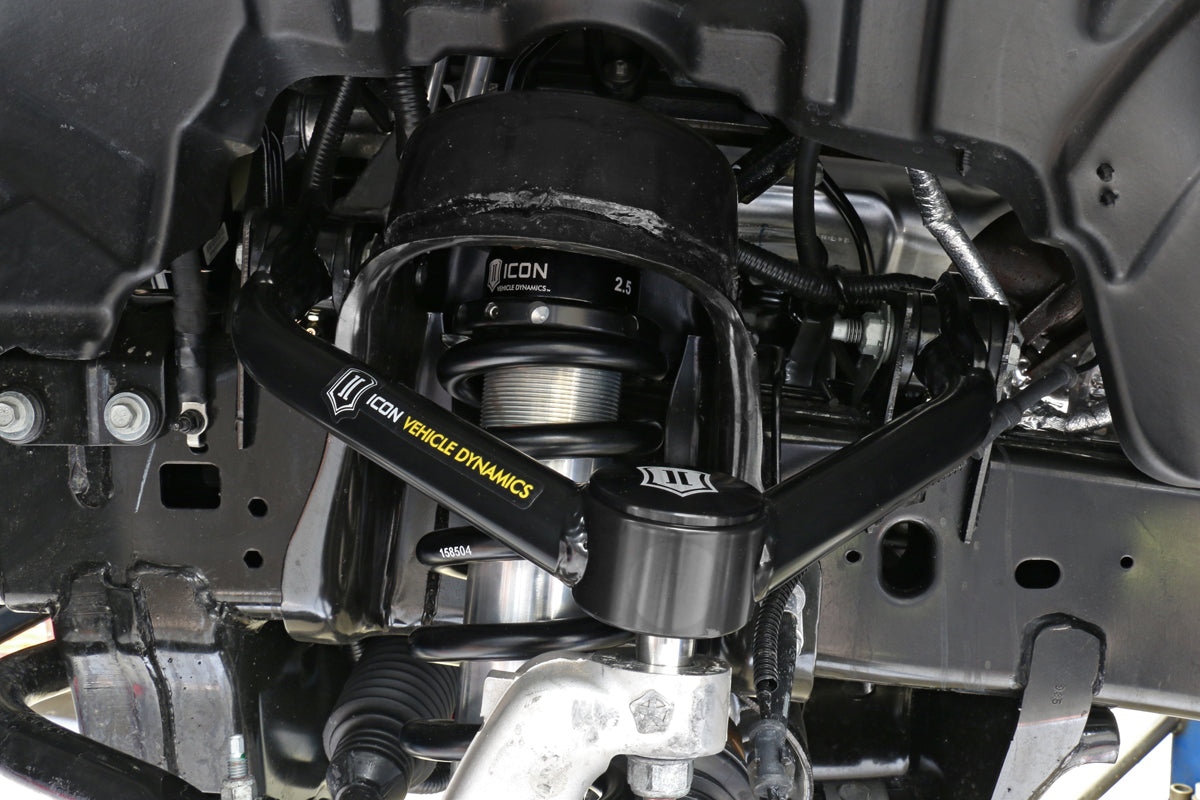

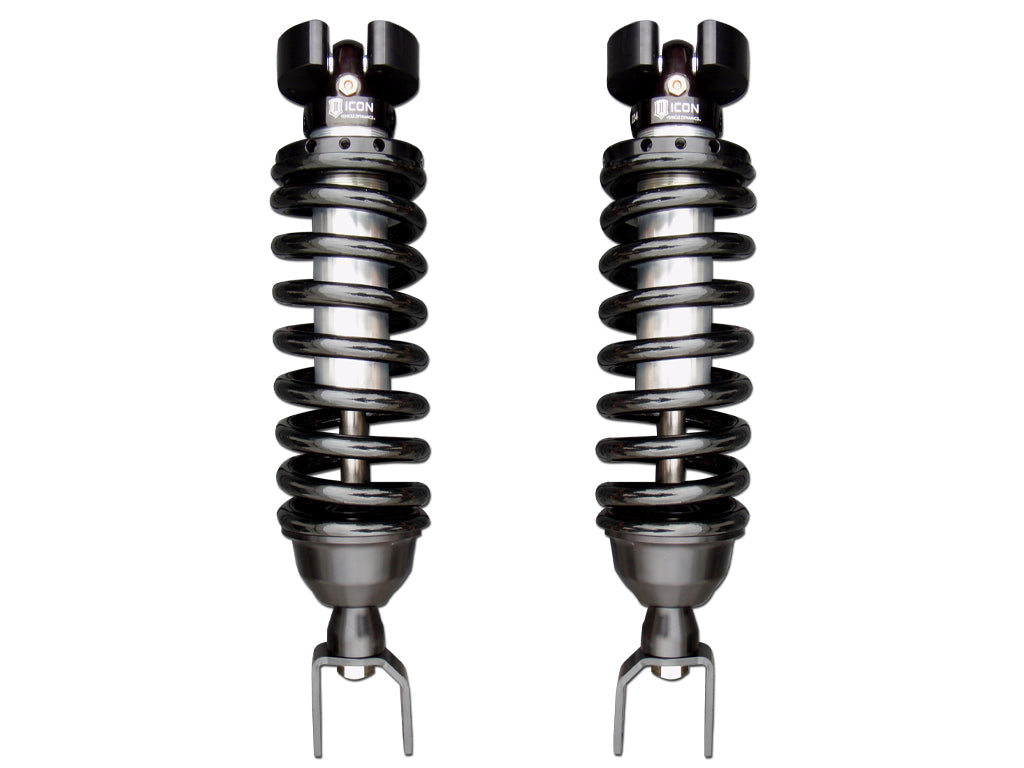

ICON's Vehicle Specific (V.S.) 2.5 Series coilover shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON shock absorbers, V.S. 2.5 Series shocks are 100% rebuildable and 100% revalveable.
  • Adjustable coilovers yield .75-2.5” of front lift height on '09-'18 models or 0-1.5" of lift on '19-Up models
  • Increased wheel travel and vehicle specific valving provides unrivaled ride quality across a wide range of on and off-road use
  • Superior low speed control reduces body roll and increases on-road stability
  • High quality ICON-engineered coil springs are guaranteed for life against sagging or breakage
  • Corrosion resistant CAD plated shock body with 7/8" shaft
  • Fully serviceable design allows for revalves, rebuilds, and an immeasurable service life
  • Bolt-in design makes for an easy install into OEM shock location

Attributes:

  • GTIN: 00840103400495
  • Brand Name: ICON Vehicle Dynamics
  • 2917: yes
  • 408: Center of Clevis Holes
  • 409: Top of Upper Mount Plate
  • 48: Clevis
  • 49: Mounting Plate
  • 50: No
  • 51: yes
  • 52: 2.5
  • Add-On Part: 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)
  • Adjustable Damping: NO
  • Coil Over Springs Included: Yes
  • Damping Type: Oil
  • Dust Shield: No
  • Grade Type: Performance
  • OEM Wheels & Tires Fitment: Yes
  • Recommended Aftermarket Tires: 33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
  • Recommended Aftermarket Wheels: (2009-UP Models) ICON Alloys - 17x8.5" w/ 4.75" Backspace / 0mm Offset
  • Remote Reservoir: NO
  • Service Parts: 252001 - 2.5 FIXED SPANNER WRENCH
  • Shaft Diameter: 0.875
  • Spring Color: Black
  • Spring Material: Steel

Extended Information:

  • Country of Origin: US
  • Emissions : 4
  • Life Cycle Status: Available To Order

Packing Information:

  • Quantity of Each: 1.0
  • Package UOM: EA
  • Dimension: 27.0000 x 12.0000 x 6.0000 inches
  • Weight: 42.0000 lb
