20-UP GM 2500HD/3500 0-2" STAGE 1 SUSPENSION SYSTEM (TUBULAR)

SKU: FRDK-K78351T Barcode: 00840103419374
Regular price $2,190.14

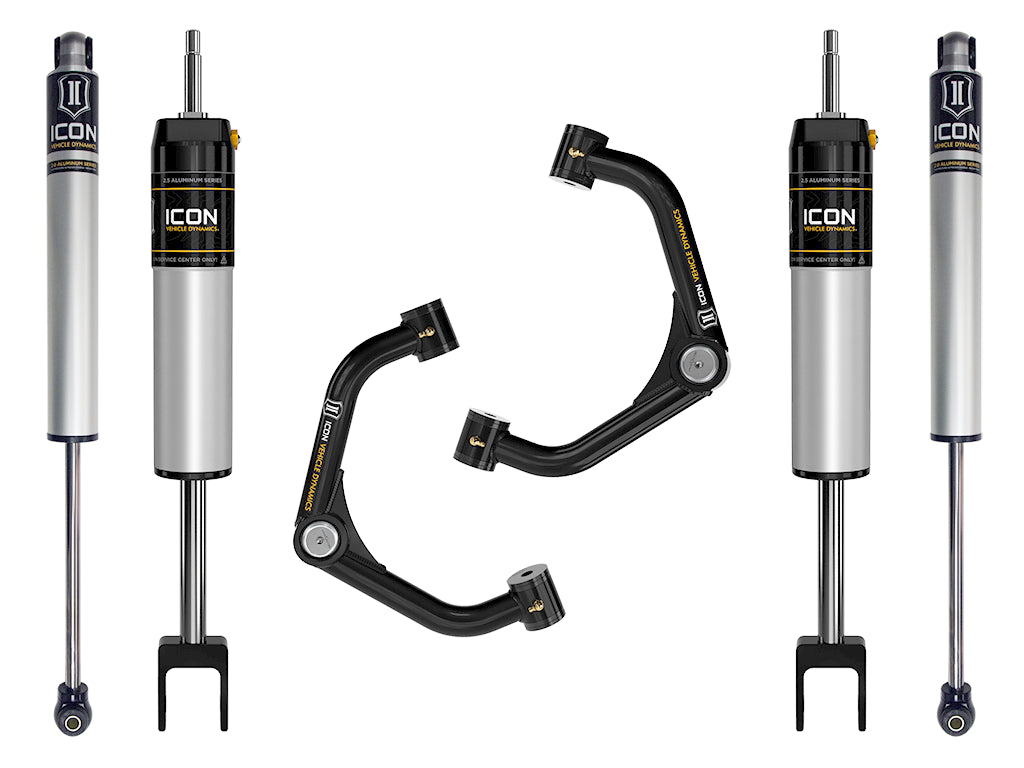

This system features upper control arms with ICON's patented Delta Joint. The Delta Joint is a heavy-duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application - exposure to the elements. The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint. Metal on metal construction and a greaseable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation. What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint.
  • 0-2” Adjustable lift height over stock
  • Vehicle specific tuned 2.5" front and 2.0” rear shocks for superior shock damping and control
  • Improved ride quality over stock with no change in towing capacity
  • Wheel travel increase of 2" over stock
  • 100% Bolt-on system - no drilling, cutting, or welding necessary for install
  • 6061 Aircraft grade aluminum CNC machined components
  • Corrosion resistant anodized aluminum shock bodies

Attributes:

  • GTIN: 00840103419374
  • Brand Name: ICON Vehicle Dynamics
  • 2371: Yes
  • 30: Yes
  • 3097: Yes
  • 3390: Performance
  • 5520: 2
  • Add-On Part: 191011 - TUBULAR UCA BILLET CAP SET
  • OEM Wheels & Tires Fitment: Yes
  • Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
  • Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.5" Backspace / 12mm Offset

Extended Information:

  • Country of Origin: US
  • Emissions : Emissions Compliance Exempt
  • Life Cycle Status: Available To Order

Packing Information:

  • Quantity of Each: 1.0
  • Package UOM: EA
  • Dimension: 31.0000 x 13.0000 x 7.0000 inches
  • Weight: 50.0000 lb
