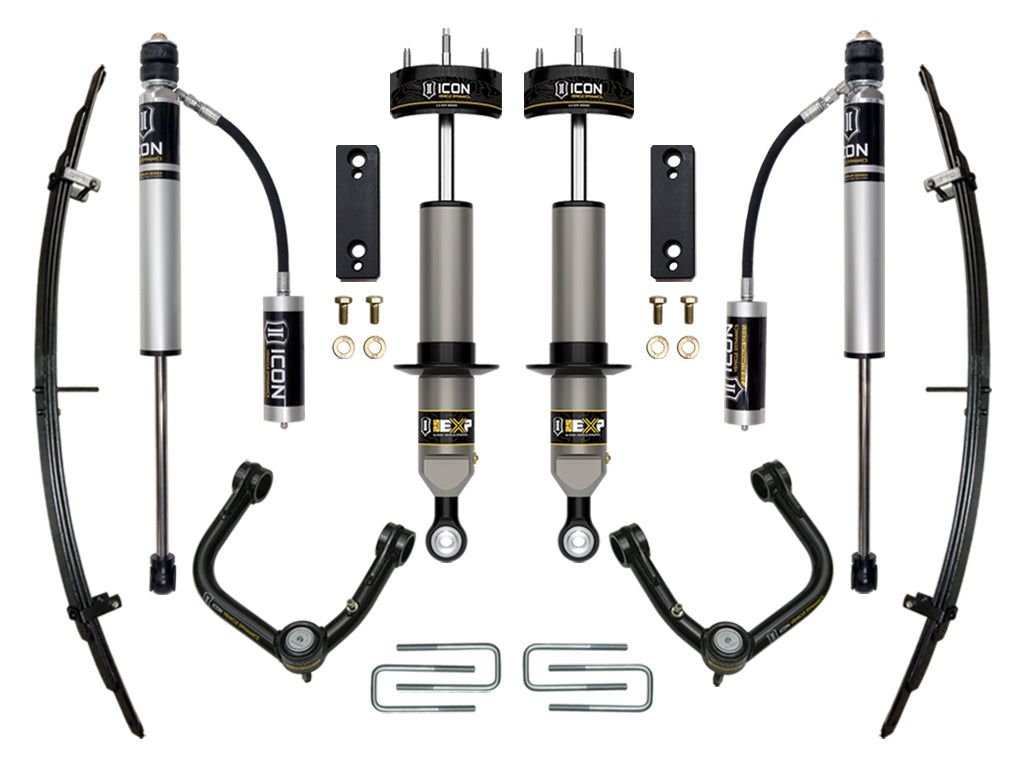

ICON 05-22 Tacoma 1-2" Lift Stage 3 EXP Suspension System Tubular

Rounding out the Stage 3 EXP suspension system are V.S. 2.0 Aluminum Series rear shocks with remote reservoirs specially tailored for the 2005-2022 Tacoma. The 2.0 Aluminum Series shocks are a high-quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Their pairing with the ICON 2.5 EXP Series front coilovers results in balanced vehicle control from front to rear and an excellent overall driving experience for your Tacoma.

• Vehicle specific design for 2005-2022 Toyota Tacoma
• All ICON shock absorbers are fully rebuildable and re-tunable
• 2.5 EXP Series front shocks with internal reservoirs utilize factory coil and coil hardware
• Adjustable front ride heights from 1-2” of front lift over stock with the use of snap ring
• Included sway bar relocation brackets reduce ensure sway bar clearance from EXP coilovers
• Allows for full wheel travel without overstressing OE components
• Tubular UCAs for added strength, durability, and alignment correction for better drivability
• UCAs feature the patented (U.S. Pat. 10731700) Delta Joint for extended longevity
• Rear Add-a-Leaf softens spring rate for improved ride quality while providing 1.5” of rear lift
• 2.0 Aluminum Series remote reservoir rear shocks provide balanced tune with coilovers and increased performance

Attributes:

• GTIN: 00840103421094
• Brand Name: ICON Vehicle Dynamics
• 2371: Yes
• 30: Yes
• 3097: Yes
• 3390: Performance
• Add-On Part: 191011 - TUBULAR UCA BILLET CAP SET
• Maximum Lift Front: 2
• Maximum Lift Rear: 1.5
• Minimum Lift Front: 0

Extended Information:

• Country of Origin: US
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 32.0000 x 6.0000 x 5.0000 inches
• Weight: 102.0000 lb
