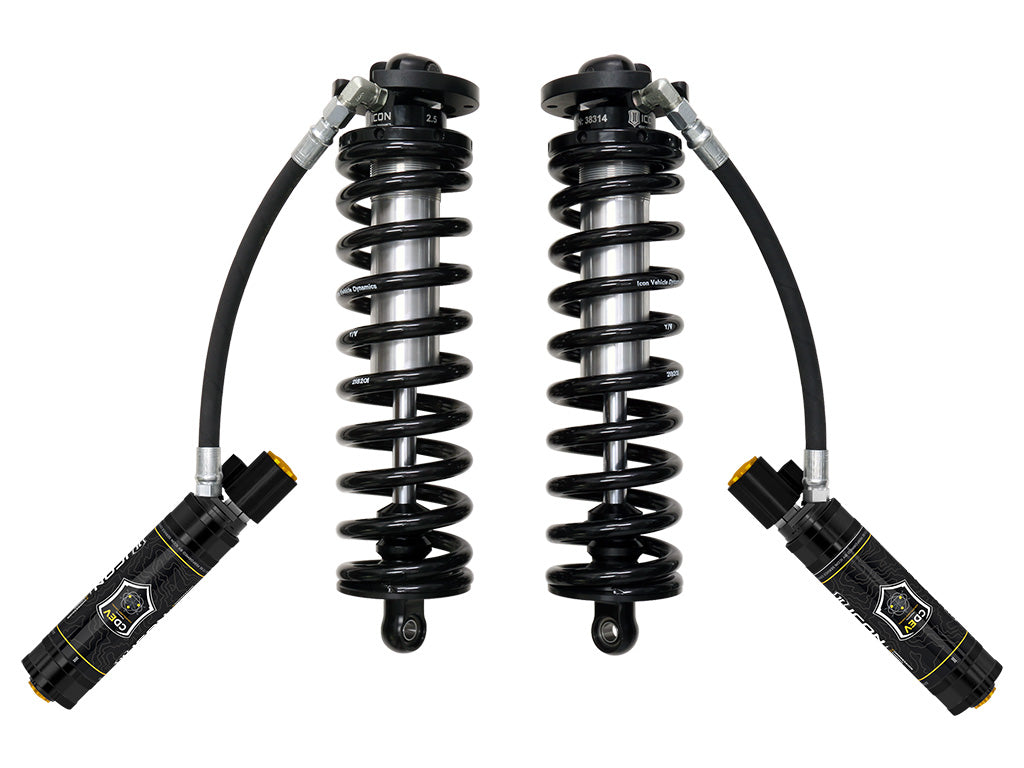

ICON 17-22 Ford F250/350 4WD 2.5-3” Lift 2.5 VS RR/CDEV Coilover Conversion Kit

Compression Damping Electronic Valve (CDEV) is an electronically controlled valve that meters the flow of oil to regulate the amount of damping force that is created by the shock when compressed. This infinitely variable valve can react in less than 40ms and has the ability to make extremely precise adjustments for varying terrain. CDEV’s hydraulic circuits are also custom tailored per application to create the highest resolution and dynamic range allowable for each specific vehicle. Powered by ICON Intelligent Control and proprietary ICON mobile app, the system uses information from the onboard G-force sensor and Gyroscope to perform calculations based on algorithms and user-defined settings to predict terrain and adjust shock settings via the CDEV accordingly.

• Bolt-in system fits in OE coil bucket location
• Fully rebuildable and re-tunable
• Ride height adjustable coilovers (2.5-3" or 3.25-3.75” depending on year of vehicle)
• ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
• Decreased body roll and improved on and off-road ride dynamics
• Vehicle-specific shock valving provides unparalleled ride quality and control
• Coilover conversion allows for addition of optional secondary shocks
• Corrosion resistant CAD plated coilover shock body with 7/8" shaft
• ICON engineered coil springs guaranteed for life against sagging or breakage
• FK Rod End bearings for extended longevity and minimal deflection

Attributes:

• GTIN: 00840103414430
• Brand Name: ICON Vehicle Dynamics
• 2917: Yes
• 408: Center of Eylet
• 409: Top of Upper Mount Plate
• 48: Eyelet
• 49: Mounting Plate
• 50: No
• 51: Yes
• 52: 2.5
• Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
• Adjustable Damping: Electronically
• Coil Over Springs Included: Yes
• Damping Type: Oil
• Dust Shield: No
• Grade Type: Performance
• Material: Aluminum
• Maximum Lift: 3.75
• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required)
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset
• Remote Reservoir: Yes
• Service Parts: 191016 - 7.5" FINNED RESI UPGRADE KIT
• Shaft Diameter: 0.875
• Spring Color: Black
• Spring Material: Steel
• Spring Rate Type: Linear

Extended Information:

• Country of Origin: US
• Emissions : 4
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 31.0000 x 13.0000 x 8.0000 inches
• Weight: 71.0000 lb
