ICON 1998-2007 Toyota Land Cruiser/Lexus LX470 0-3" Lift Stage 2 Suspension System

SKU: FRDK-K53082 Barcode: 00840103417165
Regular price $2,320.40

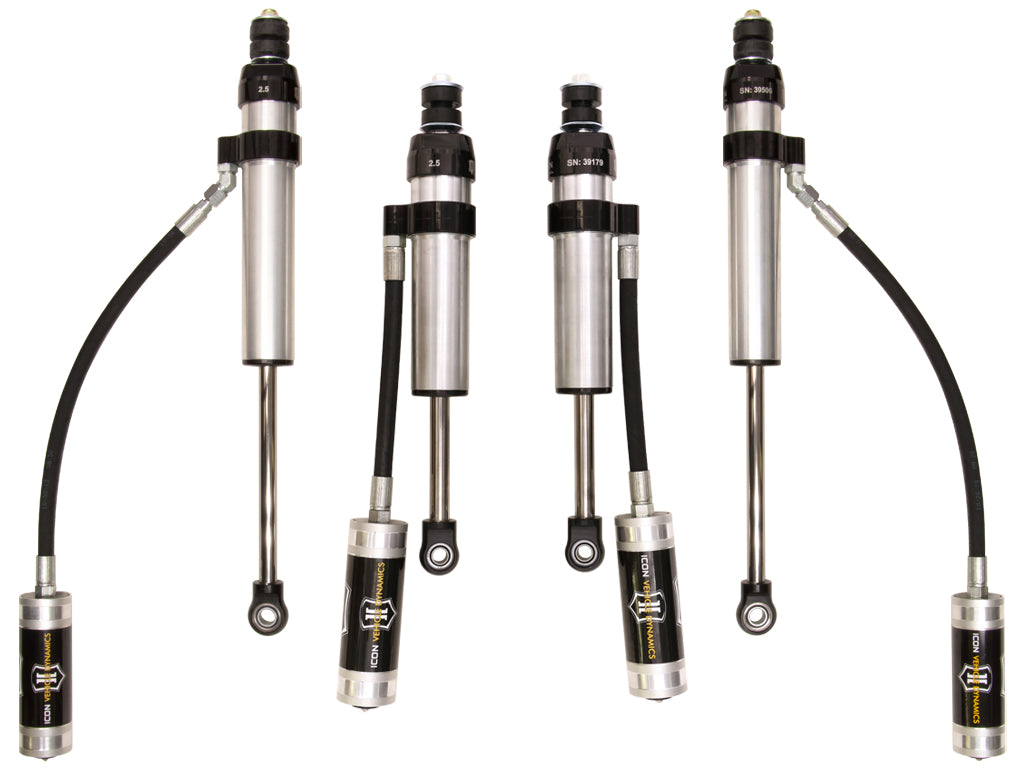

The 1998 - 2007 Toyota Land Cruiser 100 Series has a compact torsion bar IFS front suspension, and requires a lot of work to be done in a small space. When lift is added via torsion bar adjustment there is even more spring energy that must be absorbed to adequately control the vehicle. Keeping this in mind, those looking to achieve 0-3" of lift (aftermarket upper control required) can install the Stage 2 shock system for maximum suspension travel and performance. ICON engineers have developed a unique 2.5” diameter shock system, with remote reservoirs front and rear, that can handle these demands. 2.5 Aluminum Series reservoir shocks front and rear ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during extended off-road use. With a lower spherical rod end bearing and heavy-duty upper stem bushings, deflection is kept to a minimum for precise control of the suspension even under high loads.
  • Vehicle specific tuned 2.5" front and rear shocks for superior shock damping and control
  • Remote reservoirs provided for extended shock damping performance
  • 6061 Aircraft grade aluminum CNC machined components
  • 2.5 Aluminum Series front and rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
  • FK rod end bearings for extended longevity and minimal deflection
  • No cutting or welding necessary for install


  • GTIN: 00840103417165
  • Brand Name: ICON Vehicle Dynamics
  • 222: Chrome
  • 2327: 2.5
  • 2328: Oil
  • 2329: Aluminum
  • 3390: Performance
  • 48: Eyelet
  • 502: 0.875
  • 5126: Silver
  • Add-On Part: 252008 - 2.5 X 13 SHOCK BOOT BLACK (PAIR)
  • Adjustable: No
  • Gas Charged: Yes
  • OEM Wheels & Tires Fitment: Yes
  • Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
  • Recommended Aftermarket Wheels: 17x8.5" w/ 4.75” Backspace / 0mm Offset
  • Upper Mount Type: Stem

Extended Information:

  • Country of Origin: US
  • Emissions : Emissions Compliance Exempt
  • Life Cycle Status: Available To Order

Packing Information:

  • Quantity of Each: 1.0
  • Package UOM: EA
  • Dimension: 39.0000 x 10.0000 x 9.0000 inches
  • Weight: 52.0000 lb
