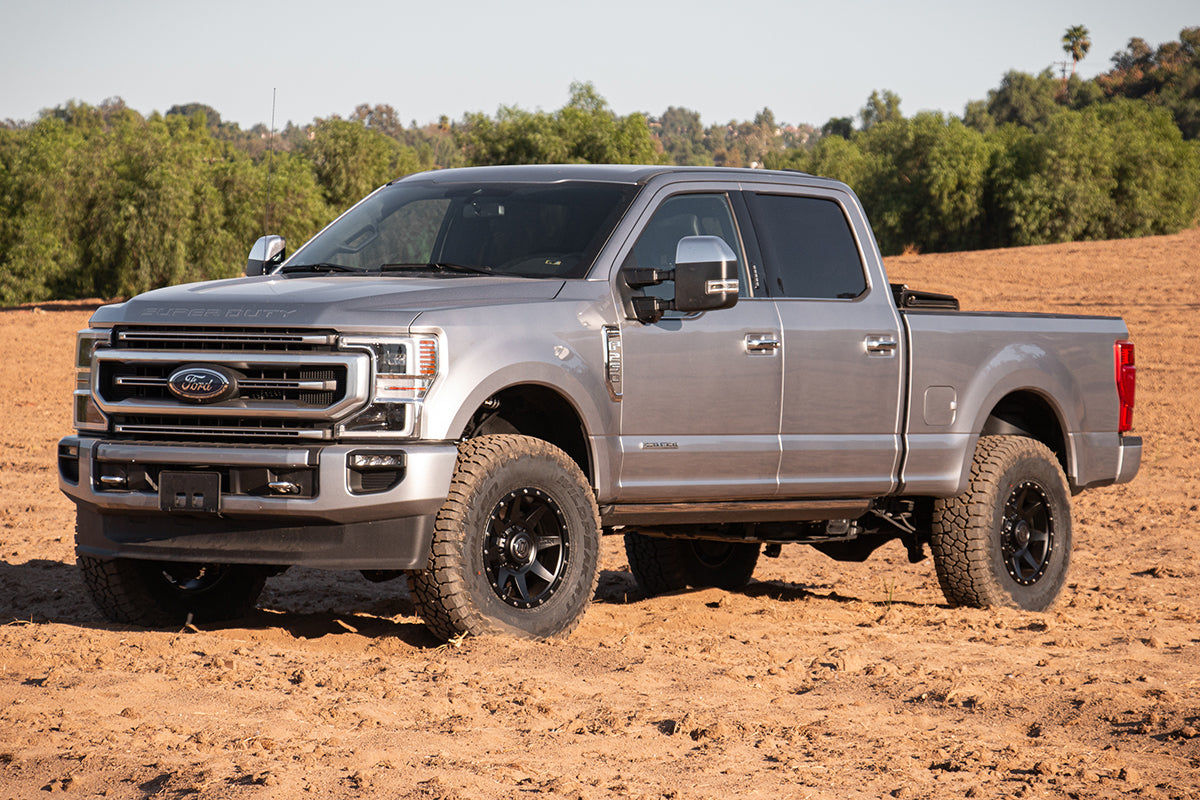

ICON 20-22 Ford F250/F350 4WD 2.5" Lift Stage 6 Suspension Sys W/ Leaf Spring

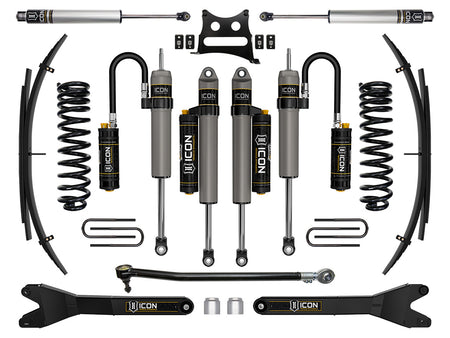

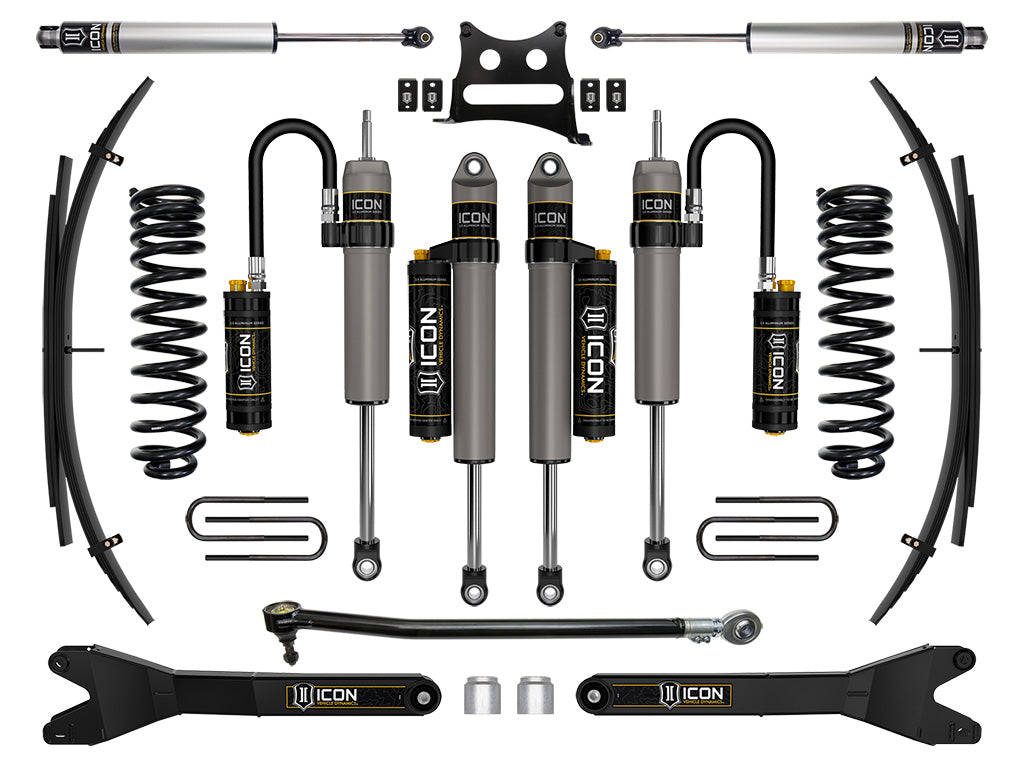

This Stage 6 system sees the inclusion of the ICON Vehicle Dynamics Ford Super Duty Radius Arm System that feature a sealed pivot bushing that minimizes road feedback and ensures a long life and quiet operation. Their on vehicle caster adjustment allows for proper caster while eliminating the need for caster bushings or drop brackets. Additionally, their fabricated, fully boxed design ensures strength and utilizes a profile optimized for tire clearance at full steering lock, making a 37” tall tire clear without coming in contact with the radius arm.

• ICON engineered dual rate coil springs provide 2.5” of front lift over stock
• Lifetime guarantee that springs won’t sag or break
• No drive shaft modifications required
• Shocks are fully rebuildable and re-tunable
• 100% Bolt-on system - no drilling, cutting or welding necessary for install
• Vehicle specific tuned remote reservoir front and piggyback reservoir rear 2.5 Aluminum Series shocks
• Front and rear shocks equipped with CDC Valves for 10 settings of compression damping adjustment, from soft to hard
• On-vehicle adjustable track bar for optimum front axle centering and minimal deflection
• Dual steering stabilizer kit for smooth wheel control while driving
• Fabricated radius arms offer on vehicle caster adjustment, increased strength, and improved tire clearance at steering lock
• Leaf spring expansion packs and blocks for more compliant ride quality and reduced axle wrap
• Increased wheel travel and improved ride quality over stock with no change in towing capacity
• Less body-roll than stock

Attributes:

• GTIN: 00840103423159
• Brand Name: ICON Vehicle Dynamics
• 2064: Steel
• 2371: Yes
• 30: Yes
• 3096: Black
• 3097: Yes
• 3390: Performance
• 6111: 7
• 7325: 2
• Add-On Part: 191014 - .25" COLLAR SPANNER PIN WRENCH
• Dual Rate Coil Springs: Yes
• Front Spring Rate Type: Progressive Dual Rate
• Maximum Lift Front: 2.5
• Maximum Lift Rear: 2
• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Tires: 35" x 12.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset

Extended Information:

• Country of Origin: United States
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 54.0000 x 48.0000 x 19.0000 inches
• Weight: 439.0000 lb
