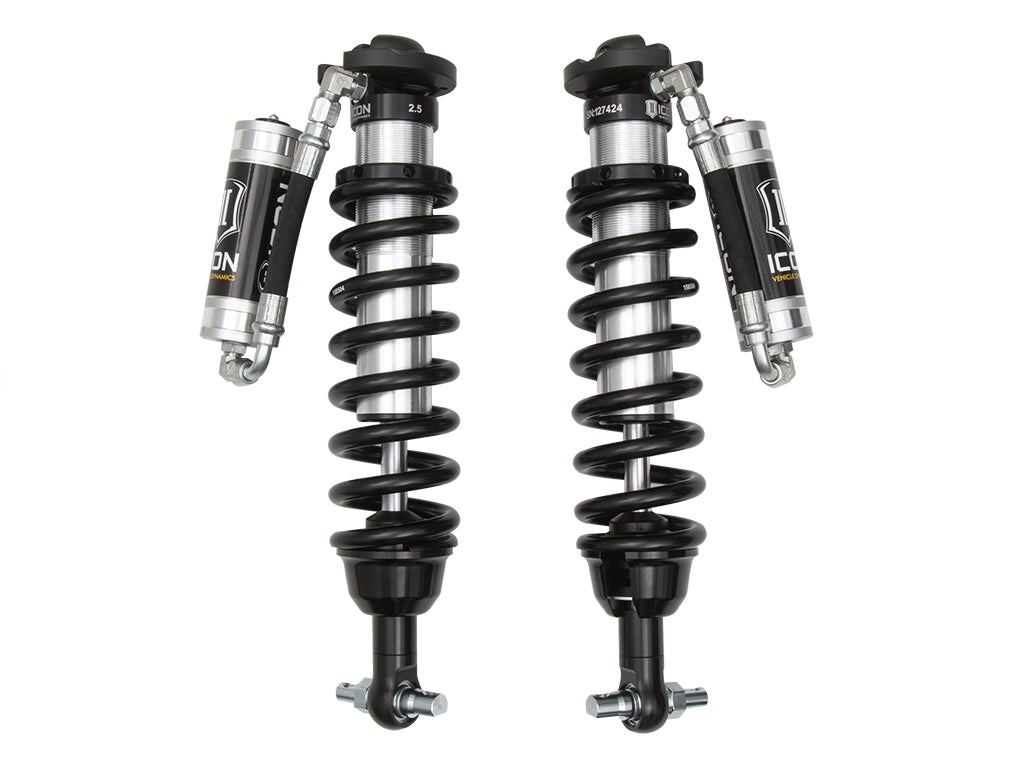

ICON 2019-2023 Ford Ranger Extended Travel 2.5 VS Remote Reservoir Coilover Kit

ICON Vehicle Dynamics V.S. Series 2.5” remote reservoir coilover shocks are an incredible upgrade for the front end of the 2019-2023 Ford Ranger. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while offering 0-3.5” of lift height adjustability for use of larger, more aggressive wheel and tire combinations. The larger 2.5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. When paired with ICON rear 2.0 Aluminum Series or 2.5" Series shocks, vehicle control will be balanced front to rear resulting in the best overall driving experience for your Ranger.

• Increased wheel travel over stock
• FK Rod End bearings for extended longevity and minimal deflection
• 100% Bolt-on - no cutting or welding necessary for installation
• Vehicle specific tuned front shocks for superior shock damping and control
• External reservoir to attain cooler operating temperatures during extended off-road use
• Improved ride quality over stock both on and off-road
• Height-adjustable coilovers offer 0-3.5” of lift height adjustment
• ICON engineered coil springs
• 6061 Aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated shock body with 7/8" induction hardened, chrome plated shaft
• High strength alloy CNC machined lower bar pin

Attributes:

• GTIN: 00840103408569
• Brand Name: ICON Vehicle Dynamics
• 2917: Yes
• 408: Flat on Bar Pin
• 409: Top of Upper Mount Plate
• 48: BAR PIN
• 49: Mounting Plate
• 51: Yes
• 52: 2.5
• Add-On Part: 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)
• Adjustable Damping: NO
• Coil Over Springs Included: Yes
• Damping Type: Oil
• Dust Shield: No
• Grade Type: Performance
• Material: Aluminum
• Maximum Lift: 3.5
• Minimum Lift: 0
• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Tires: 33"x11.25" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5 w/ 5.75" Backspace / 25mm Offset
• Remote Reservoir: Yes
• Service Parts: 191016 - 7.5" FINNED RESI UPGRADE KIT
• Shaft Diameter: 0.875
• Spring Color: Black
• Spring Material: Steel
• Spring Rate Type: Linear

Extended Information:

• Country of Origin: US
• Emissions : 4
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 27.0000 x 12.0000 x 8.0000 inches
• Weight: 55.0000 lb
