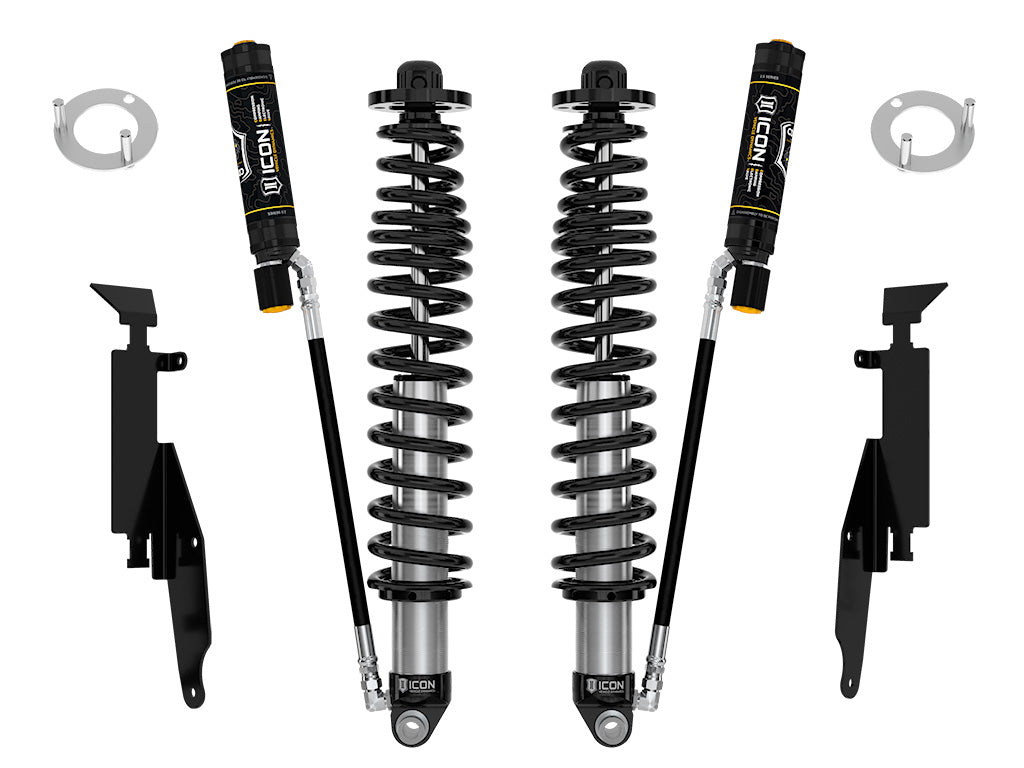

ICON 2021-2023 Ford Bronco Rear 1.25-3” Lift 2.5 VS RR/CDEV Coilover Kit Heavy Rate Spring

These rear coilovers are mounted in a shaft up orientation and feature unique ICON engineered progressive dual rate coil springs that provide extra weight capacity for those who frequently load out their Broncos with extra gear and equipment while maintaining excellent on- and off-road performance characteristics. Their shaft up orientation requires the reservoir hose to be routed along the rear lower links so ICON offers hose bracket options for the OE or ICON tubular links while ICON billet links incorporate this bracketry into their design.

• Increased wheel travel (up to 14”) and ride quality over stock
• FK rod end bearings for extended longevity and minimal deflection
• Fully rebuildable and re-tunable
• 100% Bolt-on - no drilling, cutting or welding necessary for installation
• Vehicle specific tuned for superior shock damping and control
• Remote reservoirs maintain cooler operating temperatures during extended off-road use
• ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
• ICON Intelligent Control (IIC) uses onboard sensors to monitor G-forces and movement of vehicle chassis along with user defined settings to actively make near instantaneous compression damping changes
• Adjustable up to 2-3" of rear lift height on non-Sasquatch or 1.25-2.25” of rear lift on Sasquatch Broncos
• Unique ICON engineered dual rate coil springs with increased spring rates for heavier equipped Broncos
• 6061 Aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated shock bodies with 7/8" diameter shaft

Attributes:

• GTIN: 00840103424224
• Brand Name: ICON Vehicle Dynamics
• 2917: Yes
• 408: Top of Mounting Plate
• 409: Center of Eylet
• 48: Eyelet
• 49: Mounting Plate
• 50: No
• 51: Yes
• 52: 2.5
• Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
• Adjustable Damping: Electronically
• Coil Over Springs Included: Yes
• Damping Adjustment Type: Electronic
• Damping Type: Oil
• Dust Shield: No
• Grade Type: Performance
• Material: Aluminum
• Maximum Lift: 3
• Minimum Lift: 1.25
• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Tires: (With Sasquatch Package): 35" x 12.50" (37" tires require coilover bump stop spacers)
• Recommended Aftermarket Wheels: (With Sasquatch Package): ICON Alloys - 17x8.5" w/ 4.75" Backspace / 0mm Offset
• Remote Reservoir: Yes
• Service Parts: 252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT
• Shaft Diameter: 0.875
• Spring Color: Black
• Spring Material: Steel
• Spring Rate Type: Progressive Dual Rate

Extended Information:

• Country of Origin: US
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 38.0000 x 13.0000 x 8.0000 inches
• Weight: 70.0000 lb
