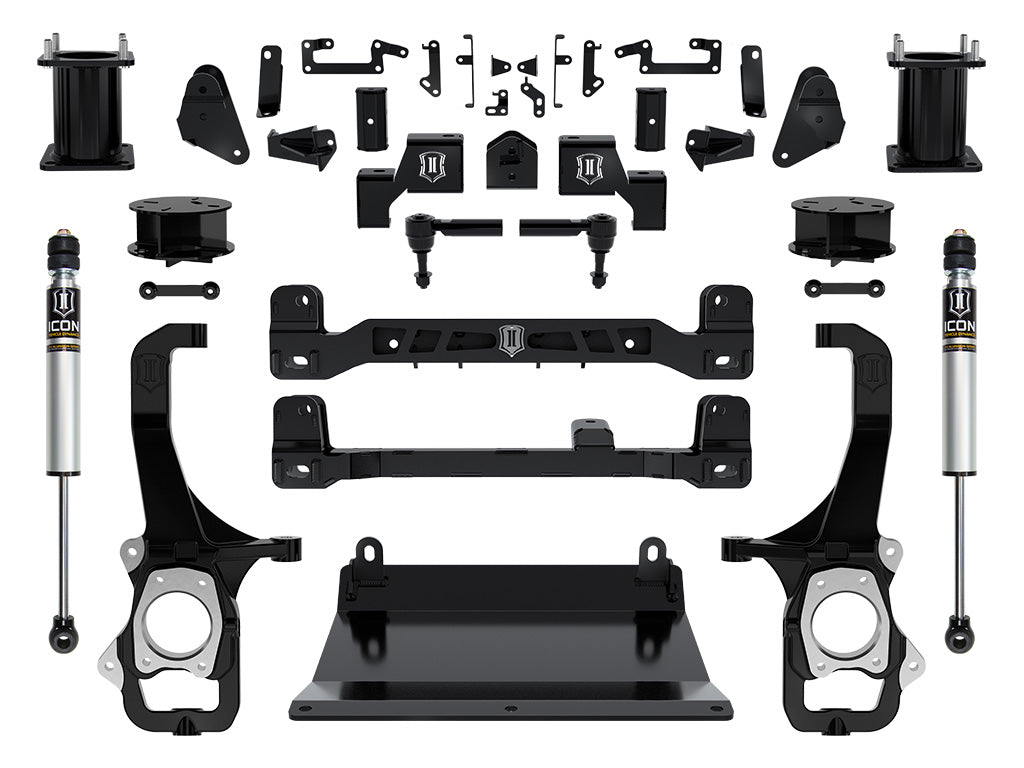

ICON 2022-2023 Toyota Tundra 6" Lift Stage 1 Suspension System

SKU: FRDK-K53271 Barcode: 00840103425313
Regular price $3,569.55
  • Optimized design to fit 37" tires with full articulation (larger tires may fit but fender trimming and modifications will be required)
  • 2.0 Aluminum Series rear shocks to improve rear suspension performance
  • Rear coil spring spacer kit to provide lift while retaining factory rear coil springs
  • Improved rear sway bar links and mounts, and rear track bar bracket to reduce bind in the rear suspension
  • Maintains factory track width
  • Front coilover spacer kit with heavy duty steel construction
  • Provides 6" front suspension lift with only 4" of crossmember drop
  • Single piece high-strength ductile iron steering knuckles with built-in 4" drop
  • Hight clearance front crossmembers and front skid plate, CNC Laser Cut and brake-formed from 1/4-inch steel plate
  • Included sway bar drop brackets reduce bind in OE sway bar links
  • Front and rear heavy-duty bump stop brackets
  • High angle outer tie-roads feature durable, metal on metal greaseable tie rod ends

Attributes:

  • GTIN: 00840103425313
  • Brand Name: ICON Vehicle Dynamics
  • 2371: No
  • 30: Yes
  • 3097: Yes
  • 3390: Performance
  • 9900: No
  • Add-On Part: 58461DJ - 22-23 TUNDRA/23 SEQUOIA TUBULAR UCA DJ PRO KIT
  • Adjustable Damping: No
  • Maximum Lift Front: 6
  • Maximum Lift Rear: 3
  • OEM Wheels & Tires Fitment: No
  • Recommended Aftermarket Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
  • Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.625” Backspace / 16mm Offset

Extended Information:

  • Country of Origin: US
  • Emissions : 4
  • Life Cycle Status: Available To Order

Packing Information:

  • Quantity of Each: 1.0
  • Package UOM: EA
  • Dimension: 25.0000 x 24.0000 x 9.0000 inches
  • Weight: 233.0000 lb
