ICON 2023 Ford F-250/F-350 Super Duty 2.0 VS Dual Steering Stabilizer Kit

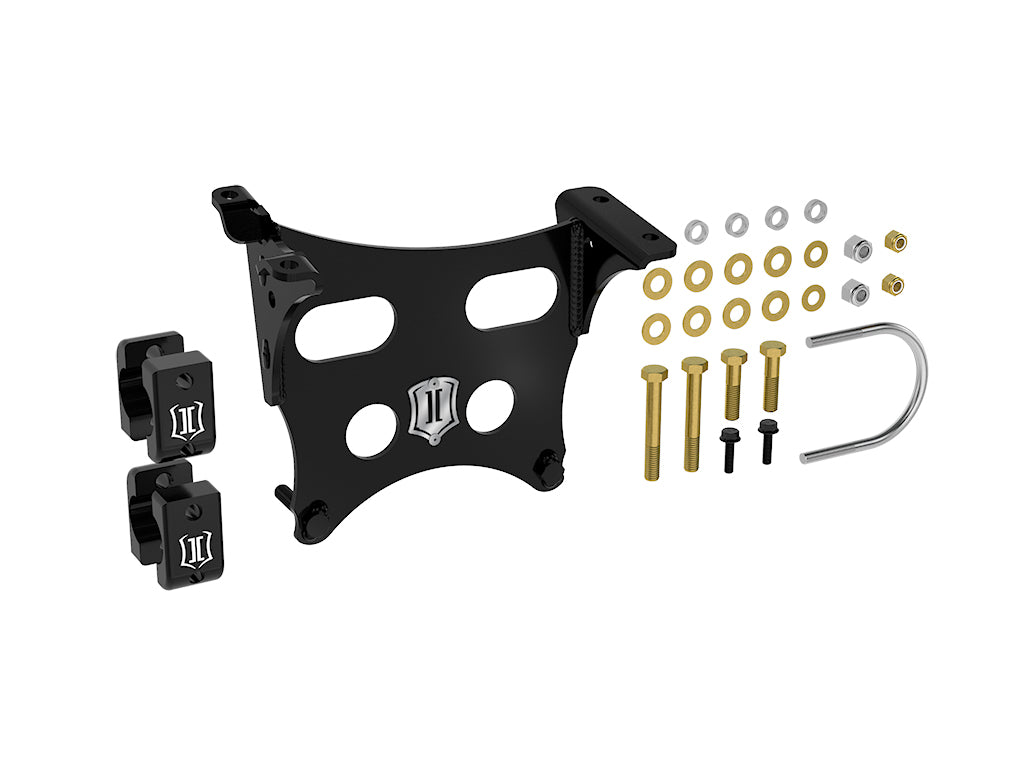

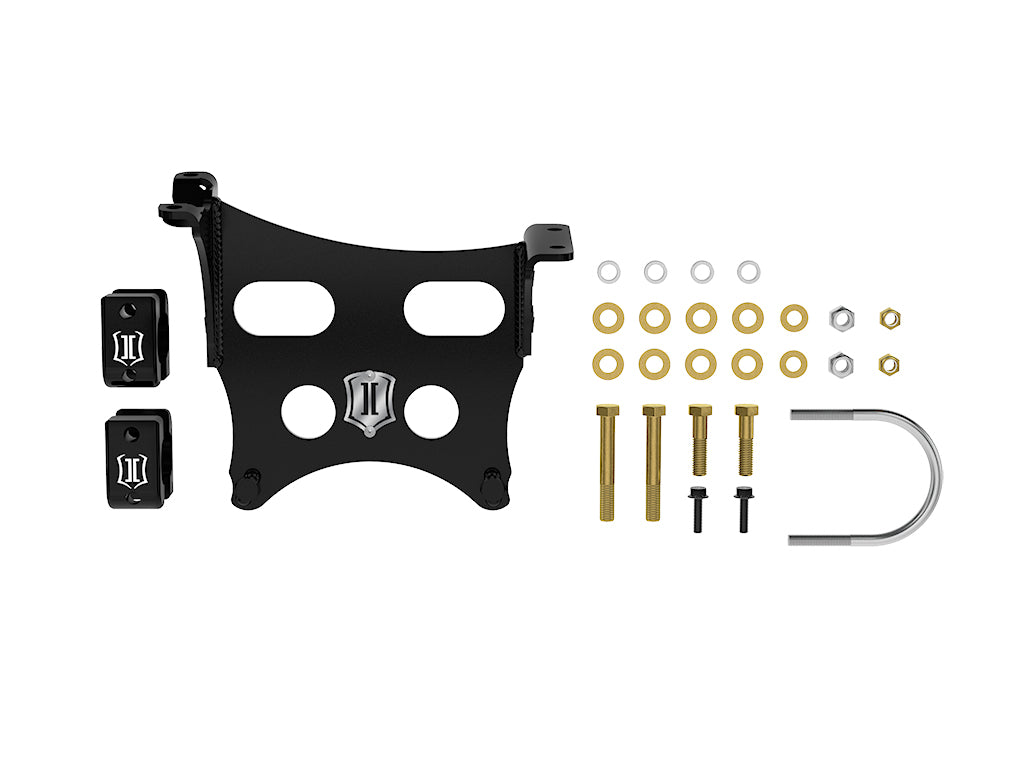

The ICON 2023 Ford Super Duty F-250 / F-350 4WD Dual Steering Stabilizer System is designed to minimize bump steer feedback and smooths out the roughest of terrains felt through the steering wheel. By mounting the 2.0 Aluminum Series shock absorbers in an opposing manner the push/pull effect from their internal pressure is canceled out. This allows for far greater steering damping than available from a single, similarly sized steering stabilizer shock while ensuring the truck tracks straight down the road. This system bolts to the factory differential cover and wraps around the axle for a secure fit without cutting, welding or drilling. The shocks are connected to the tire rod with black anodized billet aluminum clamps for a secure fit and clean finish.

• Dual opposing design eliminates the push/pull sensation associated with traditional stabilizers
• Dual 2.0 aluminum Series shocks offer Increased steering damping over stock unit
• Provides symmetrical steering feel throughout input range
• CNC laser cut steel components
• Semi-gloss black powder coat finish
• 6061 billet aluminum tie rod clamps, anodized for corrosion resistance
• 100% bolt-on installation

Attributes:

• GTIN: 00840103422800
• Brand Name: ICON Vehicle Dynamics
• 10: Steel
• 17: Black
• 3145: Specific
• 3390: Performance
• Add-On Part: 36511 - 99-UP FSD 4WD STABILIZER (DUAL OPPOSING) 2.0 VS IR
• Finish: Powdercoated
• Mounting Hardware Included: yes

Extended Information:

• Country of Origin: US
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 14.0000 x 12.0000 x 6.0000 inches
• Weight: 13.0000 lb
