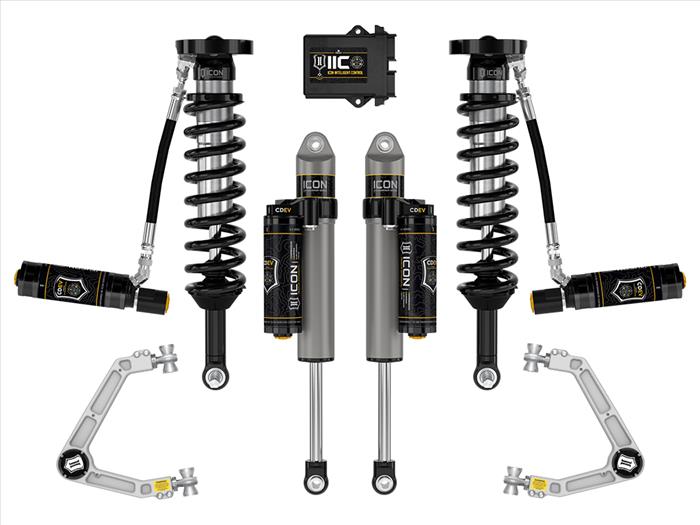

ICON 2023 GMC Canyon AT4 Denali & Elevation/Chevrolet Colorado Trail Boss 1.75-2.5" Lift Stage 6 Suspension System W/ Billet Upper Control Arms
Regular price
$7,108.30
Couldn't load pickup availability
This system features upper control arms with ICON's patented Delta Joint PRO. Delta Joint PRO is ICON's innovative new suspension articulation joint which combines the durability and longevity of factory style ball joints with performance and strength that exceeds traditional motorsports-style ball joints. The Delta Joint PRO features a new rebuildable, serviceable design in which any component may be removed, inspected, and replaced without having to purchase a whole new joint. Strength and durability are improved by using a larger ball with 56% more bearing surface than our standard Delta Joint, along with improved lubrication sealing. But improved performance is at the heart of the Delta Joint PRO, with a full 90 degrees of articulation, from one extreme to the other. This represents a 14% improvement in range of motion, over the highly capable original Delta Joint, allowing for maximum bind-free suspension movement through the complete range of travel. The Delta Joint PRO is built to take the abuse, with a chromoly ball and shaft that has a bearing surface hardened to Rockwell C 55. The replaceable races are made of graphite-impregnated sintered metal, machined to the finest tolerance to provide a flawless, metal-to-metal bearing interface. We also redesigned the lubrication system, with lubricant channels that distribute grease more efficiently without extending past the bearing seal.
- 20% increase in wheel travel over stock and improved ride quality with no change in towing capacity
- High strength alloy CNC machined lower bar pin
- FK rod end bearings for extended longevity and minimal deflection
- 2.5 Aluminum Series rear piggyback reservoir shocks provide increased performance and balanced tune with coilovers
- 100% Bolt-on system - no drilling, cutting, or welding necessary for install
- Vehicle specific tuned front and rear shocks for superior damping and vehicle control
- ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
- ICON Intelligent Control (IIC) uses onboard sensors to monitor G-forces and movement of vehicle chassis along with user defined settings to actively make near instantaneous compression damping changes
- Adjustable Coilovers from 1.75-2.5" of front lift height over stock
- 2.5 Series extended travel front coilovers with remote reservoirs for improved shock cooling and performance
- Billet Upper Control Arms with Delta Joint PRO ball joints for added strength, durability, and alignment spec range with on-vehicle adjustability
- 6061 Aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts on all shock absorbers
Attributes:
- GTIN: 00840103427324
- Brand Name: ICON Vehicle Dynamics
- 2064: Steel
- 2371: Yes
- 30: Yes
- 3096: Black
- 3097: Yes
- 3390: Performance
- 7325: 2
- Add-On Part: 191009 - ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5)
- Adjustable Damping: Yes
- Damping Adjustment Type: Electronic
- Front Spring Rate Type: Linear
- Maximum Lift Front: 2.5
- Minimum Lift Front: 1.75
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required)
- Recommended Aftermarket Wheels: 17x8.5" w/ 5.75” Backspace / 25mm Offset
Extended Information:
- Country of Origin: US
- Emissions : Emissions Compliance Exempt
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1.0
- Package UOM: EA
- Dimension: 27.0000 x 12.0000 x 8.0000 inches
- Weight: 115.0000 lb
