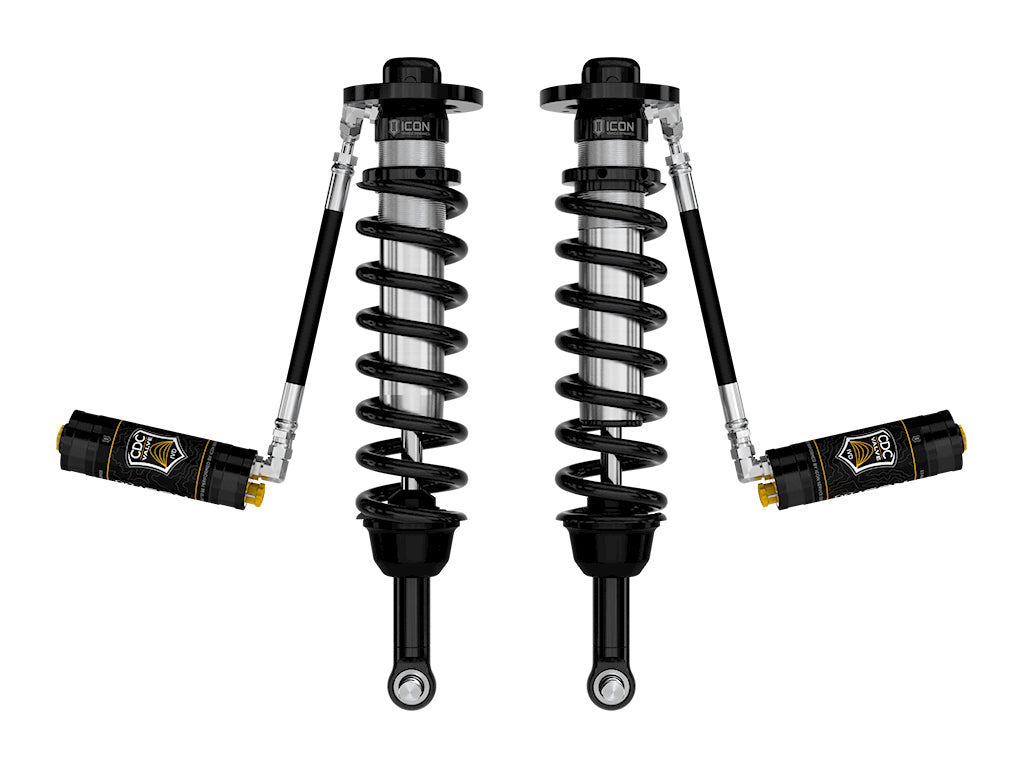

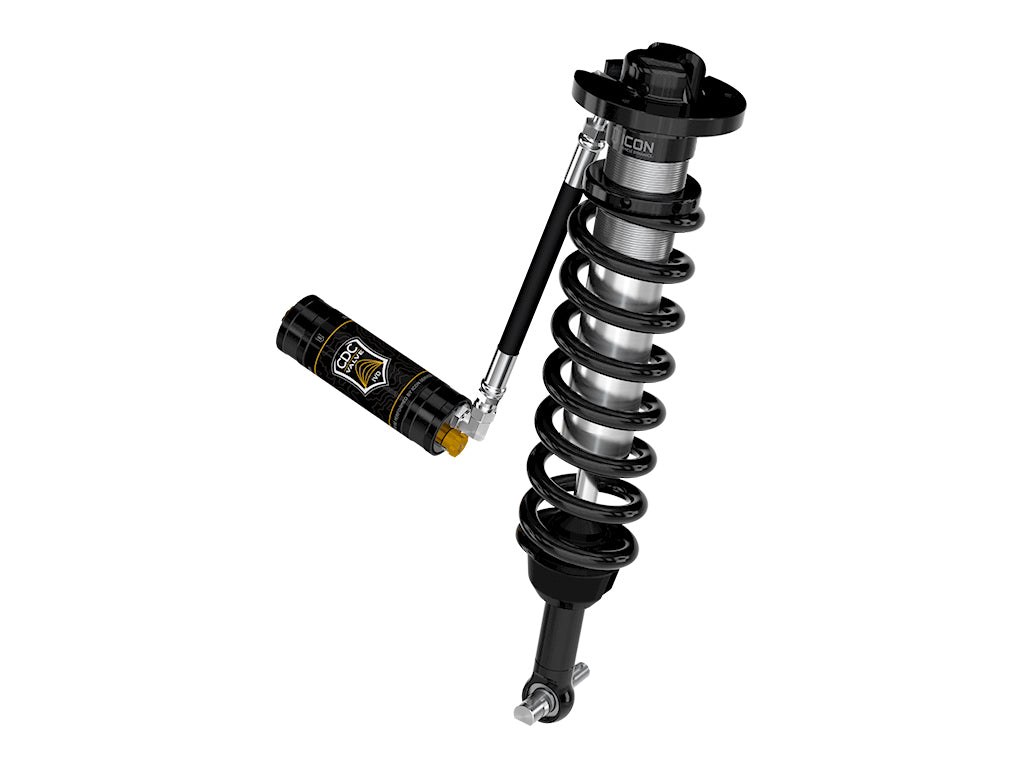

ICON 21-23 Ford F150 4WD 2.75-3.5" Lift Front 2.5 VS RR Coilovers W/ CDCV Pair

ICON Vehicle Dynamics V.S. Series 2.5” coilover shocks are an incredible upgrade for the front end of 2021-2023 Ford F-150 4WD trucks. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while 2.75-3.5” of lift height adjustability allows the use of larger, more aggressive wheel and tire combinations. The larger 2.5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. ICON's exclusive Compression Damping Control Valves are included for precisely dialing in your suspension performance. CDCV controls fluid flow under compression, allowing you to achieve the perfect tune whether driving on the street, slow-crawling through the rocks or mobbing across the desert at full throttle. When paired with ICON rear 2.0 Aluminum Series or 2.5 Series shocks vehicle control will be balanced front to rear, resulting in the best overall driving experience for your F-150 truck.

• Increased wheel travel and ride quality over stock
• High strength alloy CNC machined lower bar pin
• 100% Bolt-on - no cutting or welding necessary for installation
• FK rod end bearings for extended longevity and minimal deflection
• Vehicle specific tuned for superior shock damping and control
• Adjustable for 2.75-3.5" of lift height over stock
• Remote reservoir to attain cooler operating temperatures during extended off-road use
• ICON CDCV equipped for 10 settings of external compression damping adjustment
• ICON engineered coil Springs
• 6061 Aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated shock body with 7/8" shaft

Attributes:

• GTIN: 00840103423692
• Brand Name: ICON Vehicle Dynamics
• 2917: yes
• 408: Center of Eylet
• 409: Top of Upper Mount Plate
• 48: BAR PIN
• 49: Mounting Plate
• 50: No
• 51: yes
• 52: 2.5
• Add-On Part: 191009 - ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5)
• Adjustable Damping: Yes
• Coil Over Springs Included: Yes
• Damping Adjustment Type: Manual
• Damping Type: Oil
• Dust Shield: No
• Grade Type: Performance
• Material: Aluminum
• Maximum Lift: 3.5
• Minimum Lift: 2.75
• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Tires: 34" x 12.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset
• Remote Reservoir: Yes
• Service Parts: 252001 - 2.5 FIXED SPANNER WRENCH
• Shaft Diameter: 0.875
• Spring Color: Black
• Spring Material: Steel
• Spring Rate Type: Linear

Extended Information:

• Country of Origin: US
• Emissions : 4
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 31.0000 x 13.0000 x 7.0000 inches
• Weight: 63.0000 lb
