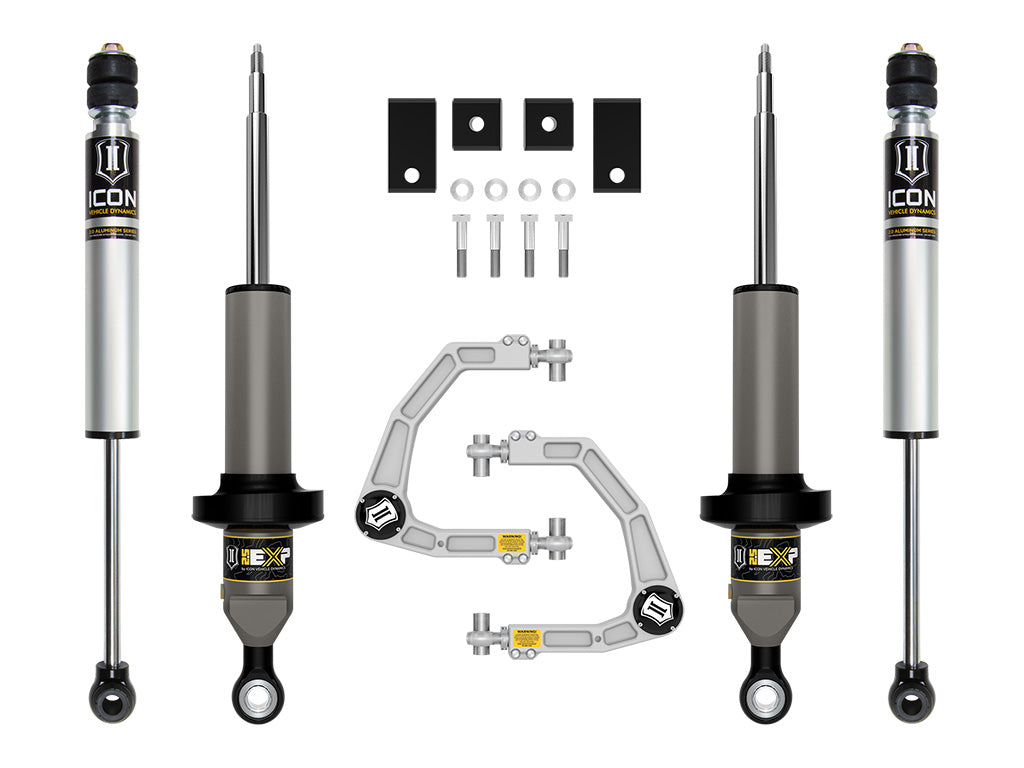

ICON 22-23 Toyota Tundra 0-3" Lift Stage 2 2.5 EXP Suspension System Billet

Rounding out the Stage 2 suspension system are V.S. 2.0 Aluminum Series rear shocks specially tailored for the 2022-2023 Tundra. The 2.0 Aluminum Series shocks are a high-quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Their pairing with the ICON 2.5 EXP Series front coilovers results in balanced vehicle control from front to rear and an excellent overall driving experience for your Tundra.

• Vehicle specific design for 2022-2023 Toyota Tundra
• 100% Bolt-on system - no drilling, cutting, or welding necessary for install
• 2.5 EXP Series front shocks with internal reservoirs utilize factory coil and coil hardware
• Adjustable front ride heights from 0-3” of front lift over stock with the use of snap ring and included billet UCAs
• Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
• Included sway bar drop brackets reduce bind in OE sway bar links
• Allows for full wheel travel without overstressing OE components
• 2.0 Aluminum Series rear shocks provide balanced tune with coilovers and increased performance
• All ICON shock absorbers are fully rebuildable and re-tunable

Attributes:

• GTIN: 00840103420622
• Brand Name: ICON Vehicle Dynamics
• 2371: Yes
• 30: Yes
• 3097: Yes
• 3390: Performance
• 5520: 3
• Add-On Part: 191013 - NIPPLE GREASING ADAPTER KIT
• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Tires: 35" x 12.50" (Minor fender trimming and modifications may be required)
• Recommended Aftermarket Wheels: 17x8.5" w/ 5.75” Backspace / 25mm Offset

Extended Information:

• Country of Origin: US
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 32.0000 x 6.0000 x 5.0000 inches
• Weight: 61.0000 lb
