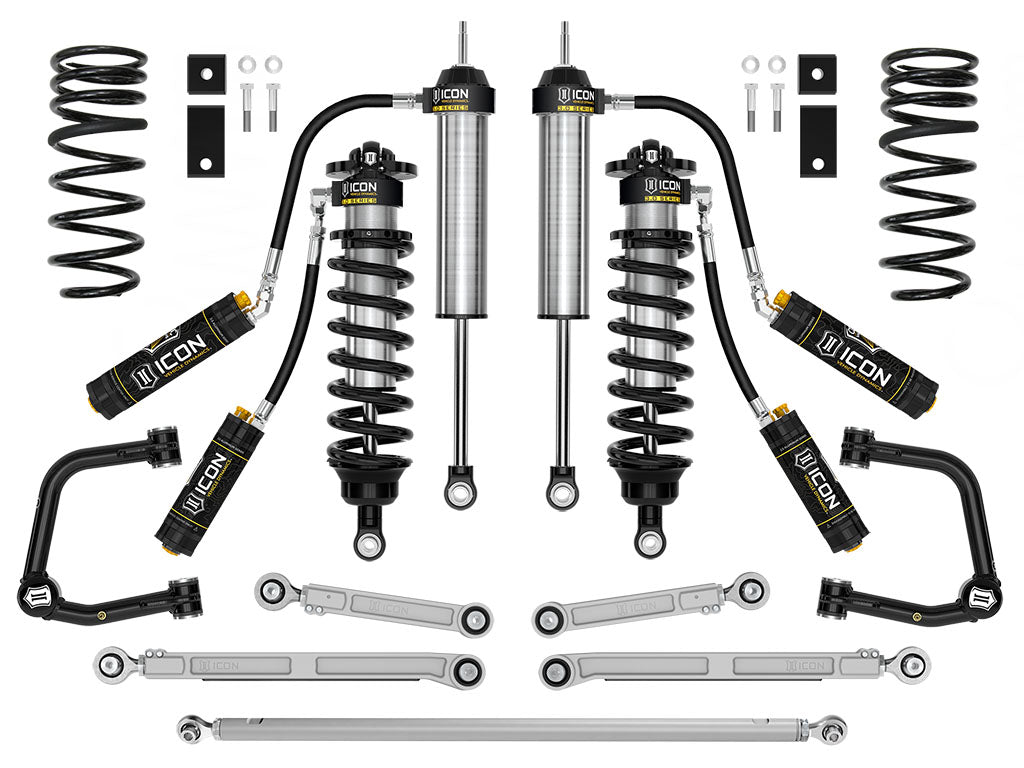

ICON 22-23 Toyota Tundra 2-3.25" Lift Stage 3 (TRD) 3.0 Susp System Tubular

Rounding out the Stage 3 suspension system are 3.0 Series rear remote reservoir shocks specially tailored for the 2022-2023 Tundra to yield 20% increase in wheel travel over stock. 3.0 Series shocks also boast 50% more piston surface area compared to 2.5 Series shocks, offering outstanding performance off-road and a smooth ride on the street. Increased internal oil volume and more external surface area compared to 2.5 Series Shocks, plus their remote reservoirs, offer even greater heat dissipation and resistance to shock fade under hard use. Also equipped with CDC Valves, these offer 10 settings of compression damping adjustment from soft to hard. Their pairing with the ICON V.S. 3.0 Series CDCV front coilovers results in balanced vehicle control from front to rear and an excellent overall driving experience for your Tundra.

• Vehicle specific design for 2022-2023 Toyota Tundra
• Triple rate rear coil springs improve performance and ride quality while providing .75" of rear lift (TRD models)
• On-vehicle adjustable rear track bar properly centers rear axle while also improve rear suspension performance
• 3.0 Series rear remote reservoir shocks provide maximum performance, 20% increase in wheel travel, and balanced tune with coilovers
• All ICON shock absorbers are fully rebuildable and re-tunable
• 3.0 Series front coilovers with ICON’s multi-stage, tunable hydraulic “Bump Zone”
• Adjustable front ride heights from 2-3.25” of front lift over stock when used with included tubular UCAs
• All shock absorbers equipped with CDC Valves for 10 settings of compression damping adjustment, from soft to hard
• Tubular UCAs for added strength, durability, and alignment correction for better drivability
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
• Included sway bar drop brackets reduce bind in OE sway bar links
• Allows for up to 40% increase in front wheel travel over stock without overstressing OE components
• Billet rear upper and lower links improve rear end articulation and allow for on-vehicle pinion angle adjustment

Attributes:

• GTIN: 00840103421858
• Brand Name: ICON Vehicle Dynamics
• 2064: Steel
• 2371: Yes
• 30: Yes
• 3096: Black
• 3097: Yes
• 3390: Performance
• 5782: Closed
• 5783: Closed
• 7325: 2
• 7326: 2
• Add-On Part: 191010 - ICON RAPTOR 3.0 COIL WRAP W/LOGO PAIR
• Front Spring Rate Type: Linear
• Maximum Lift Front: 3.25
• Maximum Lift Rear: 1.25
• Minimum Lift Front: 2
• Rear Spring Rate Type: Progressive Triple Rate

Extended Information:

• Country of Origin: US
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 33.0000 x 15.0000 x 10.0000 inches
• Weight: 236.0000 lb
