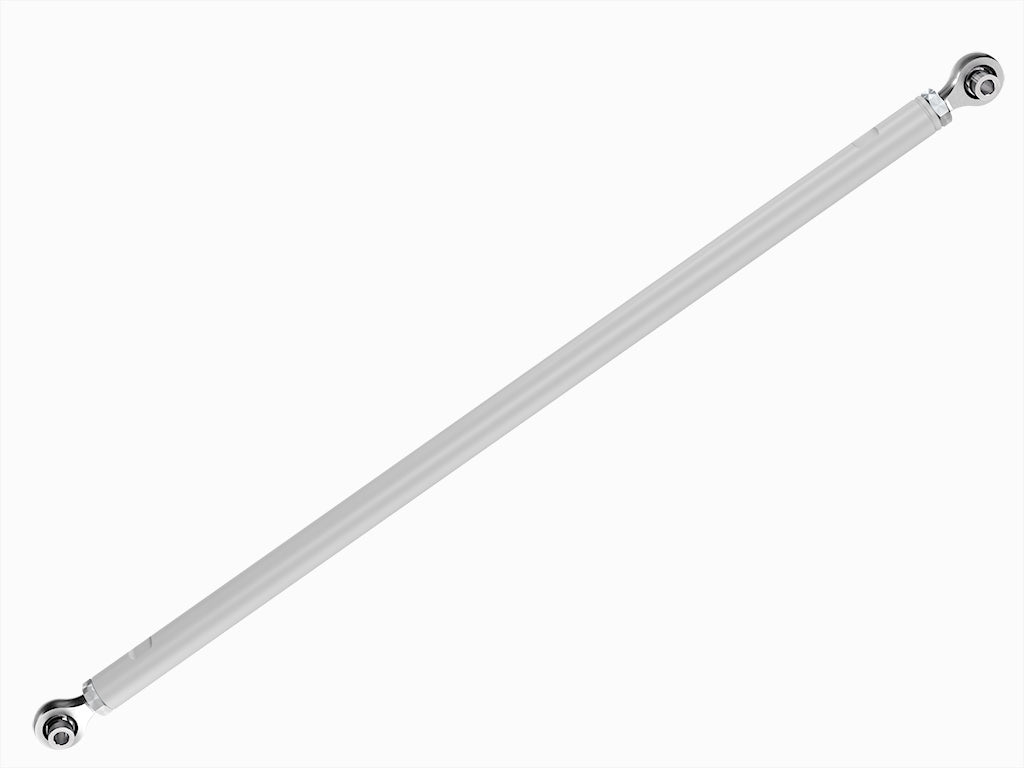

ICON 22-23 Toyota Tundra/23 Toyota Sequoia Rear Billet Adjustable Track Bar Kit

The ICON Billet Rear Adjustable Track Bar helps center the axle of your lifted 2022-2023 Toyota Tundra or 2023 Toyota Sequoia. Threaded rod ends allow easy “on-vehicle” fine adjustment of track bar length without requiring removal or disassembly of the track bar. Simply loosen the jam nuts then rotate the bar, using the machined wrench flats, to adjust link length. This allows for easy correction of axle location and dialing in precise tracking whenever adjustments are made to ride height. The track bar is CNC machined from solid 6061 aluminum bar, and anodized to match the look of ICON's billet upper and lower links. Hit the trail with the confidence of knowing your suspension components are covered by ICON’s Limited Lifetime Warranty.

• Vehicle specific design for 22-23 Toyota Tundra/2023 Toyota Sequoia
• Helps to free up bind during rear suspension travel and articulation

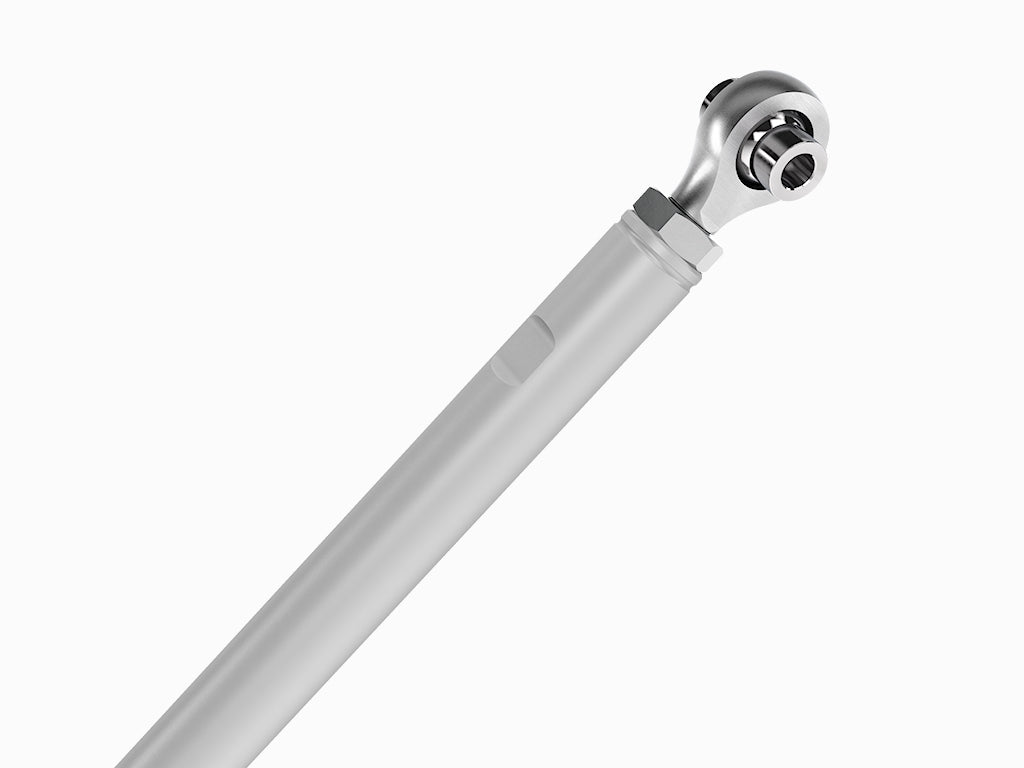

• Heavy duty PTFE-lined FK Rod Ends offer minimal deflection and maximum articulation
• On-vehicle adjustable for precise track alignment
• CNC machined 6061 aluminum bar
• Satin anodized finish to match appearance of ICON rear upper and lower links
• Covered by ICON’s Limited Lifetime Warranty

Attributes:

• GTIN: 00840103414393
• Brand Name: ICON Vehicle Dynamics
• 17: Silver
• 2339: No
• 2371: yes
• 30: Yes
• 3390: Performance
• 40: Yes
• 4417: No
• 73: Rod End Bearing
• Bushing Color: Silver
• End 1 Type: Rod End Bearing
• End 2 Terminal Type: Rod End Bearing
• Finish: Aluminum
• Material: Aluminium

Extended Information:

• Country of Origin: US
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 48.0000 x 4.0000 x 4.0000 inches
• Weight: 10.0000 lb
