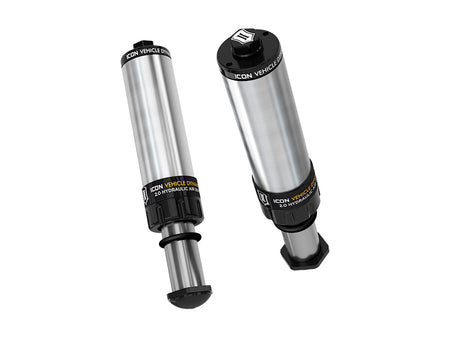

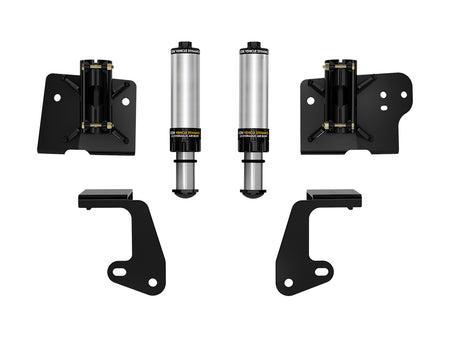

ICON 22-23 Toyota Tundra Rear Hydraulic Bump Stop Kit

This hydraulic bump stop system was developed as an OEM replacement, making installation a simple and straightforward bolt-on affair. With no major cutting, welding, or fabrication required you have the option to return the vehicle back to its stock form. The factory rubber bump stops have a limited energy absorption capacity and a rapid release of this energy upon rebound – This translates into a harsh ride and poor handling in rough terrain. ICON hydraulic bump stops absorb and release this energy in a much more controlled manner due to the digressive rebound piston valving, resulting in predictable handling and vehicle dynamics.

• Direct bolt-in to OEM bump stop location makes for an easy and straightforward install
• Fully serviceable
• Fully reversible to factory configuration with no bed cutting required
• 2.5” travel bump stop reduces rear end ‘kick’ and improves overall performance
• Position and velocity sensitive technology exponentially increases bottom-out resistance
• Vehicle specific bump stop tune to provide smooth engagement and best ride quality
• Heavy duty 1 ¼” CNC machined nitro steel shaft
• Multi stage CAD plated body for maximum corrosion resistance
• Double sealed high pressure Schrader valve
• Replaceable noise reducing striker pad

Attributes:

• GTIN: 00840103420851
• Brand Name: ICON Vehicle Dynamics
• 17: Black
• 25: 2
• 3390: Performance
• Attachment Type: Bolt On
• Bumper Material: Hydraulic
• Bumper Type: Hydraulic
• Mounting Hardware Included: yes
• Travel Length: 2.5

Extended Information:

• Country of Origin: US
• Emissions : 4
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 16.0000 x 12.0000 x 8.0000 inches
• Weight: 23.0000 lb
