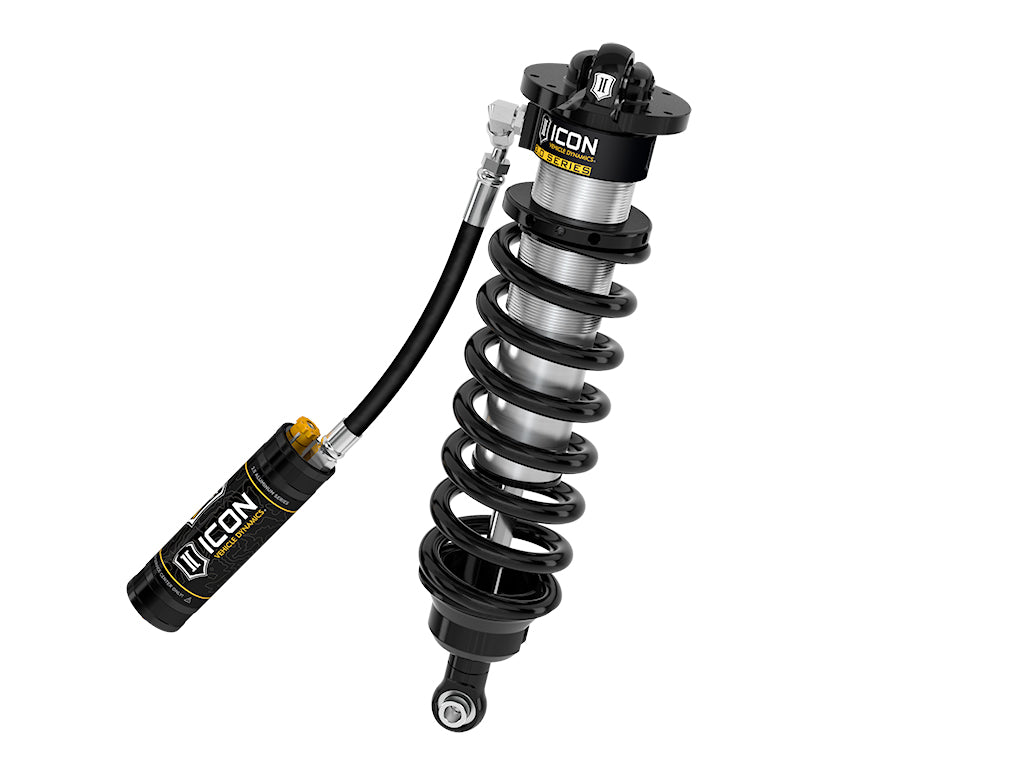

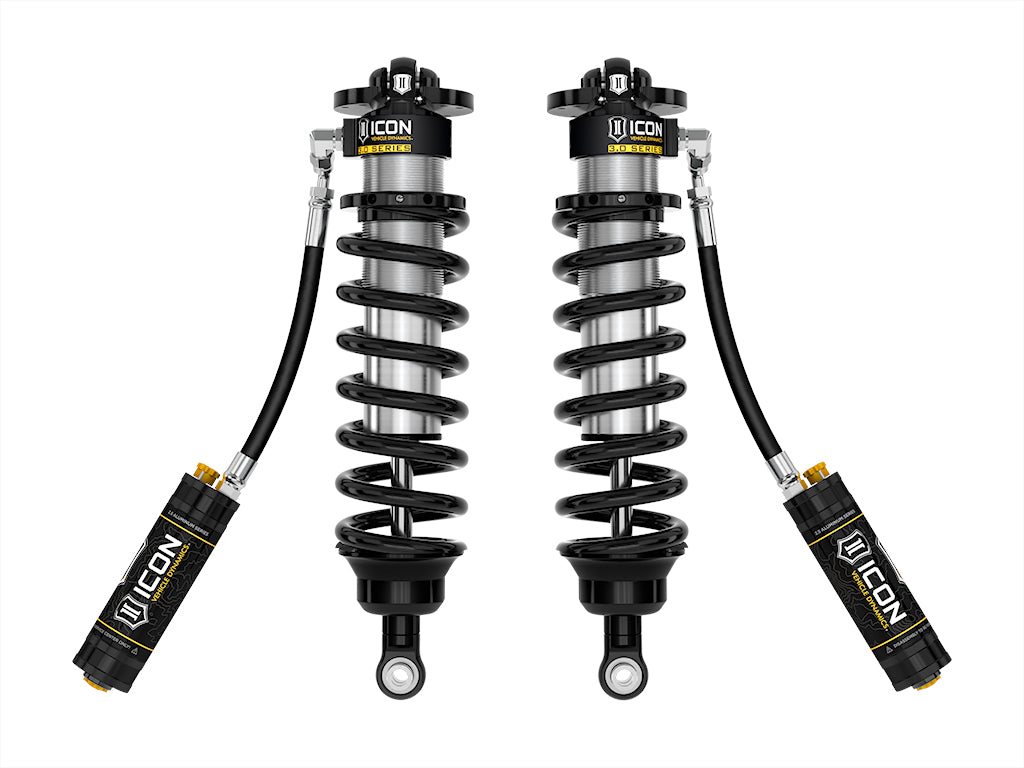

ICON 22-23 Tundra 1.25-3.25"/23 Sequoia 3-4.25" 3.0 VS CO Kit W/CDCV Pair

These 3.0 Series coilovers are designed as an OEM shock replacement, making installation a simple and straightforward bolt-on affair. Built-in ride height adjustability yields 1.25 to 3.25” of front lift height on Tundra or 3-4.25" of lift on Sequoia allowing for the fitment of larger, more aggressive wheel and tire combinations. First class ICON manufacturing processes and quality components are used to ensure these shocks function to their maximum potential without issue.

• 40% increase in front wheel travel over stock
• Fully Rebuildable and Re-tunable
• Adjustable up to 1.25-3.25" of front lift height over stock on Tundra or 3-4.25" of front lift on Sequoia
• Vehicle specific design and tuning for superior shock damping and control
• 3.0” Body diameter for increased oil volume and larger piston area
• ICON’s multi-stage, tunable hydraulic “Bump Zone” exponentially increases bottom-out resistance in the last 40% of compression travel
• Easy-to-adjust CDC Valve (Compression Damping Control) allows for end-user compression changes to suit all types of terrain and vehicle cargo configurations
• CNC machined 6061 aluminum components with a black anodized finish
• PTFE lined spherical bearings for extended longevity and minimal deflection
• 7/8” diameter induction hardened, chrome plated shock shafts

Attributes:

• GTIN: 00840103414911
• Brand Name: ICON Vehicle Dynamics
• 2917: Yes
• 408: Center of Eyelet
• 409: Top of Upper Mount Plate
• 48: Eyelet
• 49: Mounting Plate
• 50: No
• 51: Yes
• 52: 3
• Adjustable Damping: Yes
• Coil Over Springs Included: Yes
• Damping Adjustment Type: Manual
• Damping Type: Oil
• Dust Shield: No
• Grade Type: Performance
• Material: Aluminum
• Maximum Lift: 3.25
• Remote Reservoir: Yes
• Service Parts: 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL
• Shaft Diameter: 0.875
• Spring Color: Black
• Spring Material: Steel
• Spring Rate Type: Linear

Extended Information:

• Country of Origin: US
• Emissions : 4
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 33.0000 x 15.0000 x 10.0000 inches
• Weight: 75.0000 lb
