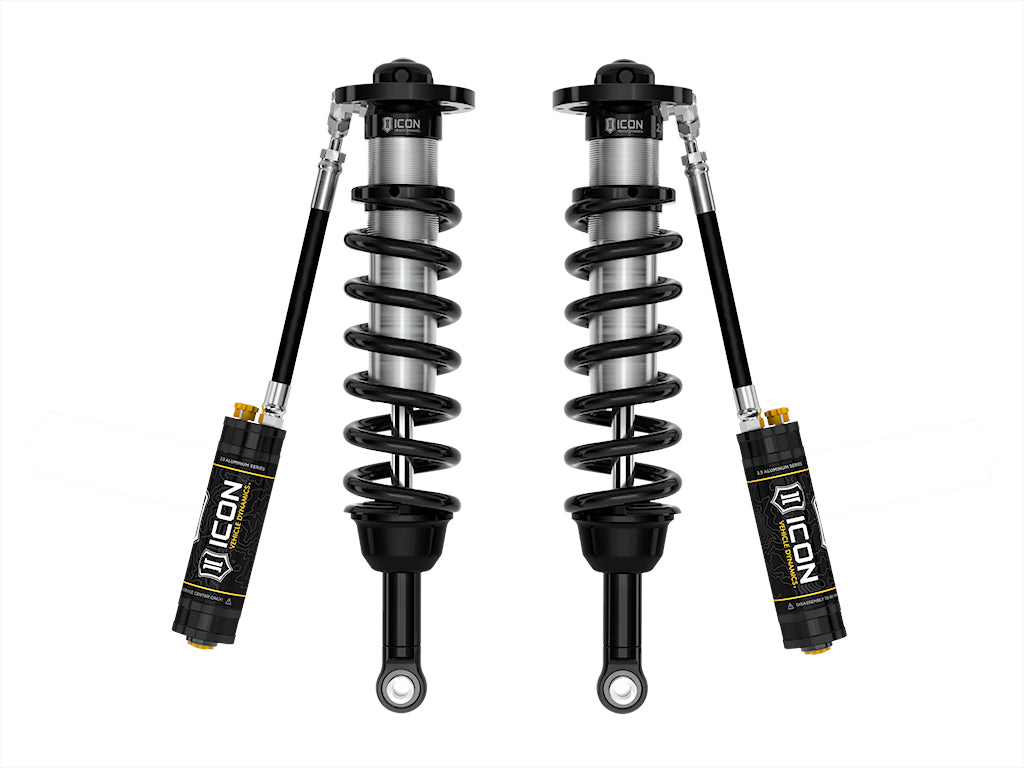

ICON 22-23 Tundra 1.25-3.5"/23 Sequoia 3-4.5" Lift 2.5 CO Kit CDCV Pair

ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover shocks are an incredible upgrade for the front end of the 2022-2023 Toyota Tundra or 2023 Toyota Sequoia. These adjustable coilovers allow up to 1.25-3.5” of lift height adjustability on Tundra or 3.5-4.5" of front lift on Sequoia, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. ICON's exclusive Compression Damping Control Valves are included for precisely dialing in your suspension performance. CDCV controls fluid flow under compression, allowing you to achieve the perfect tune whether driving on the street, slow-crawling through the rocks or mobbing across the desert at full throttle. When paired with ICON 2.0 or 2.5 Aluminum Series rear coilovers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Tundra or Sequoia.

• Increased wheel travel and improved ride quality over stock
• Fully rebuildable and re-tunable
• Vehicle specific tuned for superior shock damping and control
• Adjustable up to 1.25-3.5" of front lift height over stock on Tundra or 3-4.5" of front lift on Sequoia
• Remote reservoirs maintain cooler operating temperatures during extended off-road use
• ICON CDCV equipped for 10 settings of external compression damping adjustment
• ICON engineered coil springs
• 6061 Aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts
• FK rod end bearings for extended longevity and minimal deflection

Attributes:

• GTIN: 00840103414669
• Brand Name: ICON Vehicle Dynamics
• 2917: Yes
• 408: Center of Eylet
• 409: Top of Upper Mount Plate
• 48: Eyelet
• 49: Mounting Plate
• 50: No
• 51: Yes
• 52: 2.5
• Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
• Adjustable Damping: Yes
• Coil Over Springs Included: Yes
• Damping Type: Oil
• Dust Shield: No
• Grade Type: Performance
• Material: Aluminum
• Maximum Lift: 3.5
• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Tires: 35" x 12.50" (Minor fender trimming and modifications may be required)
• Recommended Aftermarket Wheels: 17x8.5" w/ 5.75” Backspace / 25mm Offset
• Remote Reservoir: Yes
• Service Parts: 252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT
• Shaft Diameter: 0.875
• Spring Color: Black
• Spring Material: Steel
• Spring Rate Type: Linear

Extended Information:

• Country of Origin: United States
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 27.0000 x 12.0000 x 8.0000 inches
• Weight: 58.0000 lb
