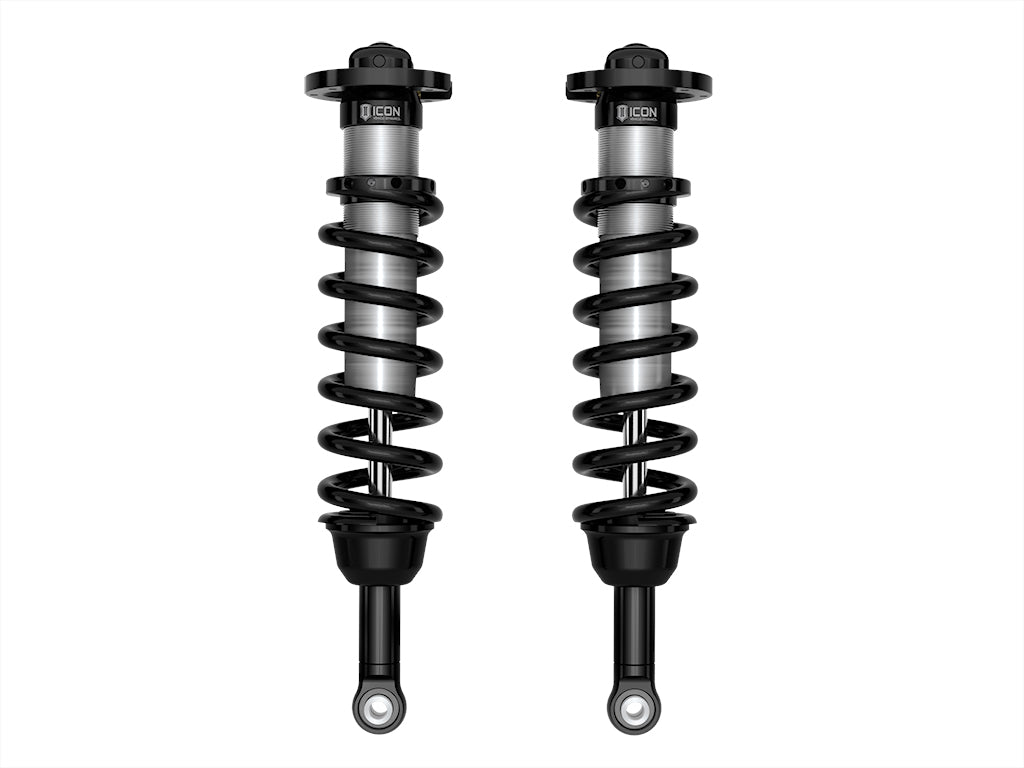

ICON 22-23 Tundra 1.25-3.5" Lift/23 Sequoia 3-4.5" Lift 2.5 Front CO Kit Pair

ICON Vehicle Dynamics V.S. 2.5 Series internal reservoir front coilover shocks are an incredible upgrade for the front end of the 2022-2023 Toyota Tundra and 2023 Toyota Sequoia. These adjustable coilovers allow up to 1.25-3.5” of lift height adjustability on a Tundra or 3-4.5" of lift height adjustability on a Sequoia, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Tundra or Sequoia.

• Increased wheel travel and improved ride quality over stock
• Vehicle specific tuned for superior shock damping and control
• Adjustable ride height offers 1.25-3.5" of front lift over stock on Tundra or 3-4.5" of front lift over stock on Sequoia
• ICON engineered coil springs
• 6061 Aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts
• FK rod end bearings for extended longevity and minimal deflection
• Fully rebuildable and re-tunable

Attributes:

• GTIN: 00840103414645
• Brand Name: ICON Vehicle Dynamics
• 2917: Yes
• 408: Center of Eylet
• 409: Top of Upper Mount Plate
• 48: Eyelet
• 49: Mounting Plate
• 50: No
• 51: Yes
• 52: 2.5
• Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
• Adjustable Damping: NO
• Coil Over Springs Included: Yes
• Damping Type: Oil
• Dust Shield: No
• Grade Type: Performance
• Material: Aluminum
• Maximum Lift: 3.5
• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Tires: 35" x 12.50" (Minor fender trimming and modifications may be required)
• Recommended Aftermarket Wheels: 17x8.5" w/ 5.75” Backspace / 25mm Offset
• Remote Reservoir: NO
• Service Parts: 252010 - 2.5 IFP REBUILD KIT
• Shaft Diameter: 0.875
• Spring Color: Black
• Spring Material: Steel
• Spring Rate Type: Linear

Extended Information:

• Country of Origin: US
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 31.0000 x 13.0000 x 7.0000 inches
• Weight: 50.0000 lb
