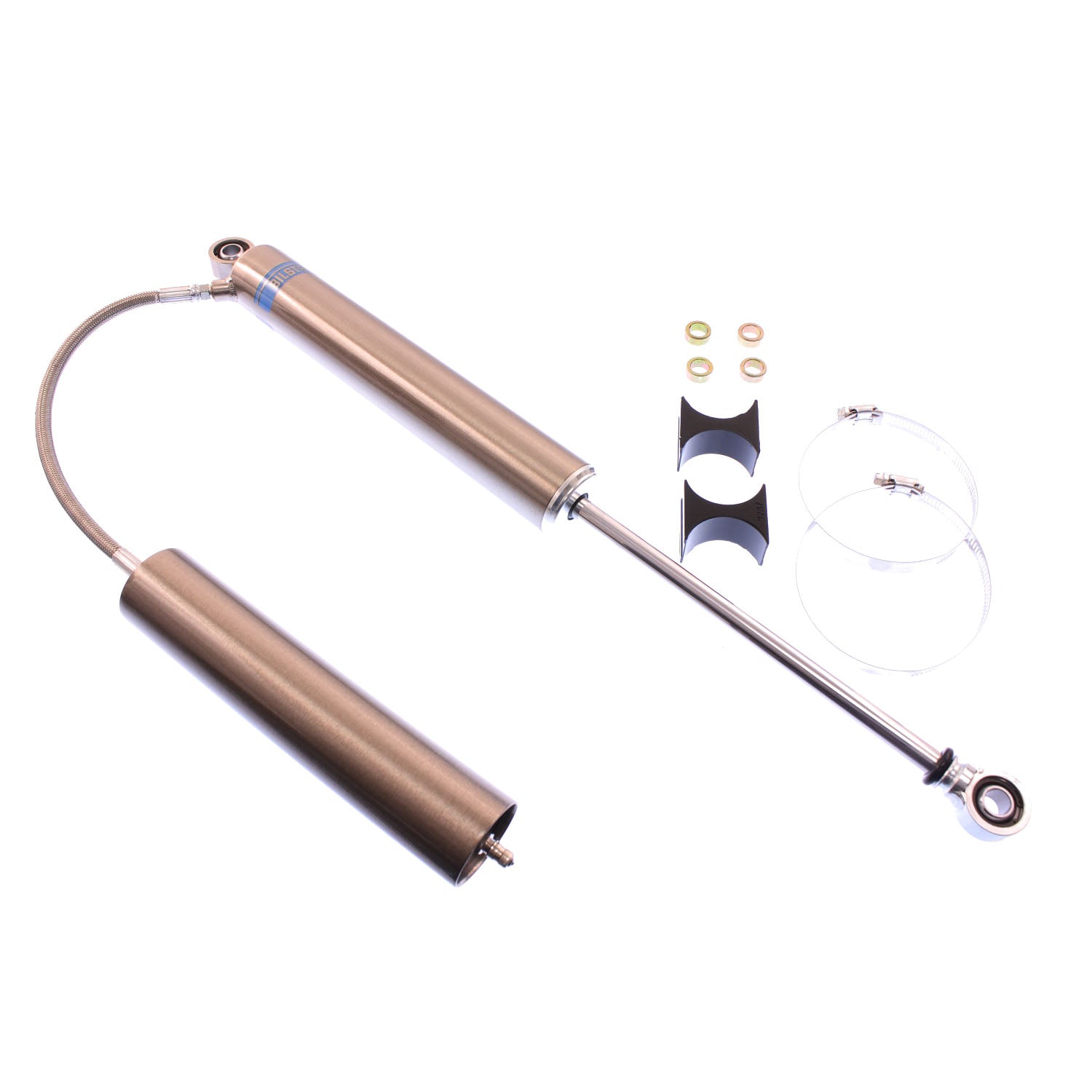

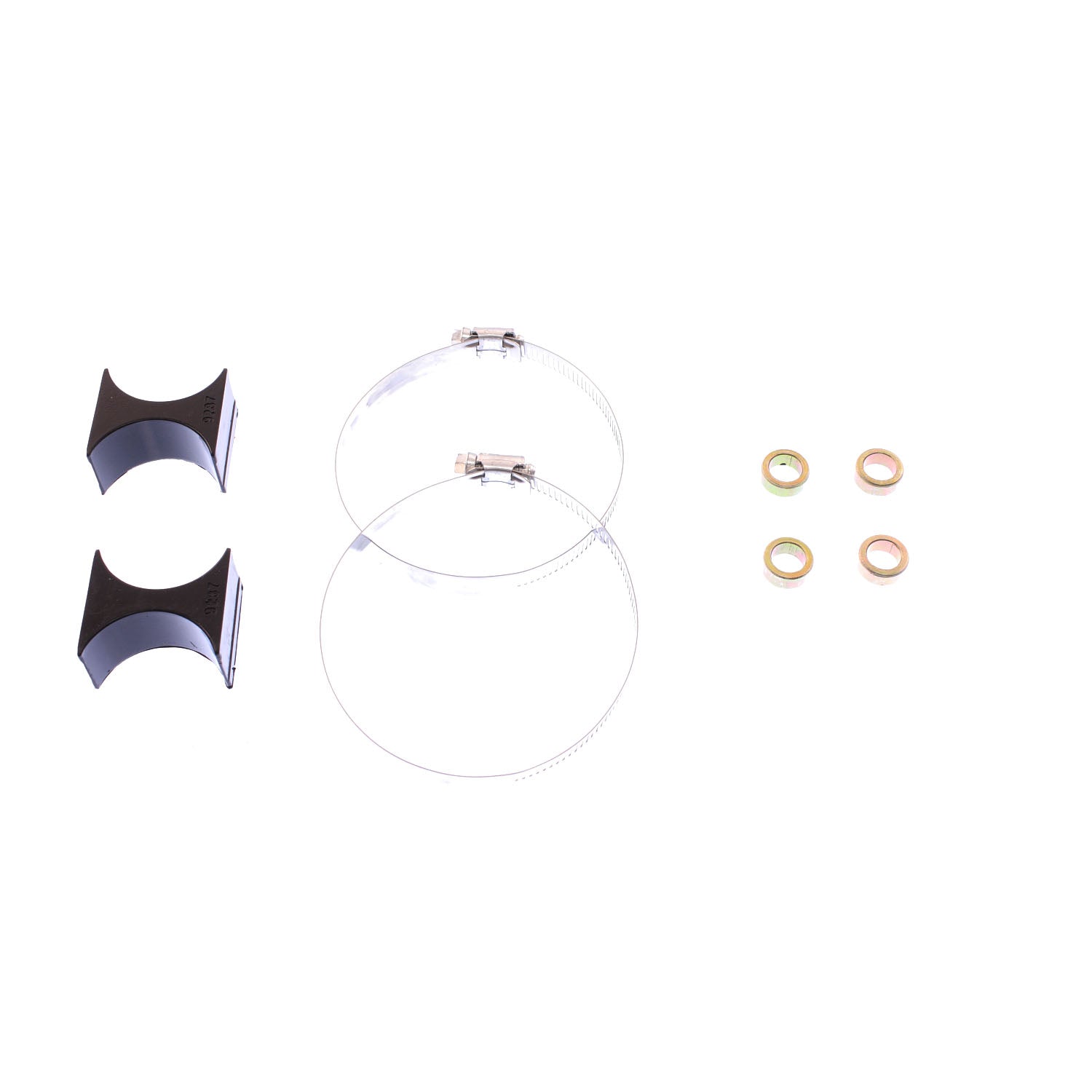

Bilstein M 7100 shock absorbers are designed for custom off-road motorsports and recreational applications. These shock absorbers are owner rebuildable and are available in remote reservoir or non-reservoir configurations. Each shock absorber is supplied with ½ inch heims and misalignment spacers for maximum durability in off-road conditions. M 7100 shock absorbers are available in a wide array of lengths and valve settings. Service components for M 7100 shock absorbers are readily available and sold separately. M 7100 shock absorbers will offer reliable performance that is customizable to meet specific demands.
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Self-adjusting deflective disc valving reacts immediately to surface changes enabling maximum vehicle control
- High-flow piston reduces harshness
Attributes:
- GTIN: 00790832510906
- Brand Name: Bilstein
- Body Design: Smooth Body (Non-Coilover)
- Body Diameter (ID): 46mm
- Collapsed Length (IN): 14.21
- Collapsed Length (IN) Rounded: 14
- Collapsed Length (MM): 360.9
- Compression @0.52m/s: 800
- Extended Length (IN): 24.31
- Extended Length (IN) Rounded: 24
- Extended Length (MM): 617.5
- Finish: Nickel Plated with Clear Powder Coat
- Internal Design: Monotube
- Lower Mount Type: 1/2in Heim
- Mount Type: Eye-to-Eye
- Optional Reservoir Clamp: N/A
- PartType: Shocks / Struts
- Rebound @0.52m/s: 3600
- Reservoir: Yes
- Segment: Motorsports
- Series: M 7100
- Spring Seat Included: No
- Upper Mount Type: 1/2in Heim
Extended Information:
- Country of Origin: US
- Emissions : CARB Eligible
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1.0
- Package UOM: EA
- Dimension: 37.0000 x 7.0000 x 2.0000 inches
- Weight: 11.3100 lb
