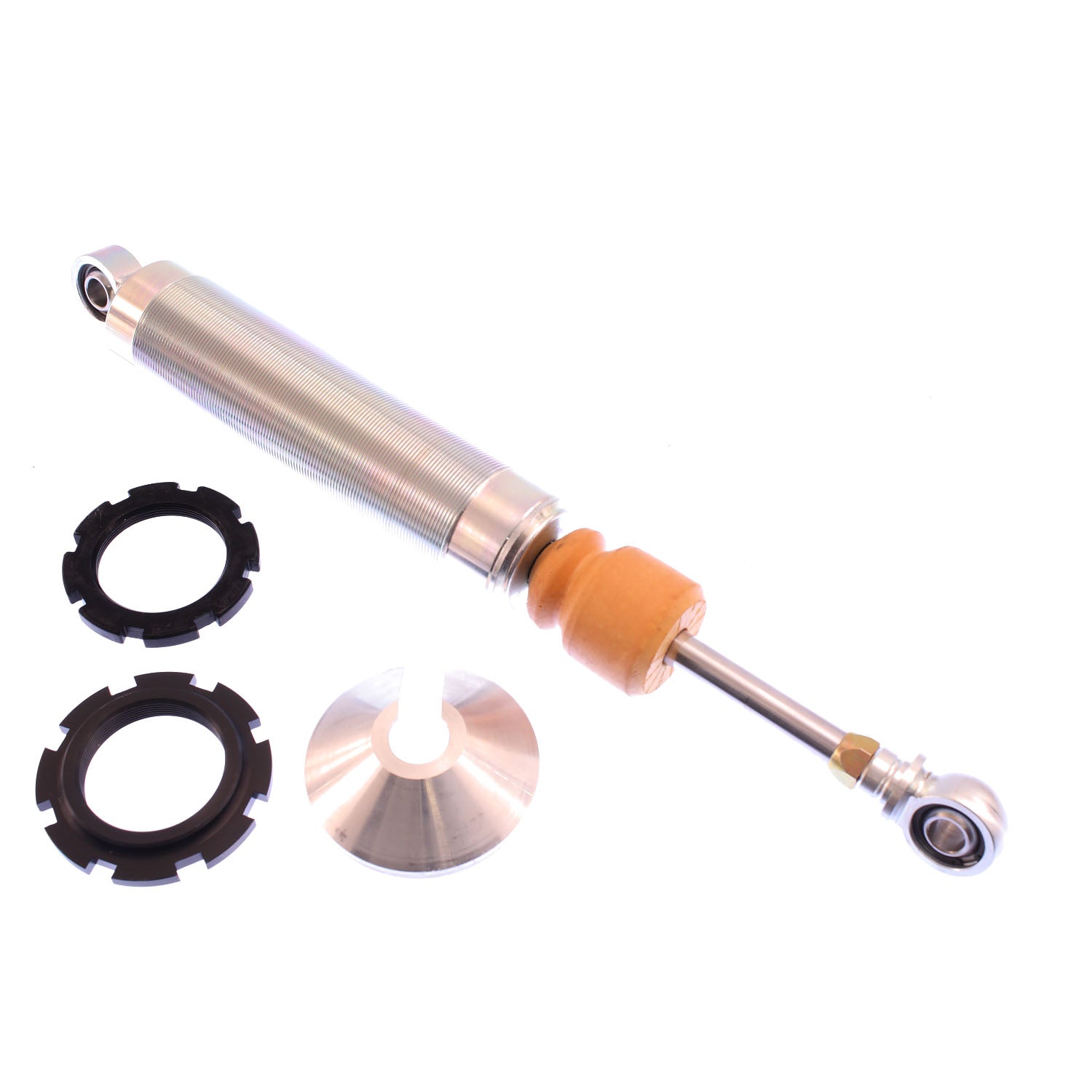

Bilstein M 7100 Classic (Coilover) is designed for custom off-road motorsports and recreational applications. These coilovers are factory rebuildable and feature a fully threaded, non-reservoir shock body. Each coilover is supplied with ½ inch heims and misalignment spacers for maximum durability in off-road conditions. M 7100 Classic (Coilover) is offered in a 10 inch travel stroke and come with 2.5 inch ID single rate spring hardware. For custom, light weight applications, M7100 Classic (Coilover) will deliver reliable performance.
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Available for standard and coilover applications in a wide variety of lengths
- Self-adjusting deflective disc valving
Attributes:
- GTIN: 00790832511842
- Brand Name: Bilstein
- Body Design: Threaded Body (Coilover)
- Body Diameter (ID): 46mm
- Collapsed Length (IN): 13.00
- Collapsed Length (IN) Rounded: 13
- Collapsed Length (MM): 330.2
- Compression @0.52m/s: Custom
- Extended Length (IN): 20.25
- Extended Length (IN) Rounded: 20
- Extended Length (MM): 514.4
- Finish: Zinc Plated
- Internal Design: Monotube
- Lower Mount Type: 1/2in Heim
- Mount Type: Eye-to-Eye
- Optional Reservoir Clamp: N/A
- PartType: Shocks / Struts
- Rebound @0.52m/s: Custom
- Reservoir: No
- Segment: Motorsports
- Series: M 7100 Classic (Coilover)

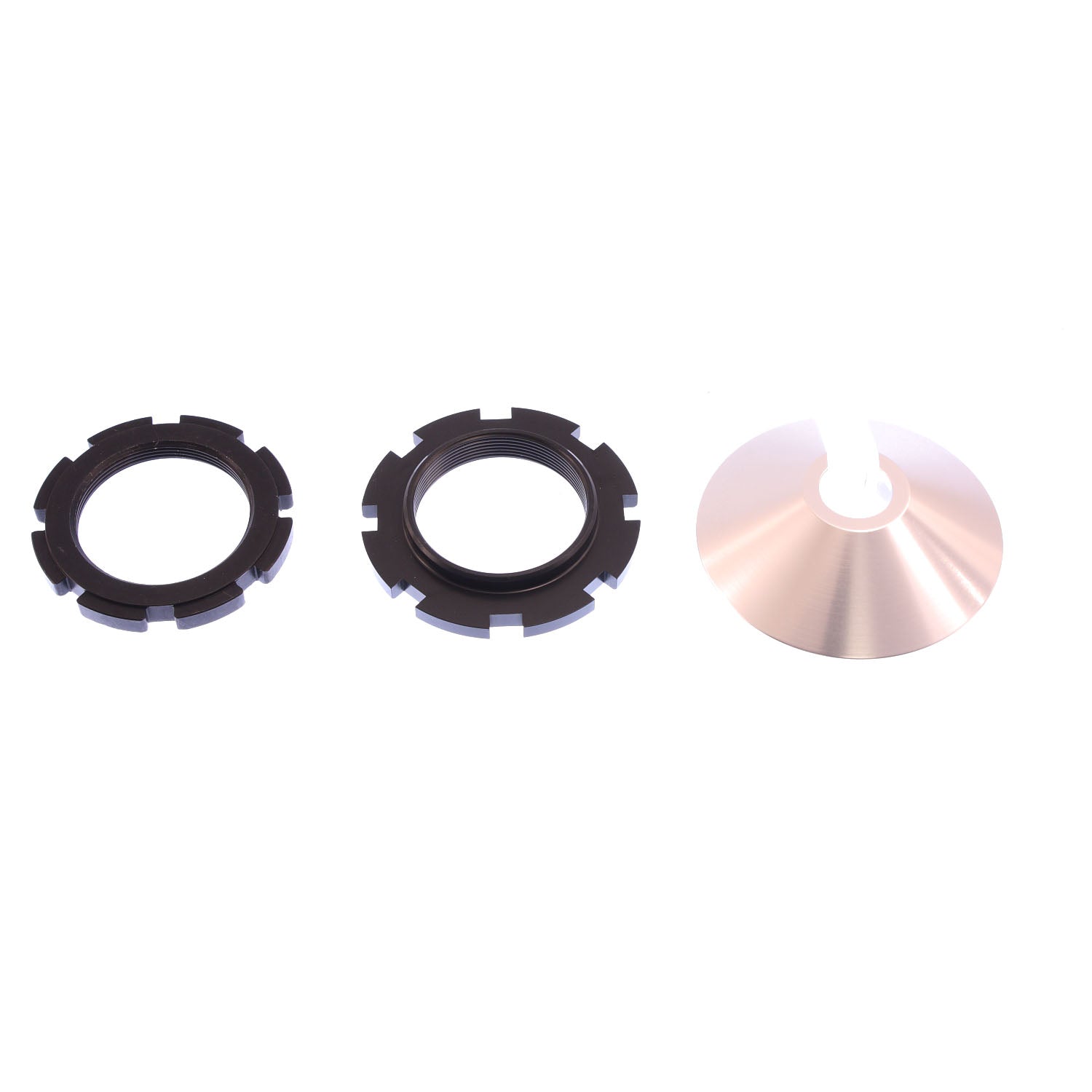

- Spring Seat Included: Yes
- Upper Mount Type: 1/2in Heim
Extended Information:
- Country of Origin: United States
- Emissions : 1
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1.0
- Package UOM: EA
- Dimension: 26.0000 x 2.7500 x 2.5000 inches
- Weight: 4.6300 lb
