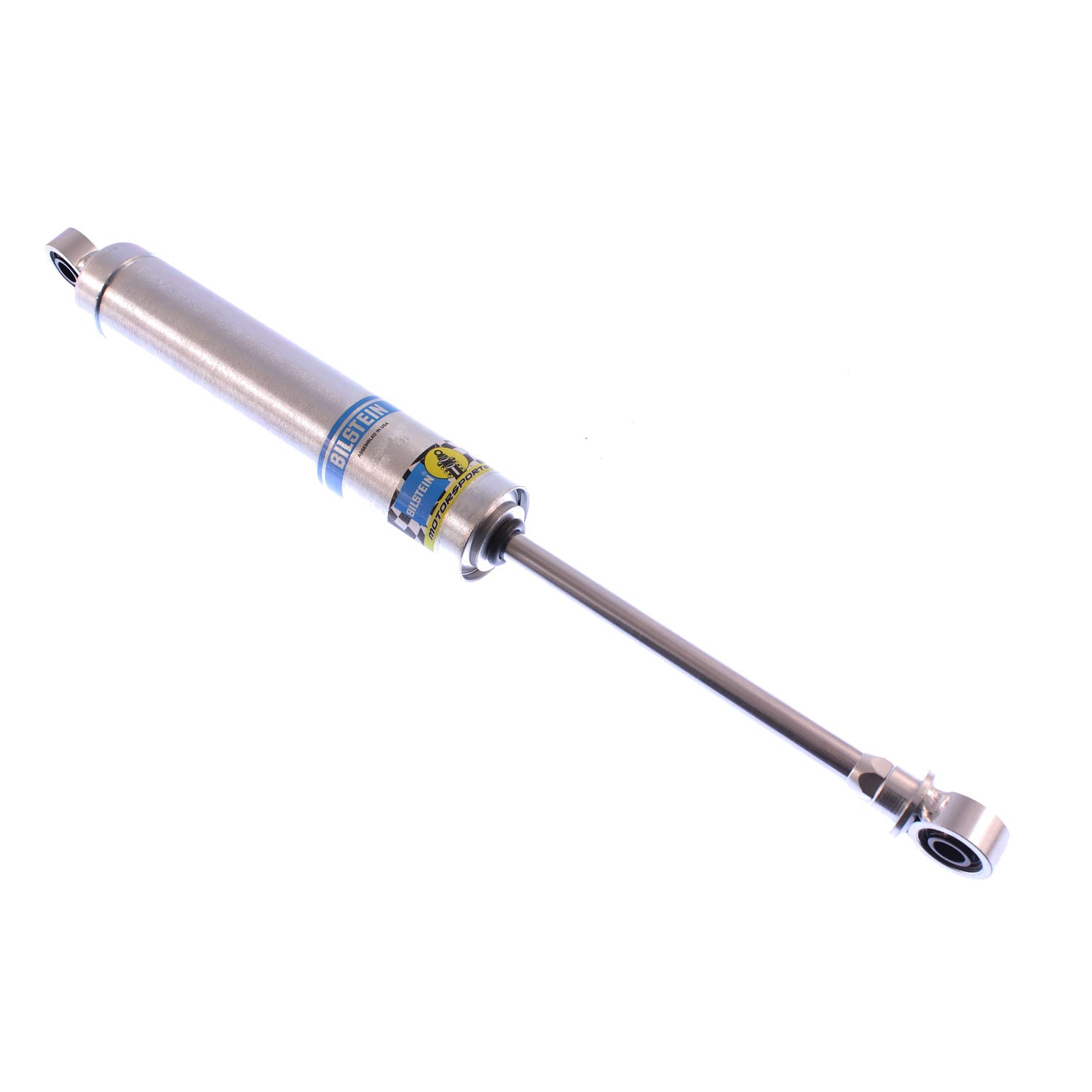

Bilstein SL Series shock absorbers feature a 46mm piston, steel construction, and a smooth body designed for motorsports applications. These shock absorbers are available in a variety of lengths, valve settings and can be converted to a coilover design (kit sold separately). Also available as dry kits (partially assembled wtih no valving or gas) that are geared towards giving tuners the versatility to build to their unique needs. SL Series shock absorbers are ideal for racers whose sanctioning rules do not allow or require rebuild capability.
- Plated steel body for durability and superior heat dissipation
- 46mm piston design for maximum damping control
- Standard 1/2” graphite heims
Attributes:
- GTIN: 00790832510821
- Brand Name: Bilstein
- Adjustable Damping: Non-Adjustable
- Body Design: Smooth Body (Non-coilover)
- Body Diameter (ID): 46mm
- Body Material: Steel
- Boot Included: No
- Collapsed Length (IN): 12.05
- Collapsed Length (MM): 306.0
- Extended Length (IN): 18.11
- Extended Length (MM): 460.0
- Finish: Zinc Plated
- Internal Design: Monotube
- Lower Mount Type: 1/2in Heim
- PartType: Shocks / Struts
- Piston Type: Custom
- Segment: Motorsports
- Series: SL Series
- Spring Seat Included: No
- Upper Mount Type: 1/2in Heim
- Valving Identifier: Custom
Extended Information:
- Country of Origin: US
- Emissions : CARB Eligible
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1.0
- Package UOM: EA
- Dimension: 26.0000 x 2.7500 x 2.5000 inches
- Weight: 3.8600 lb
