ICON Vehicle Dynamics

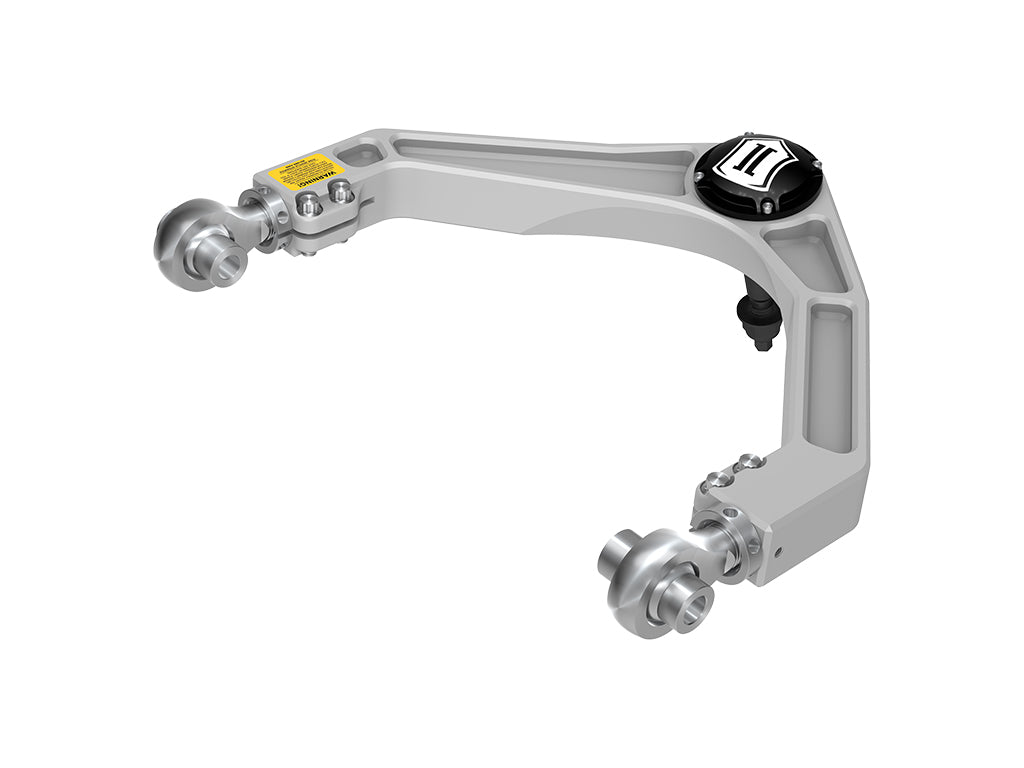

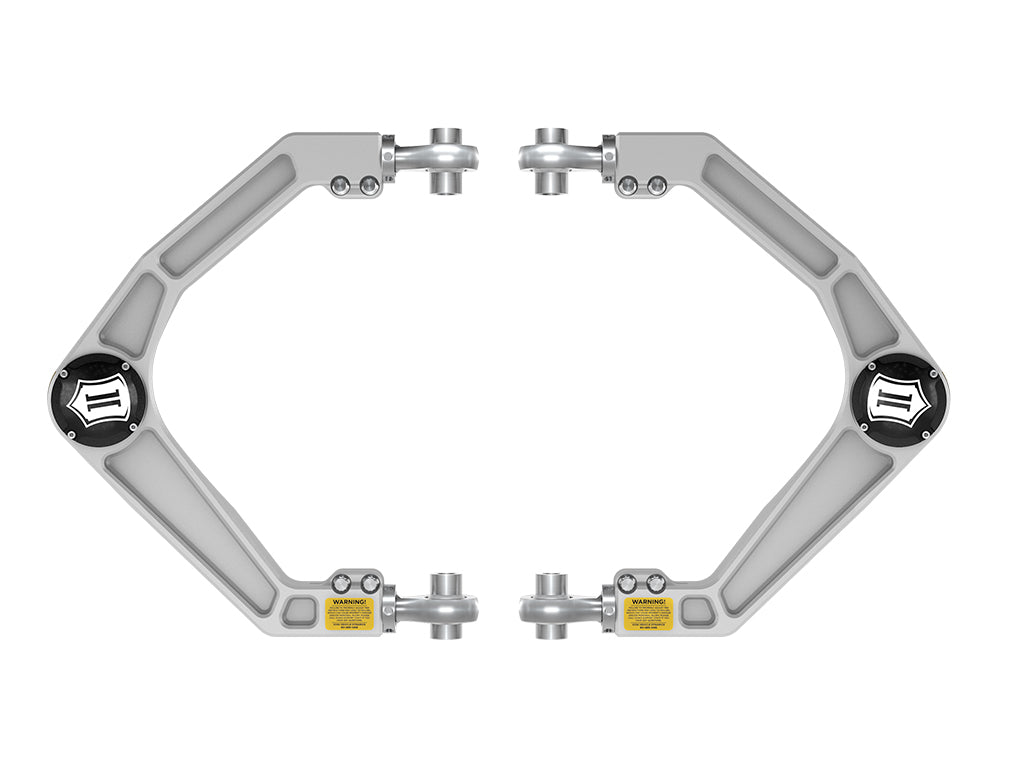

ICON 2021-2023 Ram 1500 TRX Billet Front Upper Control Arm W/ Delta Joint Pro Kit

SKU: FRDK-218561DJ Barcode: 00840103429564
No reviews
For purchase and installation, please contact our store.

Product details

  • Type Suspension Control Arm Kit
  • SKU FRDK-218561DJ
  • Barcode 00840103429564

Use this text to encourage communication or promote sharing on social networks.

You can also add links

Description
Delta Joint PRO is ICON's innovative new suspension articulation joint which combines the durability and longevity of factory style ball joints with performance and strength that exceeds traditional motorsports-style ball joints. Strength and durability are improved by using a larger ball with 56% more bearing surface than our standard Delta Joint, along with improved lubrication sealing. But improved performance is at the heart of the Delta Joint PRO, with a full 90 degrees of articulation, from one extreme to the other. This represents a 14% improvement in range of motion, over the highly capable original Delta Joint, allowing for maximum bind-free suspension movement through the complete range of travel. The Delta Joint PRO is built to take the abuse, with a chromoly ball and shaft that has a bearing surface hardened to Rockwell C 55. The replaceable races are made of graphite-impregnated sintered metal, machined to the finest tolerance to provide a flawless, metal-to-metal bearing interface. We also redesigned the lubrication system, with lubricant channels that distribute grease more efficiently without extending past the bearing seal.
  • CNC machined 6061 billet aluminum construction with satin anodized finish
  • Corrects suspension geometry and allows for proper wheel alignment on lifted vehicles
  • Quick, precise, on-vehicle adjustment for both caster and camber using ICON's Double Adjuster System
  • Patented Delta Joint PRO (U.S. Pat. 10,731,700) allows maximum articulation without binding
  • Delta Joint PRO is 100% serviceable and rebuildable
  • FK Rod Ends at chassis pivots for strength and precision driving characteristics
  • Built in O-ring sealed dust cover cap

Attributes:

  • Brand Name: ICON Vehicle Dynamics
  • GTIN: 00840103429564
  • AAP_UDA_12: EA
  • AAP_UDA_22: 1
  • AAP_UDA_4: 55
  • Add-On Part: 191013 - NIPPLE GREASING ADAPTER KIT
  • Adjustable Control Arm: yes
  • California Prop 65 Warning: Yes
  • Construction: Billet
  • Control Arm Construction: Billet
  • Finish: Anodized
  • OEM Wheels & Tires Fitment: Yes
  • Quantity: 2
  • Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
  • Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5” Backspace / 0mm Offset
  • 10: Aluminum
  • 30: Yes
  • 40: Yes
  • 73: Rod End Bearing
  • 2330: Yes
  • 2339: yes
  • 2354: Performance
  • 2371: Yes
  • 2382: Press In
  • 2383: Threaded
  • 2384: Yes
  • 2389: Aluminum
  • 3390: Performance
  • 4888: Gray

Extended Information:

  • Country of Origin: US
  • Emissions : Emissions Compliance Exempt
  • Life Cycle Status: Available To Order

Packing Information:

  • Quantity of Each: 1.0
  • Package UOM: EA
  • Dimension: 15.0000 x 16.0000 x 6.0000 inches
  • Weight: 20.0000 lb
