ICON Vehicle Dynamics

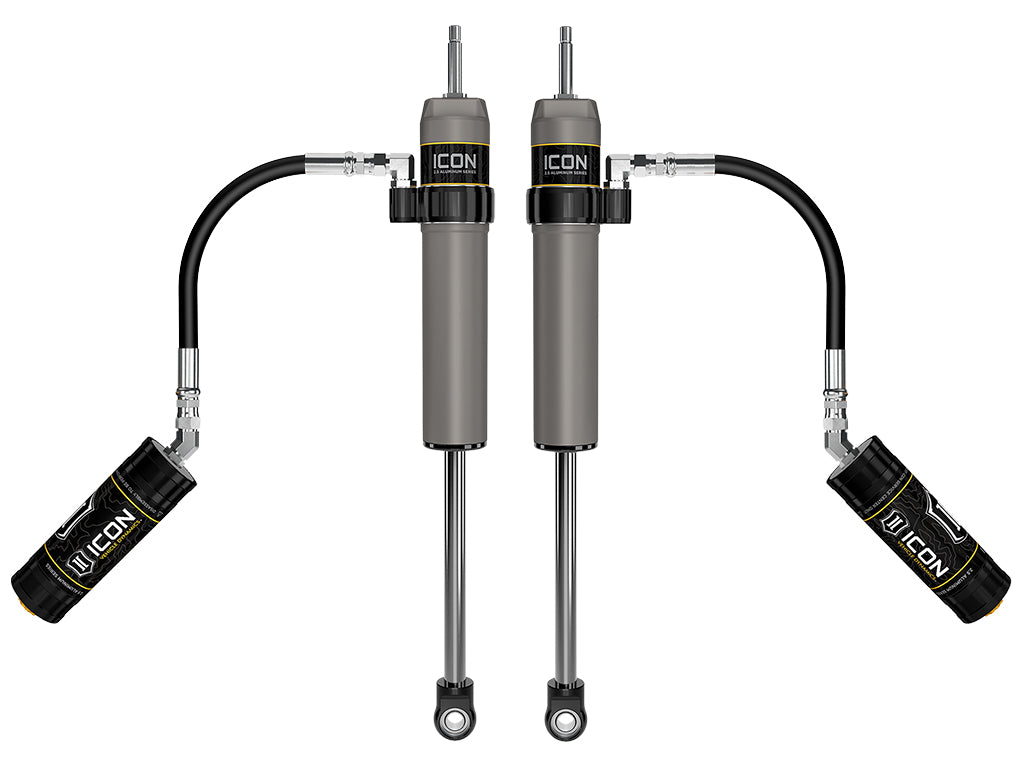

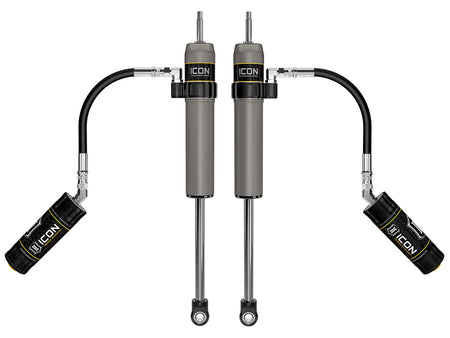

ICON 2024 Toyota Tacoma 0-1” Lift Rear V.S. 2.5 Aluminum Series Remote Reservoir Shocks Pair

SKU: FRDK-57808P Barcode: 00840103428871
No reviews
For purchase and installation, please contact our store.

Product details

  • SKU FRDK-57808P
  • Barcode 00840103428871

Use this text to encourage communication or promote sharing on social networks.

You can also add links

Description
ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Aluminum Series shocks are fully rebuildable and re-tunable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061-billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. If you are looking for a more user defined tune, consider looking into the Compression Damping Control Valve (CDCV) shocks.
  • ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
  • PTFE lined spherical bearings and application specific mounting hardware
  • 6061 aircraft grade aluminum CNC machined components
  • Fully rebuildable and re-tunable
  • Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
  • One-piece, hard anodized, impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
  • Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
  • Nitrogen charged monotube design with remote reservoir
  • One-piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
  • All ICON 2.5 Series Piggyback and Remote Reservoir shocks can be upgraded to ICON’s Compression Damping Control Valve (CDCV)
  • 7/8” diameter induction hardened, chrome plated shock shaft
  • Rubber dust boot included for added shaft protection

Attributes:

  • Brand Name: ICON Vehicle Dynamics
  • GTIN: 00840103428871
  • AAP_UDA_12: EA
  • AAP_UDA_22: 1
  • AAP_UDA_4: 55
  • Add-On Part: 252012 - -4 TO -10 HOSE SHIELD KIT
  • Adjustable Damping: No
  • California Prop 65 Warning: Yes
  • Cylinder Color: Grey
  • Cylinder Diameter: 2.5
  • Cylinder Material: Aluminum
  • Damping Type: Oil
  • External Reservoir: Yes
  • Service Parts: 252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT
  • Shaft Diameter: 0.875
  • Shaft Material: Chrome
  • 30: Yes
  • 48: Eyelet
  • 49: Stem
  • 50: Yes
  • 51: Yes
  • 359: 2.5
  • 408: Center of Eylet
  • 409: Shoulder of Stem
  • 905: 2.25
  • 3390: Performance

Extended Information:

  • Country of Origin: US
  • Emissions : Emissions Compliance Exempt
  • Life Cycle Status: Available To Order

Packing Information:

  • Quantity of Each: 1.0
  • Package UOM: EA
  • Dimension: 39.0000 x 15.0000 x 9.0000 inches
  • Weight: 32.0000 lb
